QTS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler KT725 (SN: 315000000 - 315999999) (2015) Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler KT725

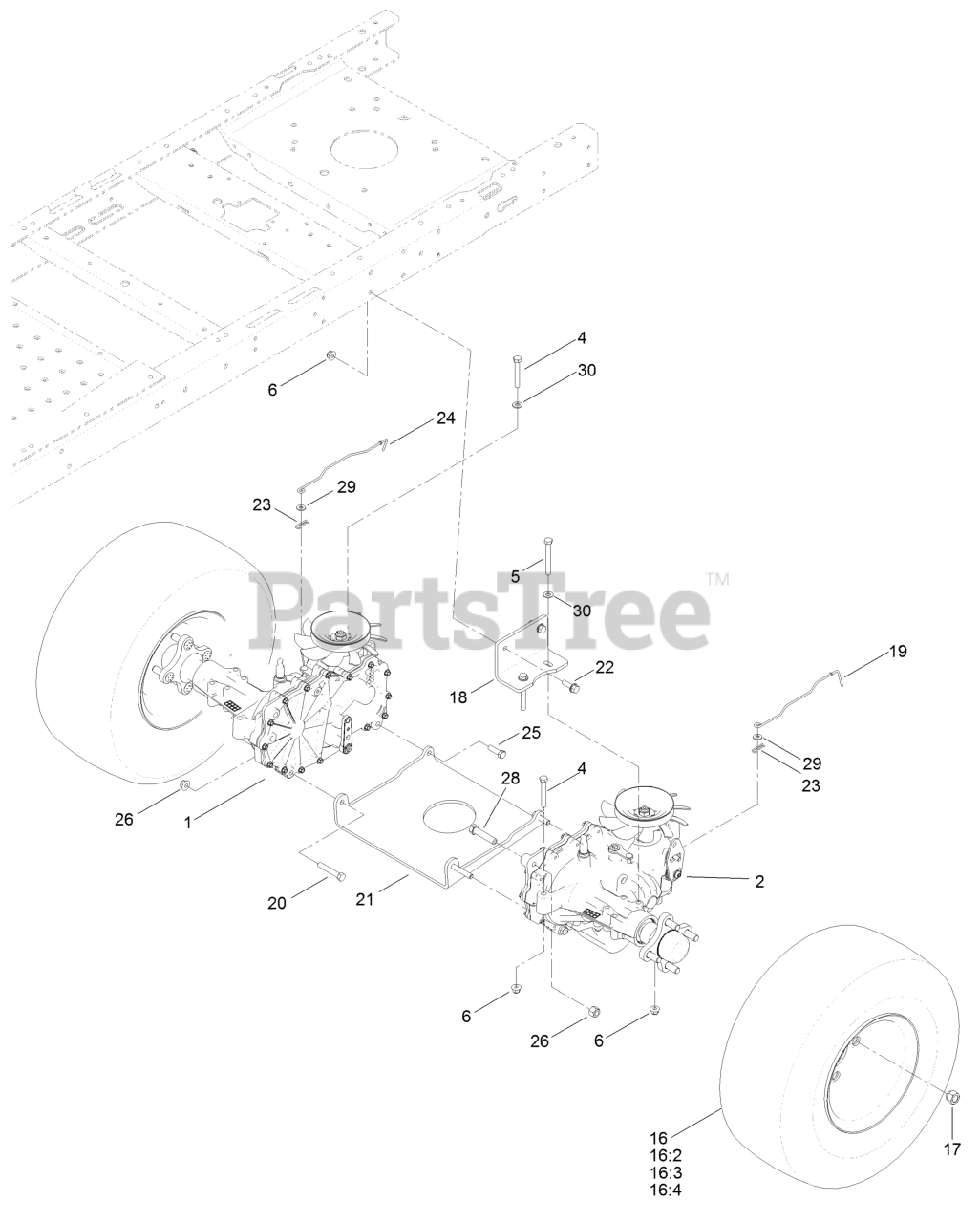

Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

  • Title

1

Exmark 130-6961

RH HYDRO TRANSMISSION ASM
(Superseded to 140-5191)

$1685.99

$

Usually ships in 3-6 days

0

2

Exmark 130-6960

LH HYDRO TRANSMISSION ASM
(Superseded to 140-5190)

$1880.99

$

Usually ships in 3-6 days

0

4

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

5

Exmark 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 131-3673

2 PLY TIRE AND WHEEL ASM

$291.99

$

Usually ships in 3-6 days

0

16:2

Exmark 131-3680

TIRE-2 PLY

$202.99

$

Usually ships in 3-6 days

0

16:3

Exmark 232-27

Stem-Valve

$

$

Not available

16:4

Exmark 93-3893

TUBE-INNER

Note: Not illustrated

$88.99

$

Usually ships in 3-6 days

0

17

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 121-0745-01

MOUNT-HYDRO

$37.99

$

Usually ships in 3-6 days

0

19

Exmark 130-7048

ROD-BYPASS, LH

$10.99

$

Usually ships in 3-6 days

0

20

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Exmark 130-0718-01

PLATE-CROSS, HYDRO

$80.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Exmark 130-7047

ROD-BYPASS, RH

$10.99

$

Usually ships in 3-6 days

0

25

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
