R 8035 AE - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) STARTER GROUP MODELS R8035AE Parts Diagram

Walk-Behind Mower

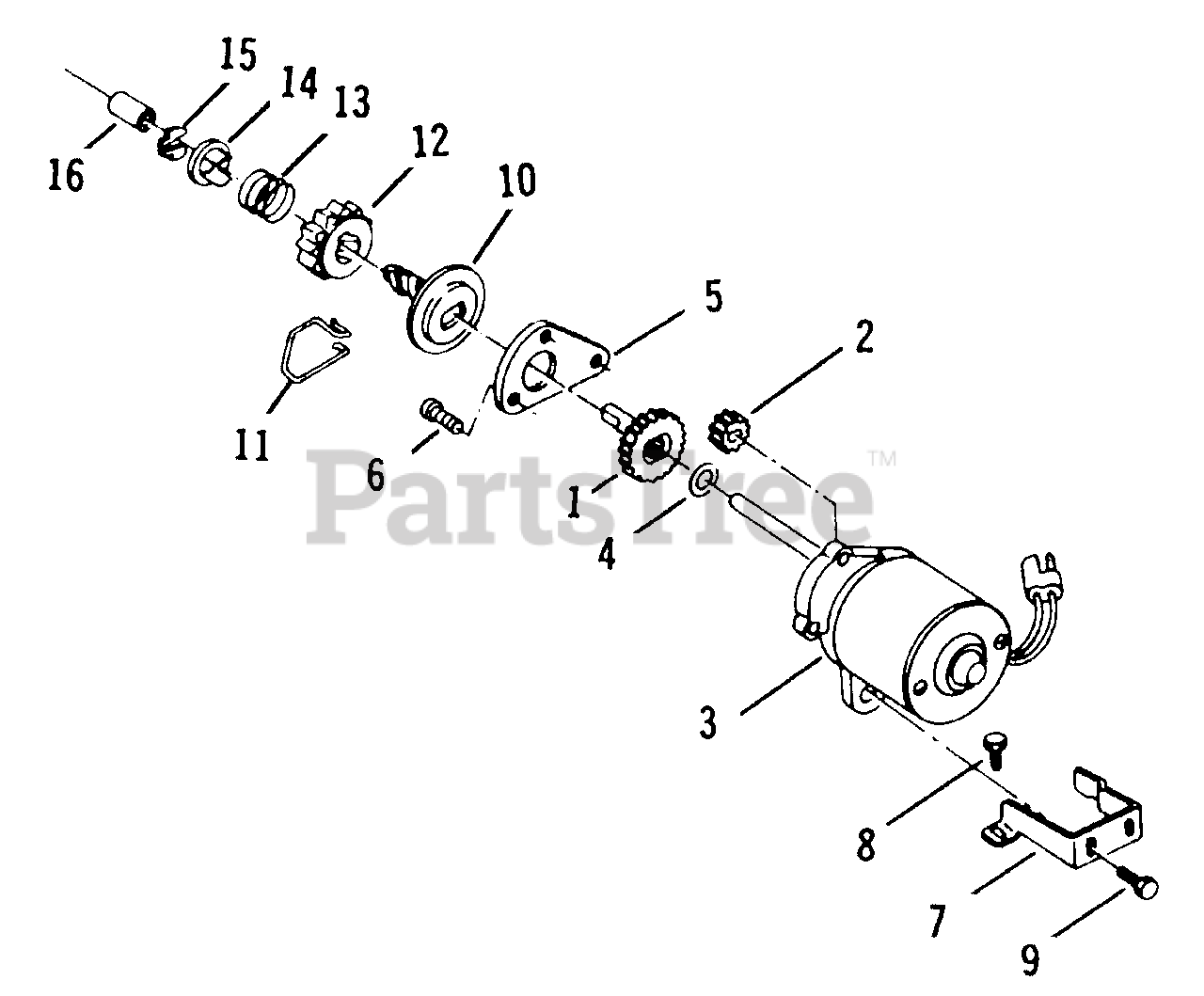

STARTER GROUP MODELS R8035AE Parts Diagram

  • Title

Lawn-Boy 682806

Electric Starter Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$909.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 611386

Gear-Driven

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611385

Pinion-Motor Shaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682807

Motor Housing and Pin Ass'y.
(Superseded to 682806)

Note: Important Note: Replacement parts may not always be available in matching colors.

$909.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 609568

Washer
(Superseded to 252-98)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 611387

Plate-Gear Cover
(Superseded to 613517)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609130

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611339

Bracket-Starter M tg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 611338

Bracket-Starter M tg.

Note: Important Note: Replacement parts may not always be available in matching colors. Used for Model R8035AE.

$

$

Not available

8

Lawn-Boy 609580

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 609579

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 682809

Pinion, Spring and Clutch Ass'y.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609229

Spring-Drag

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 4 left!

0

12

Lawn-Boy 610258

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 610257

Spring-Pinion Return

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 609565

Washer-Pinion Stop
(Superseded to 613451)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608622

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 609572

Sleeve

Note: Important Note: Replacement parts may not always be available in matching colors.

$43.99

$

Usually ships in 3-6 days

0
