R2-12OE02 (212-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) 12hp Engine Air Cleaner Assembly Parts Diagram

Garden Tractor

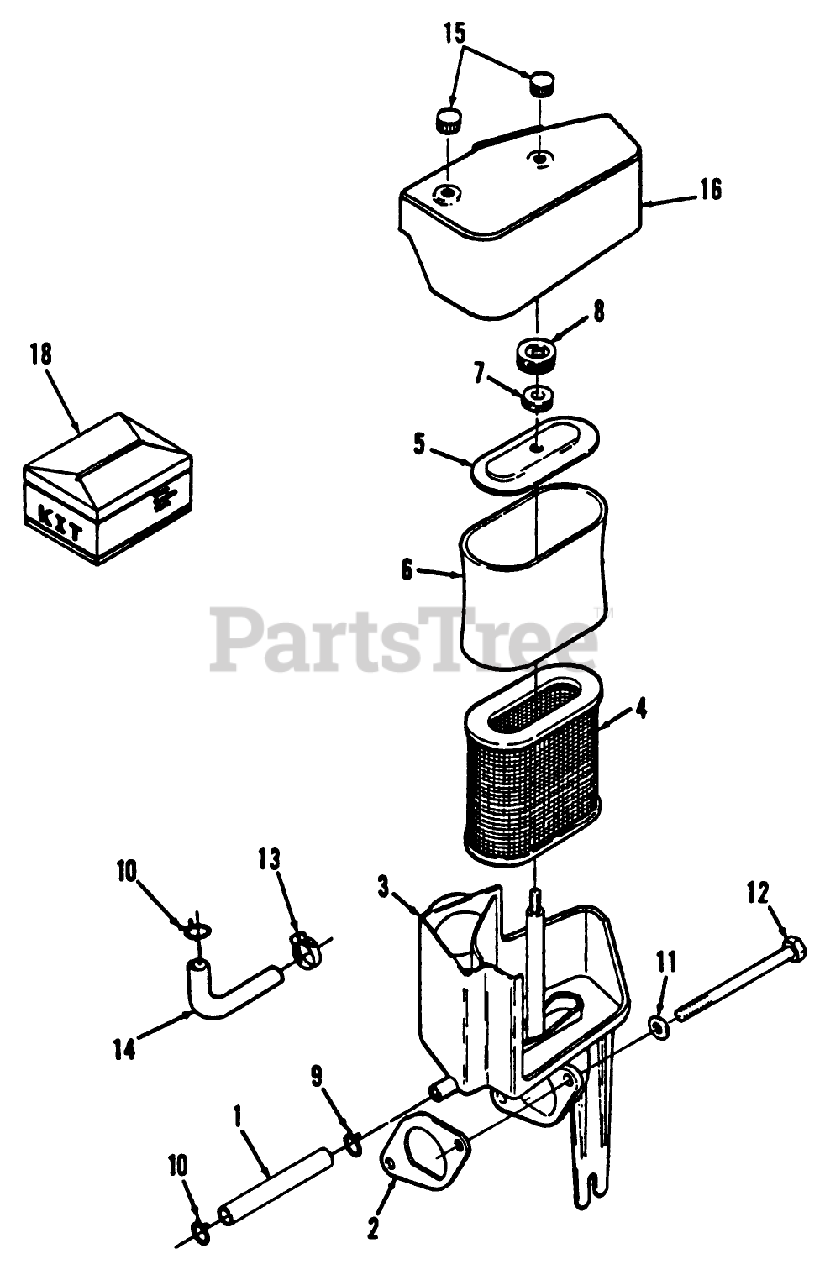

12hp Engine Air Cleaner Assembly Parts Diagram

  • Title

1

Toro NN10693

DISCONTINUED

$

$

Not available

2

Toro NN10694

See Supercession: 93-9816
(Superseded to 93-9816)

$

$

Not available

3

Toro NN10899

ADAPTER

$

$

Not available

4

Toro NN10872

AIR CLEANER ELEMENT

$

$

Not available

5

Toro NN10697

DISCONTINUED

$

$

Not available

6

Toro NN10698

WRAPPER-ELEMENT

$48.99

$

In Stock, only 1 left!

0

7

Toro NN10704

DISCONTINUED

$

$

Not available

8

Toro NN10703

DISCONTINUED

$

$

Not available

9

Toro 92-0931

DISCONTINUED

$

$

Not available

10

Toro NN10812

DISCONTINUED

$

$

Not available

11

Toro 82-1350

WASHER-FLAT

$

$

Not available

12

Toro NN10702

HHCS-M8 X 100MM

$

$

Not available

13

Toro NN10795

CLAMP-HOSE

$6.49

$

Usually ships in 3-6 days

0

14

Toro NN10796

DISCONTINUED

$

$

Not available

15

Toro NN10700

DISCONTINUED

$

$

Not available

16

Toro NN10799

DISCONTINUED

$

$

Not available

18

Toro 79-5910

KIT-AIR CLEANER

$367.99

$

Usually ships in 3-6 days

0
