R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) Front Axle Assembly Parts Diagram

Yard Tractor

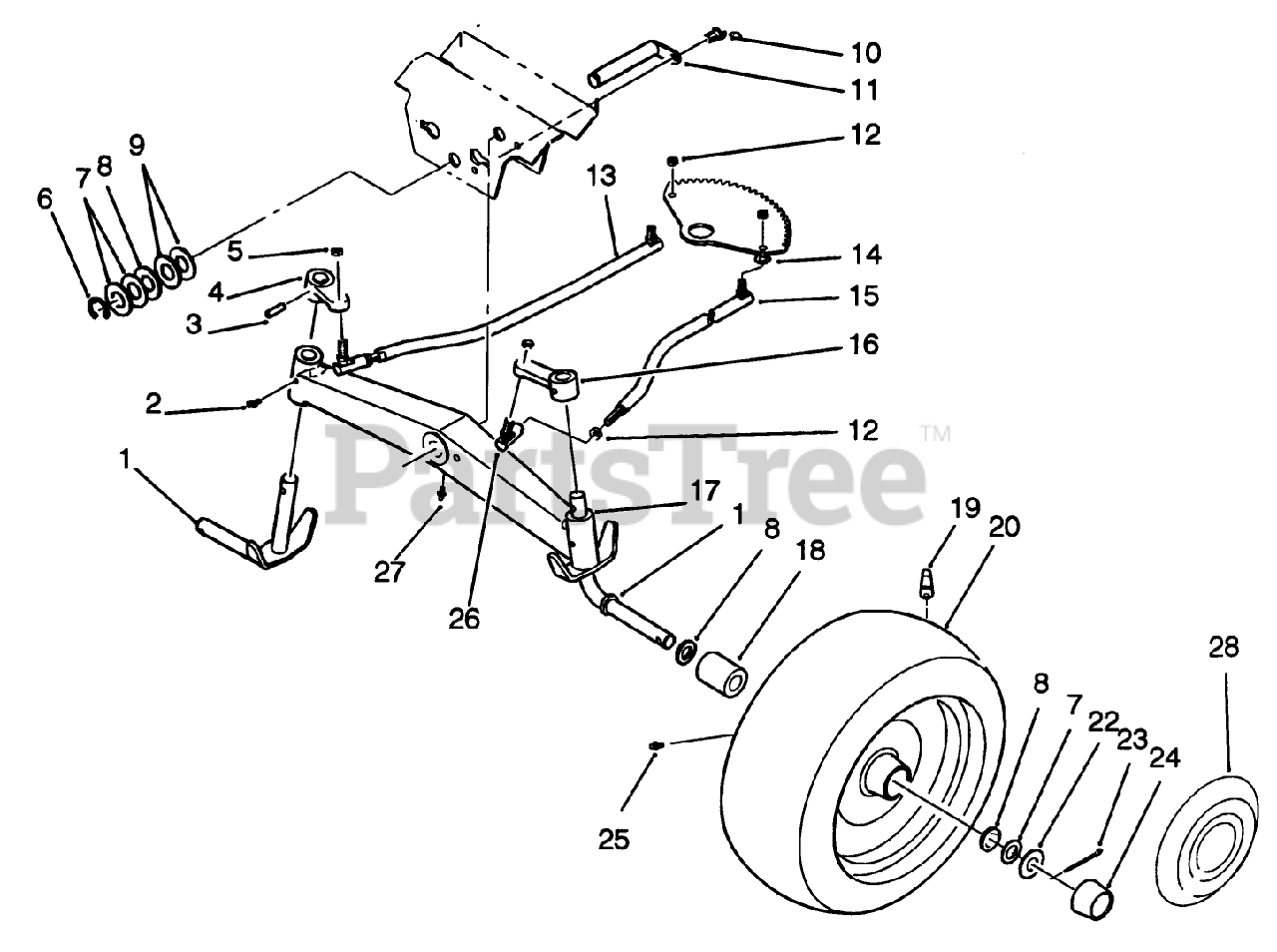

Front Axle Assembly Parts Diagram

  • Title

1

Toro 78-2601

See Supercession: 78-2601-03
(Superseded to 78-2601-03)

$124.99

$

In Stock, only 1 left!

0

2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

3

Toro 933270

PIN

$6.99

$

In Stock, Qty 6

0

4

Toro 78-1940

See Supercession: 78-1940-03
(Superseded to 78-1940-03)

$

$

Not available

5

Toro 915085

See Supercession: 3220-3
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 20+

0

6

Toro 5618

E-RING

$1.49

$

In Stock, only 3 left!

0

7

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

8

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

9

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

10

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

11

Toro 115484

DISCONTINUED

$

$

Not available

12

Toro 915002

See Supercession: 9150026
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

13

Toro 78-8450

See Supercession: 92-6883
(Superseded to 92-6883)

$205.99

$

In Stock, only 1 left!

0

14

Toro 920038

See Supercession: 3256-3
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

15

Toro 78-8460

See Supercession: 92-6884
(Superseded to 92-6884)

$205.99

$

In Stock, only 2 left!

0

16

Toro 78-1950

See Supercession: 78-1950-03
(Superseded to 78-1950-03)

$137.99

$

Usually ships in 3-6 days

0

17

Toro 78-7960

See Supercession: 78-7960-01
(Superseded to 78-7960-01)

$

$

Not available

18

Toro 110513

BEARING-WHEEL

$25.99

$

In Stock, Qty 20+

0

19

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

20

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available

22

Toro 111952

WASHER WHEEL

$7.99

$

In Stock, only 2 left!

0

23

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

24

Toro 111951

HUBCAP

$18.99

$

In Stock, Qty 6

0

25

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

26

Toro 78-2900

ASS'Y-TIE ROD*

$86.99

$

In Stock, Qty 14

0

27

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

28

Toro 114427

DISCONTINUED

$

$

Not available

Toro 78-8450

See Supercession: 92-6883
(Superseded to 92-6883)

Note: Not illustrated

$205.99

$

In Stock, only 1 left!

0

Toro 78-8460

See Supercession: 92-6884
(Superseded to 92-6884)

Note: Not illustrated

$205.99

$

In Stock, only 2 left!

0

Toro 78-1660

See Supercession: 93-9801
(Superseded to 93-9801)

Note: Not illustrated

$280.99

$

Usually ships in 3-6 days

0
