RAE702GEM44300 - Exmark 44" Radius E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

44" Radius E-Series Zero-Turn Mower, Exmark 702

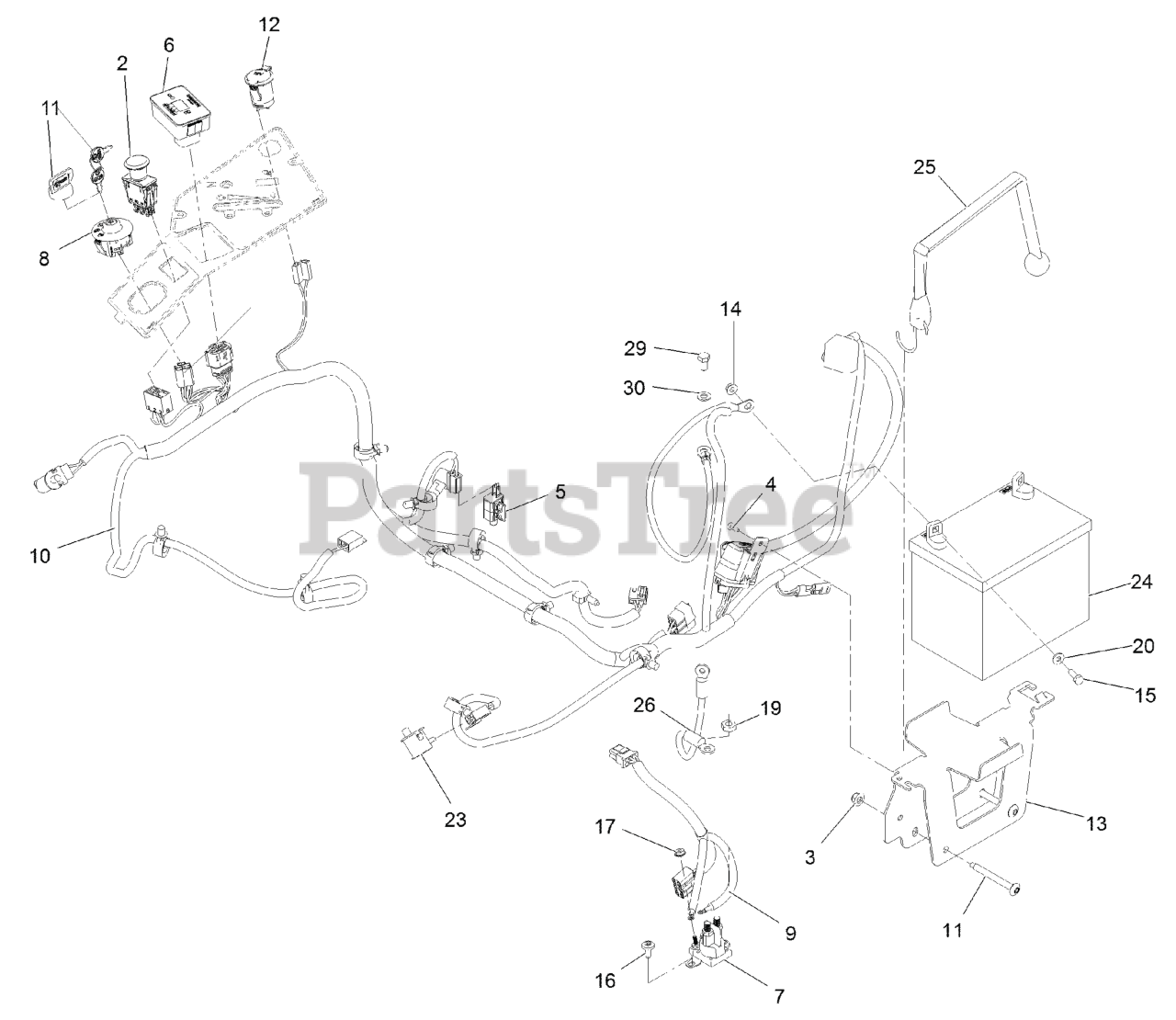

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

1

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

2

Exmark 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 7

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

5

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-5609

MODULE ASM

$181.99

$

In Stock, only 2 left!

0

7

Exmark 117-1197

SOLENOID

$50.99

$

In Stock, Qty 20+

0

8

Exmark 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

9

Exmark 126-5036

ADAPTER-HARNESS, WIRE

$54.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5803

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$500.99

$

Usually ships in 3-6 days

0

11

Exmark 126-6267

SCREW-TORX

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 126-6499

PORT-POWER, 12V

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 126-6725-03

TRAY-BATTERY

$30.99

$

Usually ships in 3-6 days

0

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

20

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

24

Exmark 110-6657

Battery-195 CCA, Wet

$

$

Currently unavailable

25

Exmark 126-7627

STRAP-BUNGEE

$14.99

$

In Stock, only 2 left!

0

26

Exmark 100-3540

CABLE-BATTERY, POSITIVE

$37.99

$

Usually ships in 3-6 days

0

29

Exmark 135-2868

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
