RAS708GEM483C3 - Exmark 48" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Suspension Assembly Parts Diagram

48" Radius S-Series Zero-Turn Mower, Exmark 708

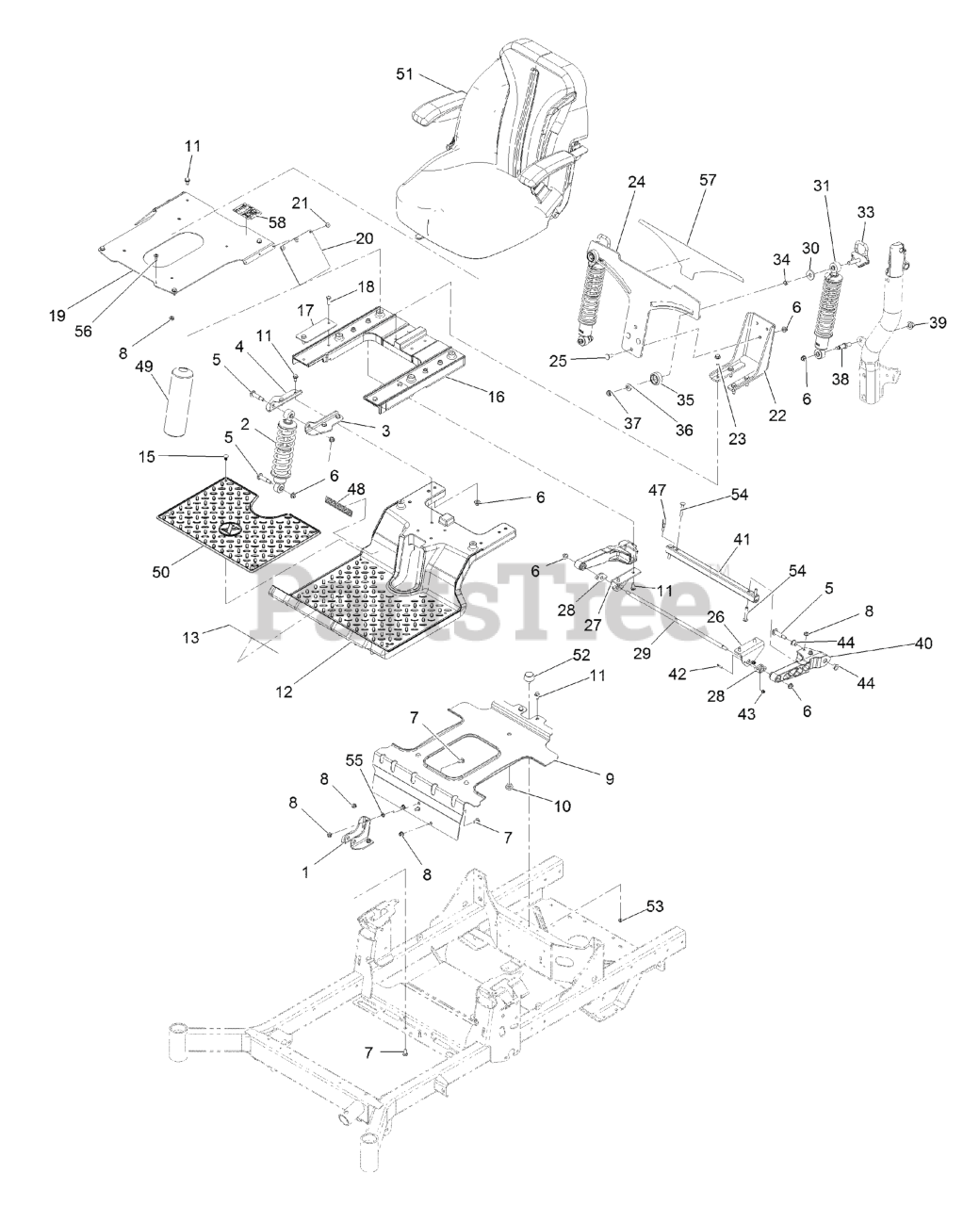

Suspension Assembly Parts Diagram

  • Title

1

Exmark 133-1864-03

BRACKET-SHOCK, FRONT LOWE

$25.99

$

Usually ships in 3-6 days

0

2

Exmark 136-8971

SHOCK/SPRING

$148.99

$

Usually ships in 3-6 days

0

3

Exmark 133-9318-03

BRACKET-SHOCK MOUNT, UPPE

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 133-9319-03

BRACKET-SHOCK MOUNT, UPPE

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 136-9028

BOLT-SHOULDER, HWH

$1.99

$

In Stock, only 3 left!

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 136-8963-03

BRACKET-TANK

$153.99

$

Usually ships in 3-6 days

0

10

Exmark 135-0505

BUMPER-SEAT

$1.49

$

In Stock, only 4 left!

0

11

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

12

Exmark 133-7083-01

SUBFRAME-FRONT

$224.65

$

Usually ships in 3-6 days

0

13

Exmark 132-0871

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

15

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

16

Exmark 137-7031-01

SUBFRAME-REAR

$104.99

$

Usually ships in 3-6 days

0

17

Exmark 133-7089-03

PLATE-BACKER

$8.99

$

Usually ships in 3-6 days

0

18

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 136-8962-03

PLATE-SEAT

$103.99

$

Usually ships in 3-6 days

0

20

Exmark 136-8967

FLAP-RUBBER

$8.99

$

In Stock, only 2 left!

0

21

Exmark 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 136-8955-03

BRACKET-MOUNT, LOWER

$76.99

$

Usually ships in 3-6 days

0

23

Exmark 32144-109

SCREW-THD

$5.49

$

In Stock, Qty 20+

0

24

Exmark 136-1744-03

PLATE-MOUNTING, ADJ SHOCK

$108.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

26

Exmark 136-1741-03

BRACKET-ARM, TRAILING (LH

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 136-1742-03

BRACKET-ARM, TRAILING (RH

$14.99

$

In Stock, only 1 left!

0

28

Exmark 127-0146

BEARING-FLANGE

$8.99

$

In Stock, only 4 left!

0

29

Exmark 136-1739

ROD-PIVOT

$35.99

$

Usually ships in 3-6 days

0

30

Exmark 131-4699

WASHER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 133-5154

SHOCK/SPRING ASM
(Superseded to 133-5193)

$145.99

$

Usually ships in 3-6 days

0

33

Exmark 136-5634

CAM LOCK ASM
(Superseded to 136-9017)

$42.99

$

Usually ships in 3-6 days

0

34

Exmark 133-5109

BEARING-SLEEVE

$2.99

$

In Stock, only 1 left!

0

35

Exmark 136-5636

KNOB-LOCK, CAM

$13.99

$

Usually ships in 3-6 days

0

36

Exmark 3-6803

WASHER-ADJUSTING

$9.49

$

Usually ships in 3-6 days

0

37

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

38

Exmark 133-4401

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

39

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

40

Exmark 136-8979

TRAILING ARM

$37.99

$

Usually ships in 3-6 days

0

41

Exmark 137-9754-03

TUBE-ARM, TRAILING

$153.99

$

Usually ships in 3-6 days

0

42

Exmark 3229-20

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

43

Exmark 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

44

Exmark 125-5239

BUSHING-FLANGE

$8.99

$

In Stock, only 2 left!

0

47

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

48

Exmark 136-8966

DECAL-RADIUS LOGO

$6.99

$

Usually ships in 3-6 days

0

49

Exmark 136-8972

COVER-SHOCK

$13.99

$

Usually ships in 3-6 days

0

50

Exmark 136-8957

FLOOR MAT

$90.99

$

Usually ships in 3-6 days

0

51

Exmark 135-3442

ASM-SEAT EXMARK

$1491.99

$

Usually ships in 3-6 days

0

52

Exmark 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

53

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

54

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

55

Exmark 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

56

Exmark 135-2015

SCREW-SHOULDER

$3.99

$

In Stock, only 1 left!

0

57

Exmark 136-8952

DECAL-ADJUSTMENT, RIDE

$25.99

$

Usually ships in 3-6 days

0

58

Exmark 136-9024

DECAL-AID, SERVICE

$5.99

$

Usually ships in 3-6 days

0
