RAX691GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Caster Wheel and Fork Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V

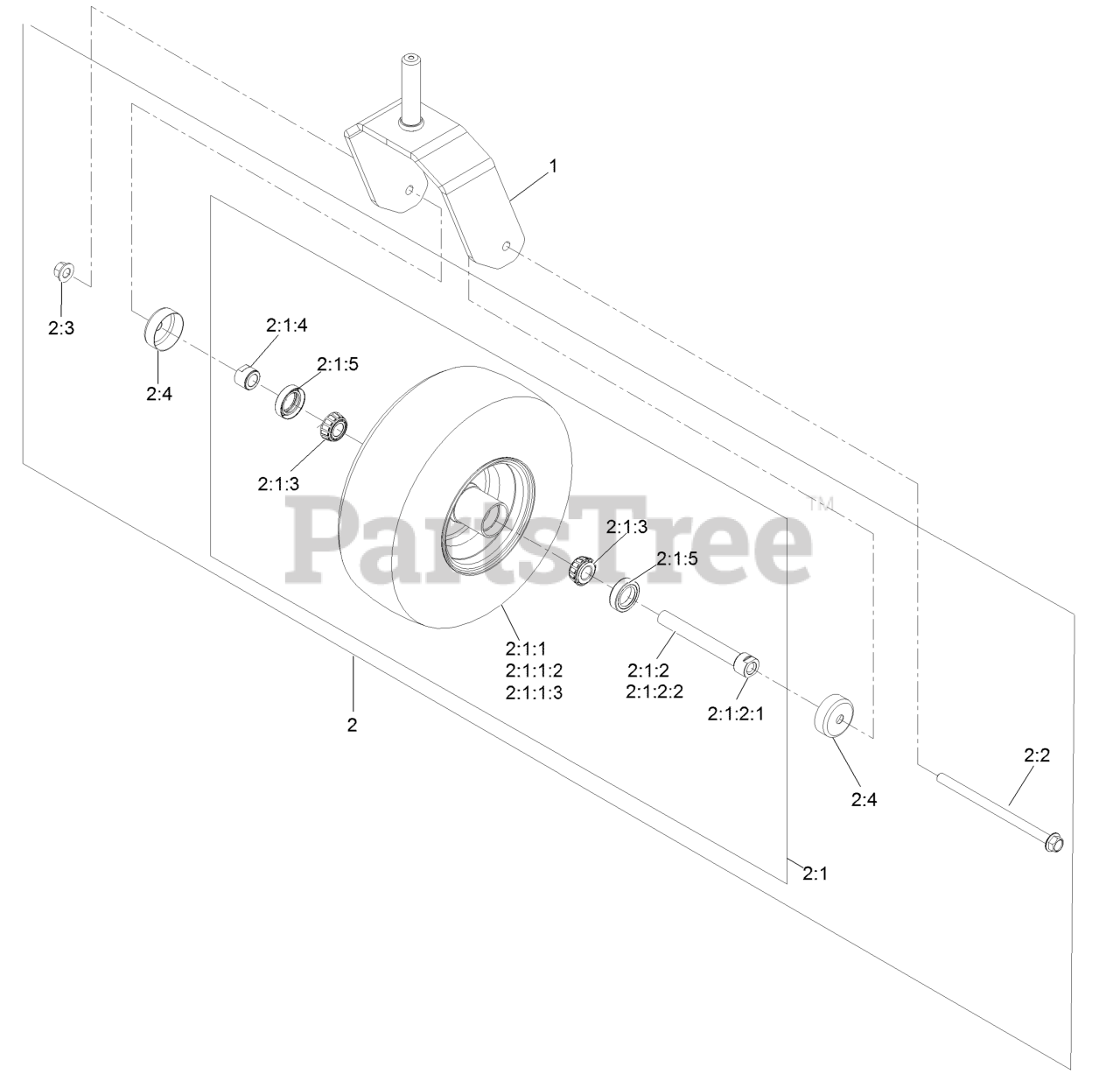

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 126-4312-01

Fork-Caster
(Superseded to 142-7827-01)

$127.99

$

In Stock, Qty 20+

0

2

Exmark 126-7752

ASM-Wheel Brgs Axle 13X6.50-6

$282.99

$

In Stock, only 2 left!

0

2:1

ASM-Wheel And Brgs, 13X6.50-6

$

$

Not available

2:1:1

ASM-Wheel And Tire 13X6.50-6

$

$

Not available

2:1:1:2

Exmark 5108

Valve

$8.49

$

Usually ships in 3-6 days

0

2:1:1:3

Exmark 126-5959

Tire

$106.99

$

In Stock, only 2 left!

0

2:1:2

Exmark 126-7796

Caster Axle ASM

$22.99

$

In Stock, only 1 left!

0

2:1:2:1

Exmark 126-5220

Axle-Caster

$

$

Currently unavailable

2:1:2:2

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

2:1:3

Exmark 1-633585

Bearing-Cone Tapered Roller

$25.99

$

In Stock, Qty 20+

0

2:1:4

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

2:1:5

Exmark 103-0063

Seal-Double Lip

$10.99

$

In Stock, Qty 20+

0

2:2

Exmark 126-5389

Screw-HHF

$8.99

$

In Stock, Qty 20+

0

2:3

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

2:4

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0
