RM-483 - Toro 48" Side-Discharge Mower Deck (1963) Parts List For Rm-483 Rotary Mower Parts Diagram

48" Side-Discharge Mower Deck

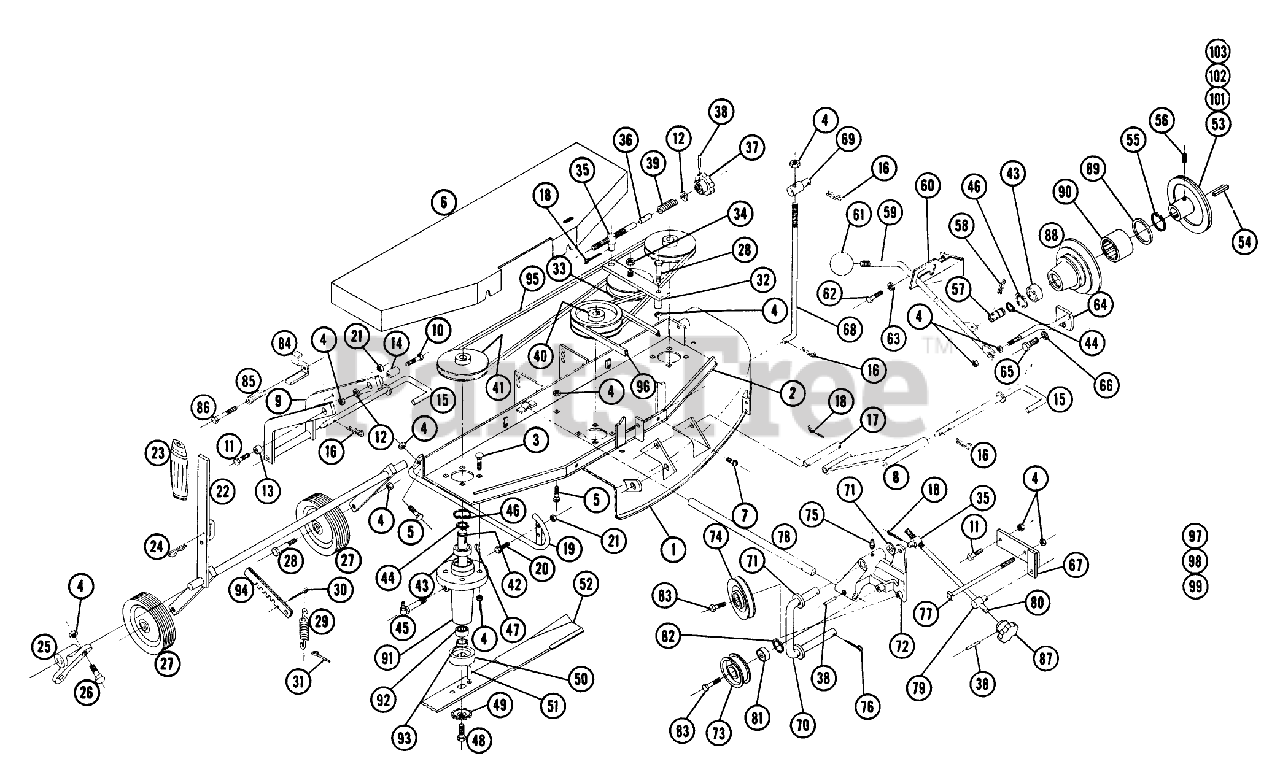

Parts List For Rm-483 Rotary Mower Parts Diagram

  • Title

1

Toro 4257

Ass-y. Deck

$

$

Not available

2

Toro 4265

Ass-y. Channel-Deck Support

$

$

Currently unavailable

3

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

4

Toro 915113-6

Nut

$

$

Currently unavailable

5

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

6

Toro 4364

Cover-Deck

$

$

Currently unavailable

7

Toro 1385

DISCONTINUED

$

$

Not available

8

Toro 4287

DISCONTINUED

$

$

Not available

9

Toro 4273

DISCONTINUED

$

$

Not available

10

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

11

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

12

Toro 920009-4

Washer

$

$

Currently unavailable

13

Toro 4394

DISCONTINUED

$

$

Not available

14

Toro 4395

DISCONTINUED

$

$

Not available

15

Toro 4294

Ass-y. Pin Lift Link

$

$

Currently unavailable

16

Toro S-52-4

Hairpin

$

$

Currently unavailable

17

Toro 4388

DISCONTINUED

$

$

Not available

18

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

19

Toro 4361

Washer
(Superseded to 700923)

$

$

Not available

20

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

21

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

22

Toro 4277

Ass-y. Gage Wheel Adj. Rod

$

$

Currently unavailable

23

Toro 4451

See Supercession: 5359
(Superseded to 5359)

$

$

Not available

24

Toro S-52-12

Hairpin

$

$

Currently unavailable

25

Toro 4280

Bearing-Cast Iron

$

$

Currently unavailable

26

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

27

Toro 4480

See Supercession: 110506
(Superseded to 110506)

$46.99

$

In Stock, Qty 15

0

28

Toro 4177

Bolt-Shoulder

$

$

Currently unavailable

29

Toro 1230

DUP PART SEE $BOOK

$

$

Not available

30

Toro 932015-4

Cotter Pin 1/8 x 1/2

$

$

Currently unavailable

31

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

32

Toro 4358

Ass-y.-Idler Plate
(Superseded to 704075)

$

$

Not available

33

Toro 4488

DISCONTINUED

$

$

Not available

34

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

35

Toro 1861

Trunnion

$

$

Not available

36

Toro 4386

Rod-Mower Adj.

$

$

Currently unavailable

37

Toro 4264

Knob-Adj.

$

$

Currently unavailable

38

Toro 933156

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

39

Toro 4392

Spring

$

$

Currently unavailable

40

Toro 4381

DISCONTINUED

$

$

Not available

41

Toro 4385

DISCONTINUED

$

$

Not available

42

Toro 4393

DISCONTINUED XREF

$

$

Not available

43

Toro 1515

See Supercession: 101480
(Superseded to 101480)

$64.99

$

In Stock, only 3 left!

0

44

Toro S-50-75

Snap Ring 3/4 I.D.

$

$

Currently unavailable

45

Toro 4566

DISCONTINUED

$

$

Not available

46

Toro S-51-162

Snap-Ring 1 5/8 Bore

$

$

Currently unavailable

47

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

48

Toro 1398

Screw - Nylock 3/8-16 x 7/8

$

$

Currently unavailable

49

Toro 1336

DISCONTINUED

$

$

Not available

50

Toro 3716

DISCONTINUED

$

$

Not available

51

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

52

Toro 4380

DISCONTINUED
(Superseded to 100202)

$

$

Not available

53

Toro 4282

DISCONTINUED

$

$

Not available

54

Toro 1121

KEY-SQUARE

$

$

Not available

55

Toro S-51-112

Snap Ring-1 1/8 Int. Truarc

$

$

Currently unavailable

56

Toro 909825

Set Screw #10-24 x 1/4 Soc. Hd.

$

$

Currently unavailable

57

Toro 4391

Shaft

$

$

Currently unavailable

58

Toro S-52-6

Hairpin

$

$

Currently unavailable

59

Toro 4355

ROD ASSY

$

$

Not available

60

Toro 4383

DISCONTINUED

$

$

Not available

61

Toro 2709

See Supercession: 102891
(Superseded to 102891)

$

$

Not available

62

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

63

Toro 920082-4

Lockwasher

$

$

Currently unavailable

64

Toro 4291

Ass-y.-Plate

$

$

Currently unavailable

65

Toro 908046-4

Bolt, 7/16 14 x 1

$

$

Currently unavailable

66

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

67

Toro 4296

Ass-y.-Belt Adj. Bracket

$

$

Currently unavailable

68

Toro 4384

See Supercession: 703449
(Superseded to 703449)

$

$

Not available

69

Toro 4389

LIFT STUD

$62.99

$

Usually ships in 3-6 days

0

70

Toro 4286

DISCONTINUED

$

$

Not available

71

Toro S-57-59

Washer

$

$

Currently unavailable

72

Toro 4400

Bracket-Idler Mtg.

$

$

Currently unavailable

73

Toro 4387

See Supercession: 6740
(Superseded to 6740)

$

$

Not available

74

Toro 4458

DISCONTINUED
(Superseded to 4974)

$

$

Not available

75

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

76

Toro 932026-4

Cotter Pin 5/32 x 1 1/4

$

$

Currently unavailable

77

Toro 900854-4

Bolt-Hex. 3/8-16 x 8 1/2

$

$

Currently unavailable

78

Toro 4399

Rod-Leveling

$

$

Currently unavailable

79

Toro 1393

Stud

$

$

Currently unavailable

80

Toro 4382

DISCONTINUED

$

$

Not available

81

Toro 4567

BEARING

$

$

Not available

82

Toro S-51-137

Snap Ring 1 3/8 Bore

$

$

Currently unavailable

83

Toro 908035-6

Bolt 3/8-16 x 1 1/4 Nylok

$

$

Currently unavailable

84

Toro 4390

DISCONTINUED

$

$

Not available

85

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

86

Toro 908023-4

Bolt-Hex 3/8-16 x 2

$

$

Currently unavailable

87

Toro 4481

See Supercession: 101851
(Superseded to 101851)

$28.99

$

In Stock, only 2 left!

0

88

Toro 4379

Housing-Clutch

$

$

Currently unavailable

89

Toro 4398

DISCONTINUED

$

$

Not available

90

Toro 4397

DISCONTINUED

$

$

Not available

91

Toro 4299

DUP PART SEE $BOOK

$

$

Not available

92

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$14.99

$

In Stock, Qty 6

0

93

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$10.99

$

In Stock, Qty 8

0

94

Toro 4799

Ass-y. Arm-Gage Wheel

$

$

Currently unavailable

95

Toro 1594

V-BELT

$43.99

$

In Stock, Qty 10

0

96

Toro 1595

DISCONTINUED

$

$

Not available

97

Toro 4498

See Supercession: 92-7112
(Superseded to 92-7112)

$

$

Not available

98

Toro 4580

Decal Belt Installation

$

$

Currently unavailable

99

Toro S-56-4

Wrech #10 Allen

$

$

Currently unavailable

101

Toro 4874

DISCONTINUED

$

$

Not available

102

Toro 4365

CLUTCH FACING

$100.99

$

Usually ships in 3-6 days

0

103

Toro 4870

Rivet-Clutch Facing

$

$

Currently unavailable
