RT 1200 - Toro Riding Trencher Traction Unit (2010) 36in Depth Rocksaw Assembly Parts Diagram

Riding Trencher Traction Unit

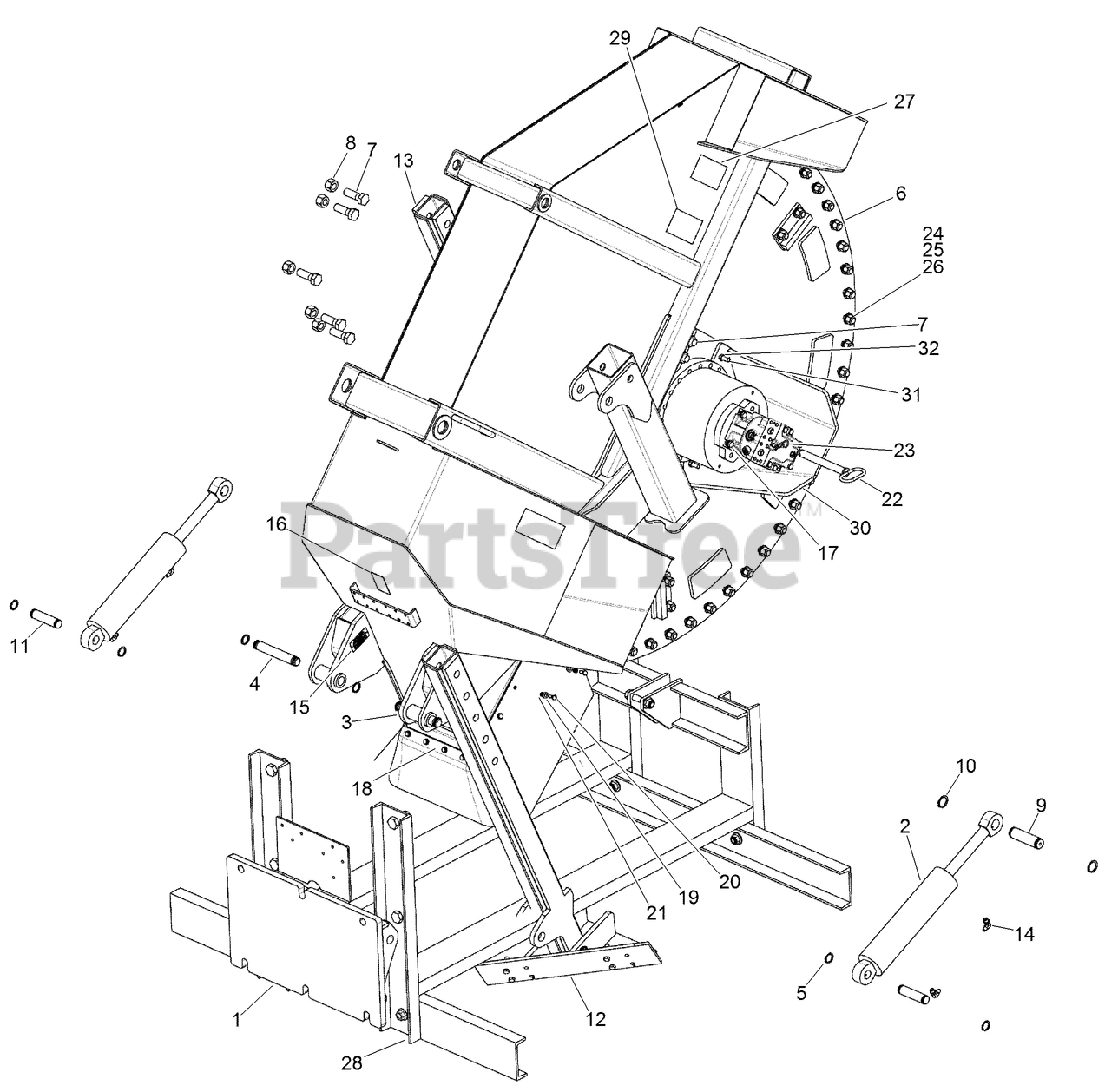

36in Depth Rocksaw Assembly Parts Diagram

  • Title

Toro AU118935

ROCKSAW - 36 Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU101027

WELDMENT - Rock Wheel Mount

$

$

Currently unavailable

2

Toro AU118918

CYLINDER-3.5"BX11.4"SX1.5"R

$1974.99

$

Usually ships in 3-6 days

0

3

Toro AU100920

FRAME WELDMENT - Rock Wheel

$

$

Currently unavailable

4

Toro AUH434381

PIN-STABILIZER CYLINDER TO ARM

$

$

Currently unavailable

5

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

6

Toro AU102464

WHEEL ASSEMBLY - Motor/Disc/Hardware

$

$

Currently unavailable

7

Toro AU426-1648

BOLT

$10.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41116

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

9

Toro AU221253A1

PIN-PIVOT

$283.99

$

Usually ships in 3-6 days

0

10

Toro AUD25279

RING

$24.99

$

Usually ships in 3-6 days

0

11

Toro AUD32933

PIN-PIVOT

$180.99

$

Usually ships in 3-6 days

0

12

Toro AU101063

ASSEMBLY - Stabilizer, LH

$

$

Currently unavailable

13

Toro AU101064

ASSEMBLY - Stabilizer, RH

$

$

Currently unavailable

14

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

15

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

16

Toro AU382622A1

DECAL-WARNING GENERAL OPERATIO

$50.99

$

Usually ships in 3-6 days

0

17

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU101359

SKIRT-RUBBER - ROCKSAW

$567.99

$

Usually ships in 3-6 days

0

19

Toro AU495-11041

WASHER-FLAT, 3/8 ZND

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU426-624

BOLT-3/8-16 X 1-1/2 GR 8 ZND
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU230-4216

See Supercession: 125-5069
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

22

Toro AUH660209

PIN-MOUNTING

$

$

Not available

23

Toro AUH32292

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

24

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU426-1252

BOLT - Hex Hd .75 x 3.25 GR8 ZND

$

$

Currently unavailable

26

Toro AU232-41112

NUT-HEX LOCK 3/4-10 CAD GRD C

$2.49

$

Usually ships in 3-6 days

0

27

Toro AU114743

DECAL-THROWN OBJECTS (ANSI)

$

$

Not available

28

Toro AU109145

STAND - Rock Saw

$

$

Currently unavailable

29

Toro AU115101

DECAL-ROCKSAW ENTANGLE (ANSI)

$

$

Not available

30

Toro AU102474

WELDMENT - Motor Guard

$

$

Currently unavailable

31

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

32

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0
