RT 1200 - Toro Riding Trencher Traction Unit (2010) Backfill Blade Assembly Parts Diagram

Riding Trencher Traction Unit

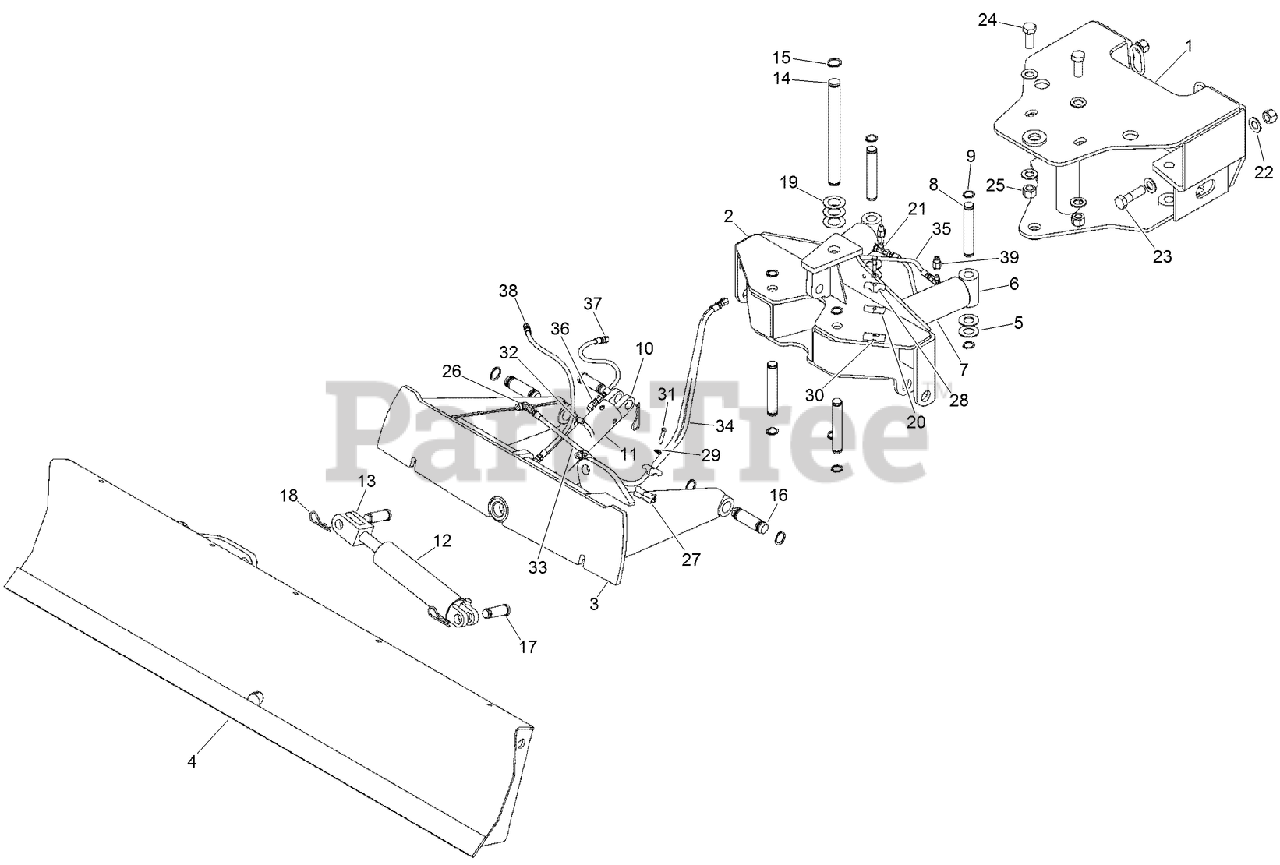

Backfill Blade Assembly Parts Diagram

  • Title

Toro AU116760

ASSEMBLY - Backfill Blade

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU117156

See Supercession: AU117156-03
(Superseded to AU117156-03)

$

$

Not available

2

Toro AU115400

WELDMENT, PIVOT - Backfill
(Superseded to AU115400-03)

$

$

Not available

3

Toro AU115399

WELDMENT, ARM - Backfill

$

$

Not available

4

Toro AU106732

WELDMENT, BLADE - Backfill

$

$

Not available

5

Toro AU495-81209

WASHER-FLAT

$

$

Not available

6

Toro AUH670935

CYLINDER - Barrel

$

$

Not available

7

Toro AUH670935

CYLINDER - Barrel

$

$

Not available

8

Toro AUH432880

PIN-ANGLE, CYLINDER

$

$

Currently unavailable

9

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

10

Toro AU118759

CYLINDER - Hydraulic, Barrel

$

$

Not available

11

Toro AU118759

CYLINDER - Hydraulic, Barrel

$

$

Not available

12

Toro AU117653

CYLINDER - Hydraulic, Barrel

$

$

Currently unavailable

13

Toro AU117653

CYLINDER - Hydraulic, Barrel

$

$

Currently unavailable

14

Toro AUH432906

PIN-BLADE

$

$

Currently unavailable

15

Toro AUD25279

RING

$24.99

$

Usually ships in 3-6 days

0

16

Toro AUH432898

PIN-BLADE

$

$

Currently unavailable

17

Toro AUN14001

PIN-CLEVIS

$

$

Currently unavailable

18

Toro AU1978738C1

PIN-COTTER, QUICK ATTACH

$

$

Not available

19

Toro AUH117606

WASHER

$24.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5057

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

21

Toro AU218-5243

FITTING-TEE

$29.99

$

Usually ships in 3-6 days

0

22

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

23

Toro AU426-1656

SCREW-CAP, HH

$21.99

$

Usually ships in 3-6 days

0

24

Toro AU426-1640

BOLT

$20.99

$

Usually ships in 3-6 days

0

25

Toro AU232-41116

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

26

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

27

Toro AUD120614

RETAINER - Hose

$

$

Currently unavailable

28

Toro AUD120679

CLAMP-TUBE

$9.99

$

Usually ships in 3-6 days

0

29

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU426-628

See Supercession: 323-52
(Superseded to 323-52)

$4.99

$

In Stock, Qty 12

0

32

Toro AU214-1452

CLAMP-HOSE TYPE F #52

$3.49

$

Usually ships in 3-6 days

0

33

Toro AU106855

HOSE - Hydraulic, Back Fill Blade Tilt

$

$

Currently unavailable

34

Toro AU106854

HOSE - Hydraulic, Back Fill Blade Tilt

$

$

Currently unavailable

35

Toro AUS77121

HOSE, Hyd, C2 tee at diff lock valve (branch) to front axle diff lock

$

$

Not available

36

Toro AU124453

ORIFICE-INLINE, 0.062

$

$

Not available

37

Toro AUS77121

HOSE, Hyd, C2 tee at diff lock valve (branch) to front axle diff lock

$

$

Not available

38

Toro AU119666A1

HOSE ASM, -4/-4/-4, 1100MM OAL

$134.99

$

Usually ships in 3-6 days

0

39

Toro AU91-2215-6-8S

ADAPTER - Tube IPC, 37FL, 3/8 x 1/2

$

$

Currently unavailable
