RT 1200 - Toro Riding Trencher Traction Unit (2010) Backhoe Bucket Cylinder Assembly Parts Diagram

Riding Trencher Traction Unit

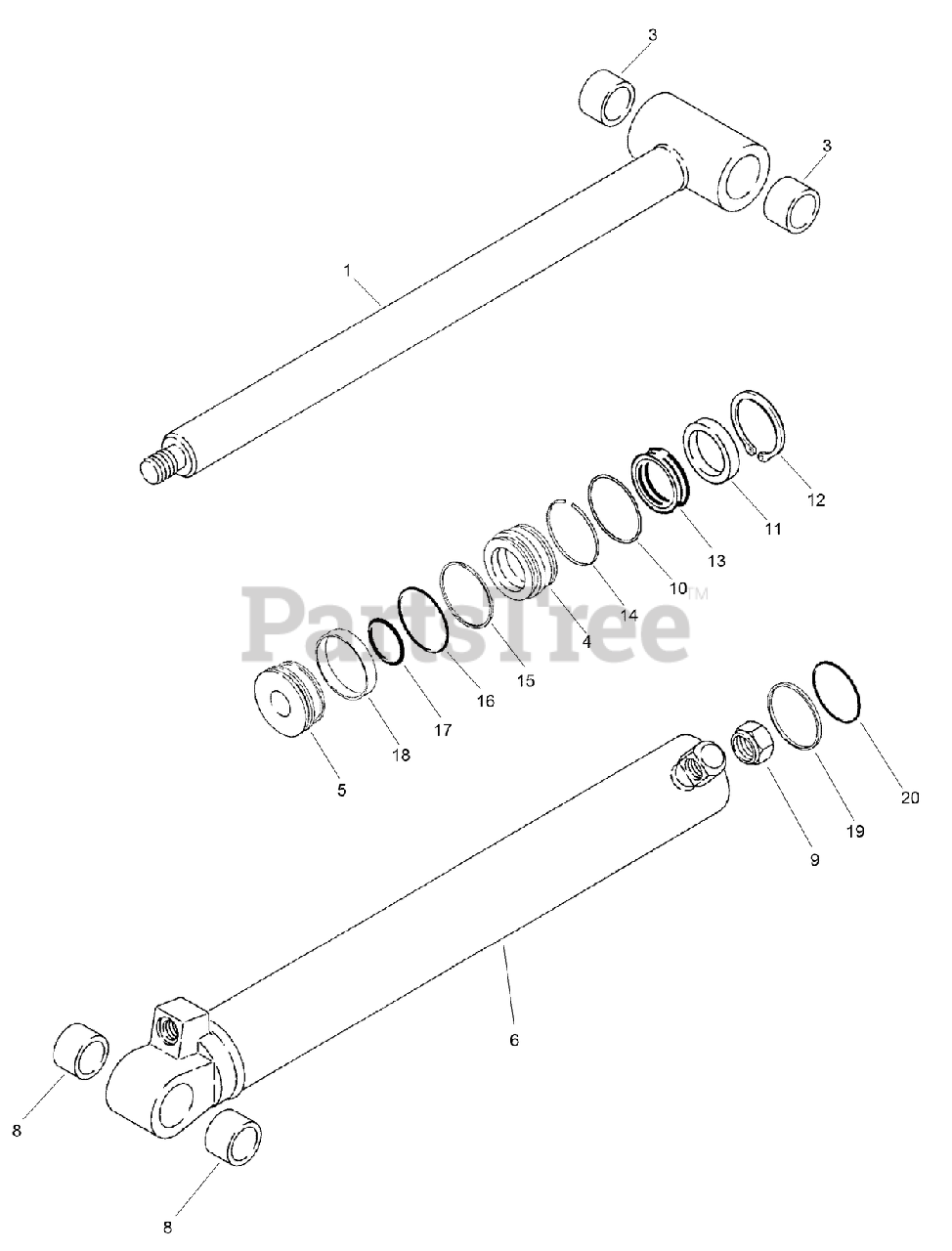

Backhoe Bucket Cylinder Assembly Parts Diagram

  • Title

Toro AUH672570

CYLINDER-BUCKET - 3"BX25.75"S

Note: Not illustrated

$

$

Not available

Toro AUN13930

ASSEMBLY - Rod, Piston (Consists of items 1 3)

Note: Not illustrated

$

$

Currently unavailable

1

ROD - Piston

Note: Not serviced separately

$

$

Not available

3

Toro AUN13921

BUSHING - Piston Rod

$

$

Currently unavailable

4

Toro AUN13928

GLAND - Cylinder

$

$

Currently unavailable

5

Toro AUN13927

PISTON

$

$

Currently unavailable

Toro AUN13929

ASSEMBLY - Tube (Consists of items 6 8)

Note: Not illustrated

$

$

Currently unavailable

6

TUBE - Cylinder

Note: Not serviced separately

$

$

Not available

8

Toro AUN13921

BUSHING - Piston Rod

$

$

Currently unavailable

9

Toro AU232-24018

NUT - 1-1/8

$

$

Not available

Toro AUN13931

KIT - Seal (Consists of items 10 - 20)

Note: Not illustrated

$

$

Currently unavailable

10

RING - Lock

Note: Not serviced separately

$

$

Not available

11

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

12

Ring - Retaining

Note: Not serviced separately

$

$

Not available

13

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

14

Toro AUH52761

DISCONTINUED

$

$

Not available

15

Toro AUH745760

WASHER-BACKUP

$15.99

$

Usually ships in 3-6 days

0

16

Toro AU238-5232

See Supercession: AU511284
(Superseded to AU511284)

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU238-6226

O-RING - 2 ID x 1/8

$

$

Not available

18

Toro AUH252833

RING

$89.99

$

Usually ships in 3-6 days

0

19

Toro AUH120188

RING

$22.99

$

Usually ships in 3-6 days

0

20

Toro AU238-6231

O-RING

$1.49

$

Usually ships in 3-6 days

0
