RT 1200 - Toro Riding Trencher Traction Unit (2010) Left Front Track Mount Assembly Parts Diagram

Riding Trencher Traction Unit

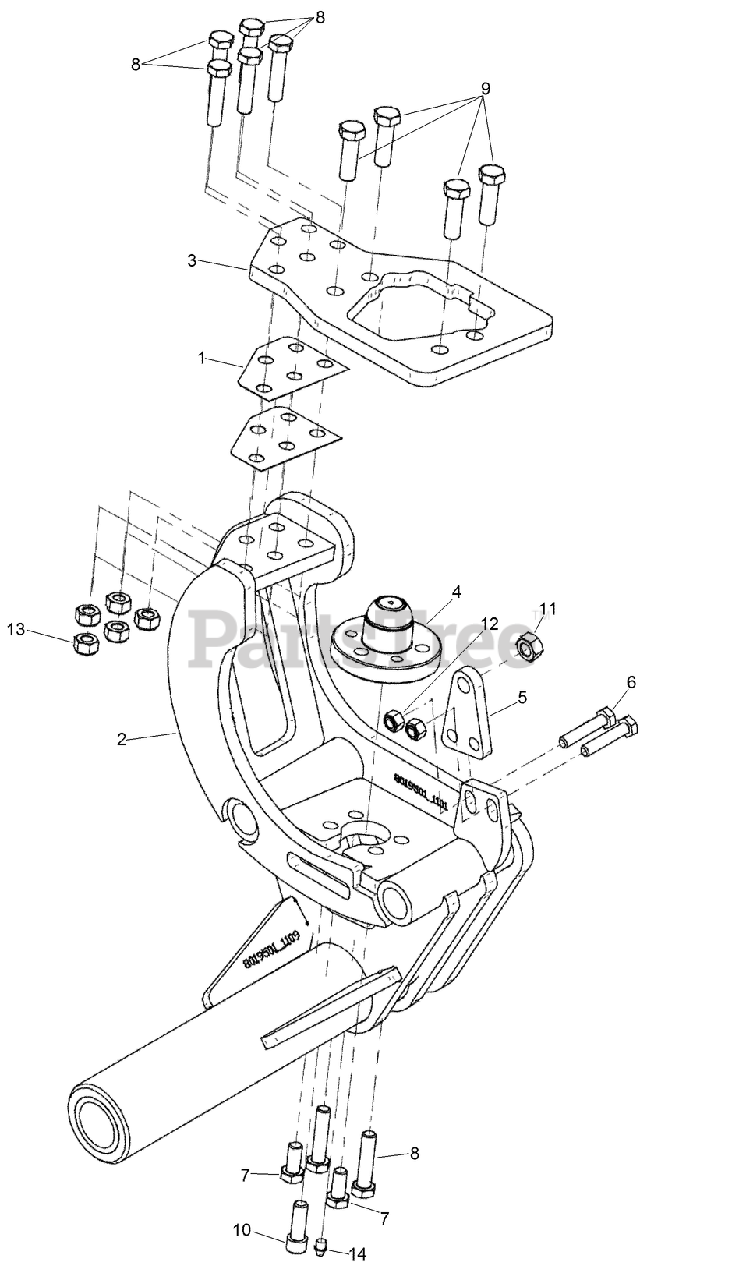

Left Front Track Mount Assembly Parts Diagram

  • Title

ASSEMBLY - Track Mount, Front Left

Note: Not illustrated

$

$

Not available

ASSEMBLY - Track Mount, Front Left

Note: Not serviced separately

$

$

Not available

1

Toro AU119181

PLATE - Shim

$

$

Currently unavailable

2

Toro AU119182

WELDMENT - Right Front Frame Mount

$

$

Not available

Toro AU120844

BUSHING - Bronze

Note: Not illustrated

$

$

Currently unavailable

Toro AU120845

BUSHING - Bronze

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU119183

PLATE - Mounting, Top

$

$

Currently unavailable

4

Toro AU119184

PIN-KING, TRACKS

$

$

Currently unavailable

5

Toro AU119185

BRACKET - Direction

$

$

Currently unavailable

6

Toro AU100350

BOLT - Hex Hd, M12 - 1.75 x 60 mm

$

$

Currently unavailable

7

Toro AU100420

BOLT - Hex Hd, M14 - 2.00 x 30 mm
(Superseded to AU814-14030)

$

$

Not available

8

Toro AU119146

BOLT - Hex Hd, M14 - 2.00 x 60 mm

$

$

Currently unavailable

9

Toro AU100832

SCREW-FLANGE

$16.99

$

Usually ships in 3-6 days

0

10

Toro AU864-14040

SCREW-HSH

$

$

Currently unavailable

11

Toro AU100529

NUT-HHF

$8.49

$

Usually ships in 3-6 days

0

12

Toro AU100528

NUT-HHF, LOCK

$2.99

$

Usually ships in 3-6 days

0

13

Toro AU119147

NUT - Hex M14 - 2.0

$

$

Currently unavailable

14

Toro AU119186

ZERK - Grease Fitting, M10 x 1.0 Straight

$

$

Currently unavailable
