RT 1200 - Toro Riding Trencher Traction Unit (2010) Main Vavle Assembly Parts Diagram

Riding Trencher Traction Unit

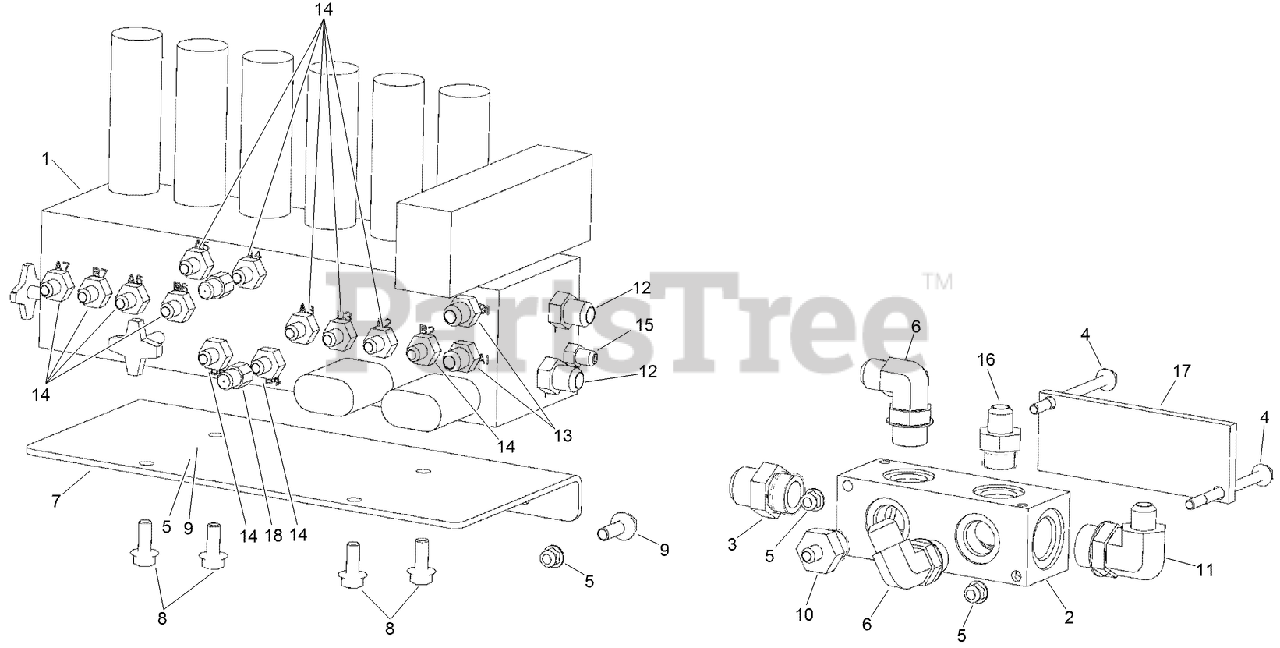

Main Vavle Assembly Parts Diagram

  • Title

Toro AU118201

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115766

MANIFOLD - Main HIC Valve
(Superseded to 131-0421)

$

$

Not available

2

Toro AU106457

MANIFOLD-RETURN, HYDRAULIC

$

$

Currently unavailable

3

Toro AU218-5069

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

4

Toro AU100329

SCREW-MTRC FL W/ BDY M8 X 110

$21.99

$

Usually ships in 3-6 days

0

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5108

FITTING-ELBOW,90

$34.99

$

Usually ships in 3-6 days

0

7

Toro AU121481

PLATE - Filter Mount

$

$

Currently unavailable

8

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

10

Toro AU218-5044

ADAPTER-STRAIGHT

$8.99

$

Usually ships in 3-6 days

0

11

Toro AU218-5130

ELBOW-90, ADJ

$118.99

$

Usually ships in 3-6 days

0

12

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

13

Toro AU218-5059

CONNECTOR-SHORT 37FL 1/2 TUBE

$5.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

15

Toro AU218-5352

ADAPTER-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

16

Toro AU218-5063

FITTING-STRAIGHT

$17.99

$

Usually ships in 3-6 days

0

17

Toro AU120043

SPACER
(Superseded to AU120043-03)

$

$

Not available

18

Toro AU109671

ORFICE-INLINE, 0.047

$33.99

$

Usually ships in 3-6 days

0
