RT 1200 - Toro Riding Trencher Traction Unit (2010) P95 Plow Hydraulic Assembly Parts Diagram

Riding Trencher Traction Unit

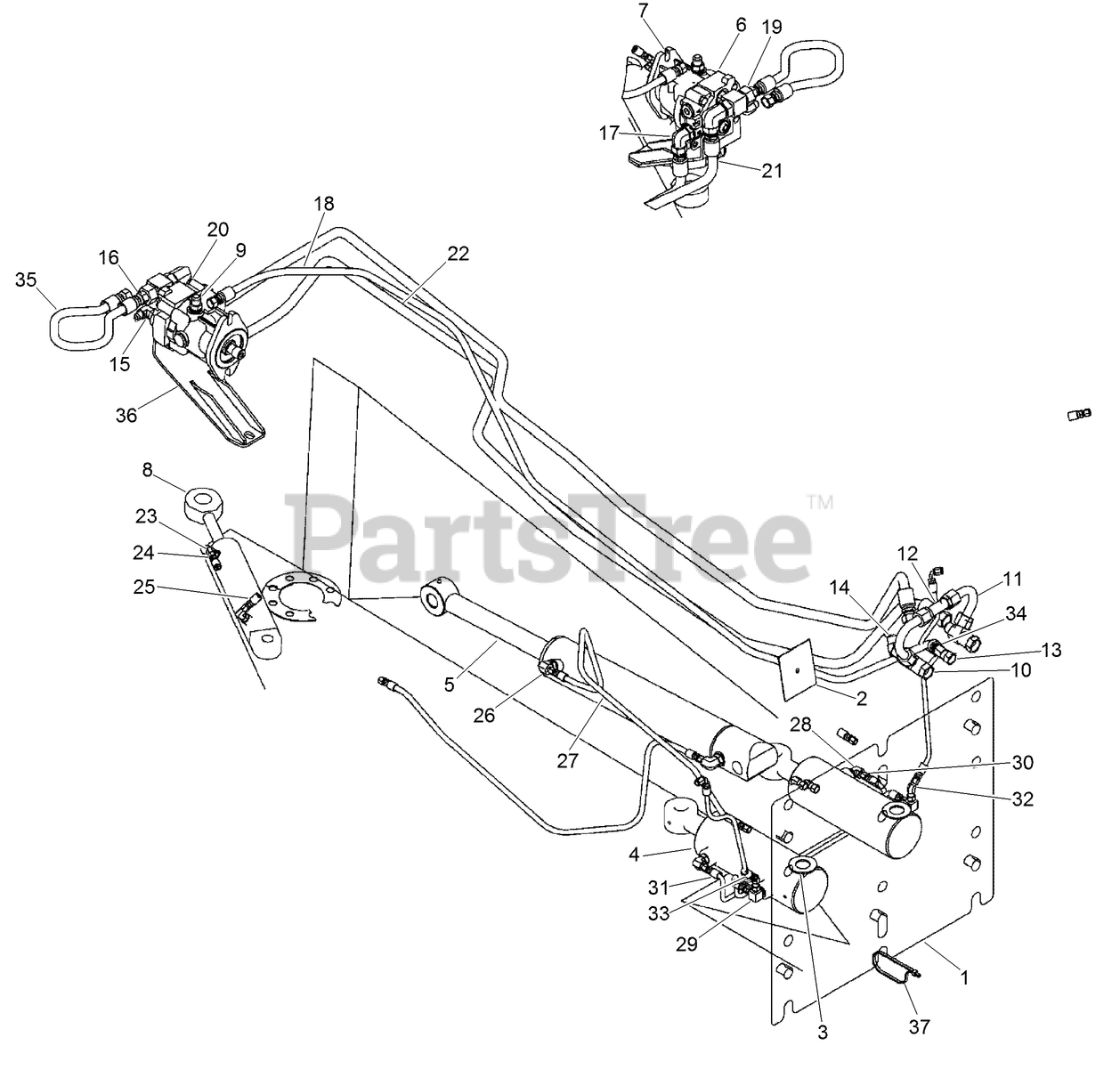

P95 Plow Hydraulic Assembly Parts Diagram

  • Title

1

Toro AUH833229

PLOW - Basic, P95

$

$

Currently unavailable

2

Toro AUH438536

SHIM-BUMPER

$

$

Currently unavailable

3

Toro AU495-81209

WASHER-FLAT

$

$

Not available

4

Toro AUH673704

CYLINDER ASM-102 (4) ID x 152mm (6) stroke, plow swing
(Superseded to AU126558)

$

$

Not available

5

Toro AU121737

CYLINDER-PLOW LIFT

$

$

Not available

6

Toro AU87430032

HYD MOTOR ASM

$

$

Not available

7

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

8

Toro AU123782

CYLINDER

$

$

Currently unavailable

9

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

10

Toro AU218-5412

TEE-SWIVEL

$

$

Currently unavailable

11

Toro AU107330A1

TUBE ASM

$89.99

$

Usually ships in 3-6 days

0

12

Toro AUL126503

VALVE-CHECK

$

$

Currently unavailable

13

Toro AU218-5174

ELBOW - 45 Swivel, 37FL 5/8 Tube

$

$

Not available

14

Toro AU218-5175

ELBOW-45 Deg 12MJ x 12FJ

$

$

Not available

15

Toro AU218-5121

ELBOW-1/2 TO 5/8 90 DEG.

$21.99

$

Usually ships in 3-6 days

0

16

Toro AU91-203003-12-16S

ADAPTER-Tee, ORB / JIC

$

$

Not available

17

Toro AU218-5108

FITTING-ELBOW,90

$34.99

$

Usually ships in 3-6 days

0

18

Toro AUH438084

ASSEMBLY - Hose

$

$

Currently unavailable

19

Toro AUH439323

FITTING-Restrictor

$

$

Currently unavailable

20

Toro AU218-5382

ELBOW-SWIVEL, 90 DEG

$62.99

$

Usually ships in 3-6 days

0

21

Toro AUH438196

ASSEMBLY - Hose

$

$

Currently unavailable

22

Toro AUH438196

ASSEMBLY - Hose

$

$

Currently unavailable

23

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

24

Toro AUH438199

FITTING

$

$

Currently unavailable

25

Toro AUH438198

ASSEMBLY - Hose

$

$

Currently unavailable

26

Toro AU218-5281

FITTING-ELBOW, 90 DEG

$31.99

$

Usually ships in 3-6 days

0

27

Toro AUH362418

HOSE-1/4 X 48

$118.99

$

Usually ships in 3-6 days

0

28

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

29

Toro AUH428623

TEE-SPECIAL

$

$

Currently unavailable

30

Toro AUH435080

ASSEMBLY - Hose

$

$

Currently unavailable

31

Toro AUH435080

ASSEMBLY - Hose

$

$

Currently unavailable

32

Toro AU218-5172

FITTING-ELBOW, 45 DEG

$14.99

$

Usually ships in 3-6 days

0

33

Toro AUH438000

HOSE ASM

$

$

Not available

34

Toro AUH438201

ASSEMBLY - Hydraulic Hose

$

$

Currently unavailable

35

Toro AUH437953

HOSE-3/4-16 JIC FM SW

$121.99

$

Usually ships in 3-6 days

0

36

Toro AU106510

BRACKET - P95 Motor Mount

$

$

Currently unavailable

37

Toro AUL18331

STRAP-TIE

$2.99

$

Usually ships in 3-6 days

0
