RT 1200 - Toro Riding Trencher Traction Unit (2010) Pedal Assembly Parts Diagram

Riding Trencher Traction Unit

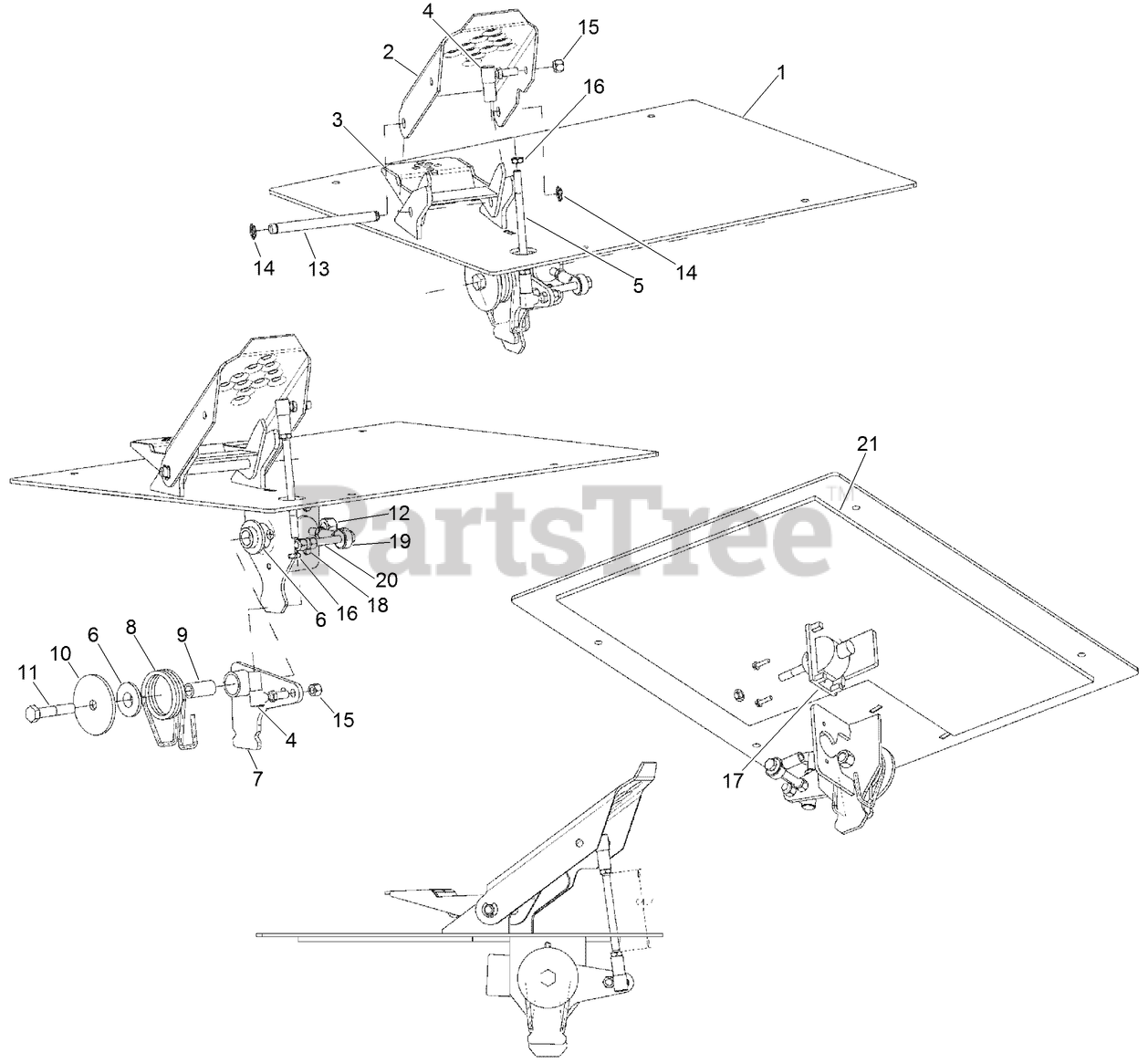

Pedal Assembly Parts Diagram

  • Title

Toro AU106377

PEDAL ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU106362

PLATE - Floor
(Superseded to AU106362-03)

$

$

Not available

2

Toro AUH403816

PEDAL - Ground Drive

$

$

Currently unavailable

3

Toro AUH672181

PEDAL WELDMENT - Heel

$

$

Not available

4

Toro AUD38296

See Supercession: 94-7572
(Superseded to 94-7572)

$37.99

$

In Stock, Qty 5

0

5

Toro AU398314A1

ROD-CONTROL

$

$

Currently unavailable

6

Toro AUD128616

BUSHING-INSERT, PLASTIC

$33.99

$

Usually ships in 3-6 days

0

7

Toro AU106453

PIVOT-W/BELLCRANK

$

$

Currently unavailable

8

Toro AUH436303

SPRING

$94.99

$

Usually ships in 3-6 days

0

9

Toro AUH435694

SPACER

$44.99

$

Usually ships in 3-6 days

0

10

Toro AUH436215

WASHER-SPECIAL

$16.99

$

Usually ships in 3-6 days

0

11

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

13

Toro AUH403840

PIN

$

$

Currently unavailable

14

Toro AUD143415

RING-KLIP
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

15

Toro AU232-4616

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU106445

JOYSTICK AND CONNECTOR - Single Axis (PQ Controls)

$

$

Currently unavailable

18

Toro AU63-81012

SCREW-HWH

$

$

Currently unavailable

19

Toro AUA32398

BEARING - Spherical Rod End
(Superseded to 92-7008)

$58.99

$

Usually ships in 3-6 days

0

20

Toro AU426-656

BOLT - Hex Hd .375 x 3.50 GR5 ZND

$

$

Not available

21

Toro AU109930

INSULATION-FLOOR

$

$

Currently unavailable
