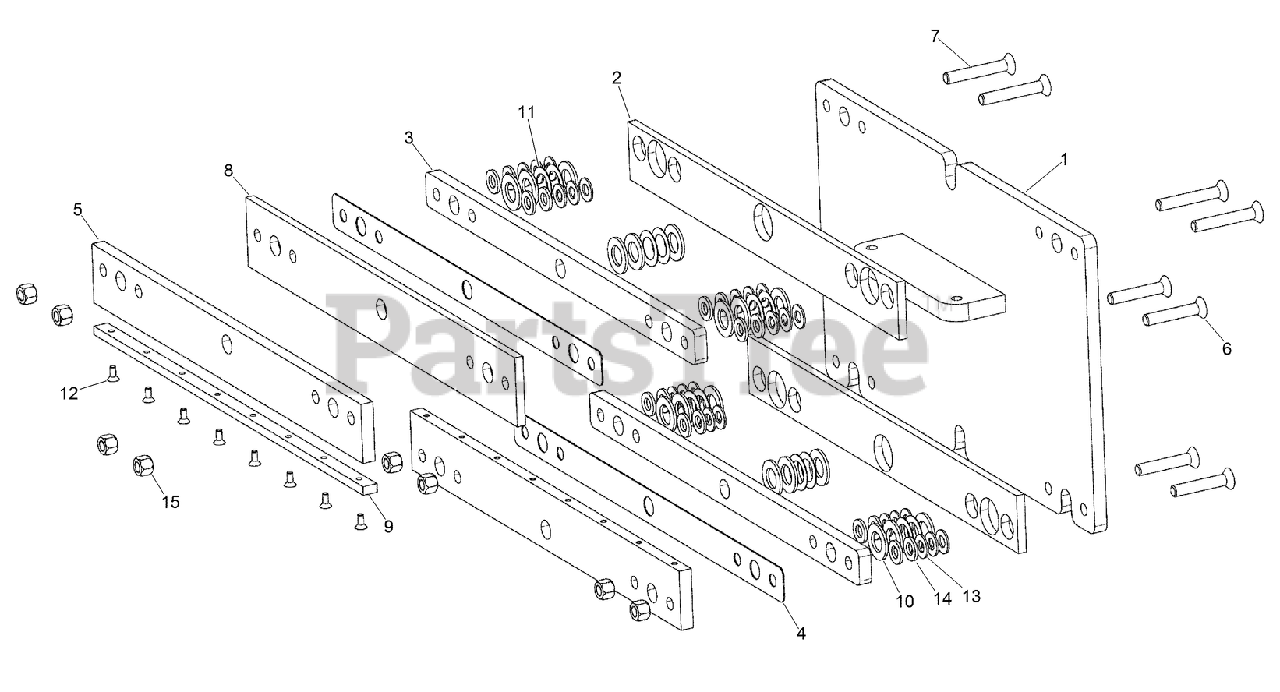

RT 1200 - Toro Riding Trencher Traction Unit (2010) Slide Assembly Parts Diagram

Riding Trencher Traction Unit

Slide Assembly Parts Diagram

  • Title

Toro AU100934

SLIDE MOUNT ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100929

WELDMENT - Slide Plate

$

$

Currently unavailable

2

Toro AU101265

STRIP-WEAR

$107.99

$

Usually ships in 3-6 days

0

3

Toro AU100931

PLATE - Spacer

$

$

Currently unavailable

4

Toro AU100932

PLATE-SLIDE

$

$

Currently unavailable

5

Toro AU100933

PLATE - Hook

$

$

Currently unavailable

6

Toro AU05-BB5/8X31/2NC

SCREW - 5/8 - 11 x 4-1/4

$

$

Currently unavailable

7

Toro AU05-BB5/8X4NC

SCREW - 5/8 - 11 x 3-3/4

$

$

Currently unavailable

8

Toro AU116860

STRIP-ANTIFRICTION, FRONT

$1090.99

$

Usually ships in 3-6 days

0

9

Toro AU101266

STRIP-WEAR

$79.99

$

Usually ships in 3-6 days

0

10

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

11

Toro AUH257915

SHIM

$12.99

$

Usually ships in 3-6 days

0

12

Toro AU361-43112

SCREW-HSFH

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU495-11066

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

14

Toro AUH426809

WASHER-FLAT

$23.99

$

Usually ships in 3-6 days

0

15

Toro AU230-42110

NUT-HEX, CENTER LOCK

$3.49

$

Usually ships in 3-6 days

0
