  • Title

Toro AU118751

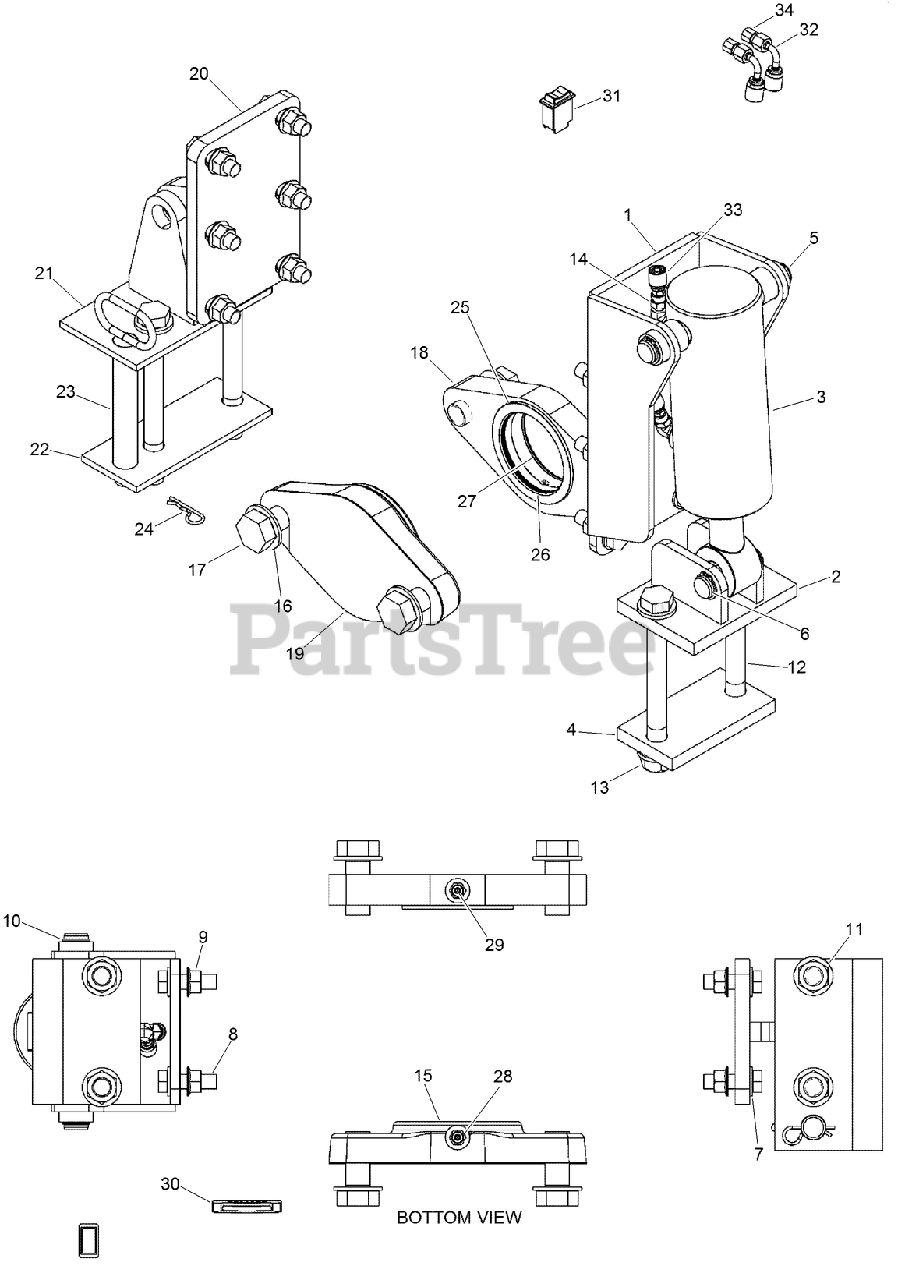

ASSEMBLY - Tilt Frame Option

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU104865

WELDMENT - Cylinder Frame Mount

$

$

Currently unavailable

2

Toro AU104861

WELDMENT - Rear Axle Mount, Tilt Suspension

$

$

Not available

3

Toro AUH673704

CYLINDER ASM-102 (4) ID x 152mm (6) stroke, plow swing
(Superseded to AU126558)

$

$

Not available

4

Toro AU105394

PLATE - Mounting

$

$

Currently unavailable

5

Toro AUH434493

PIN-PLOW

$

$

Currently unavailable

6

Toro AUH434556

PIN-CLEVIS

$140.99

$

Usually ships in 3-6 days

0

7

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU426-1240

BOLT

$4.99

$

Usually ships in 3-6 days

0

9

Toro AU231-51412

NUT-HEX FLANGE

$9.49

$

Usually ships in 3-6 days

0

10

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$5.49

$

Usually ships in 3-6 days

0

11

Toro AU496-21106

WASHER

$

$

Currently unavailable

12

Toro AU426-16160

SCREW-HH

$46.99

$

Usually ships in 3-6 days

0

13

Toro AU232-41116

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

15

Toro AUH433408

TRUNION-FRONT AXLE MTG
(Superseded to AUH433408-03)

$

$

Not available

16

Toro AUH426858

WASHER

$

$

Not available

17

Toro AU26-2048

BOLT - Hex Hd 1.25 x 3.00 GR8 Pln

$

$

Not available

18

Toro AU407398A1

HOUSING-FRT AXLE TRUNION MTG

$

$

Not available

19

Toro AUH433359

SHIM-MOUNT, AXLE

$

$

Currently unavailable

20

Toro AU105590

FRAME - Lockout Weldment

$

$

Currently unavailable

21

Toro AU105593

AXLE - Lockout Weldment

$

$

Currently unavailable

22

Toro AU105596

PLATE - Mounting

$

$

Currently unavailable

23

Toro AU106861

PIN

$

$

Currently unavailable

24

Toro AUH32292

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

25

Toro AUK395023

WASHER-THRUST

$

$

Currently unavailable

26

Toro AUK965265

BUSHING-PIVOT

$

$

Currently unavailable

27

Toro AUK965267

O-RING

$

$

Currently unavailable

28

Toro AUD136218

ADAPTER-LOCATING

$55.99

$

Usually ships in 3-6 days

0

29

Toro AU219-17

See Supercession: 302-63
(Superseded to 302-63)

$3.49

$

In Stock, only 4 left!

0

30

Toro AU104200

METER-SLOPE

$

$

Currently unavailable

31

Toro AU113664

SWITCH-ROCKER, 2 POLE

$42.99

$

In Stock, only 4 left!

0

32

Toro AU120443

HOSE - Hydraulic

$

$

Currently unavailable

33

Toro AUH438491

HOSE ASM, -4/-4/-4, 90"OAL

$160.99

$

Usually ships in 3-6 days

0

34

Toro AU109671

ORFICE-INLINE, 0.047

$33.99

$

Usually ships in 3-6 days

0
