RT 1200 - Toro Riding Trencher Traction Unit (2010) Trencher Drive Assembly Parts Diagram

Riding Trencher Traction Unit

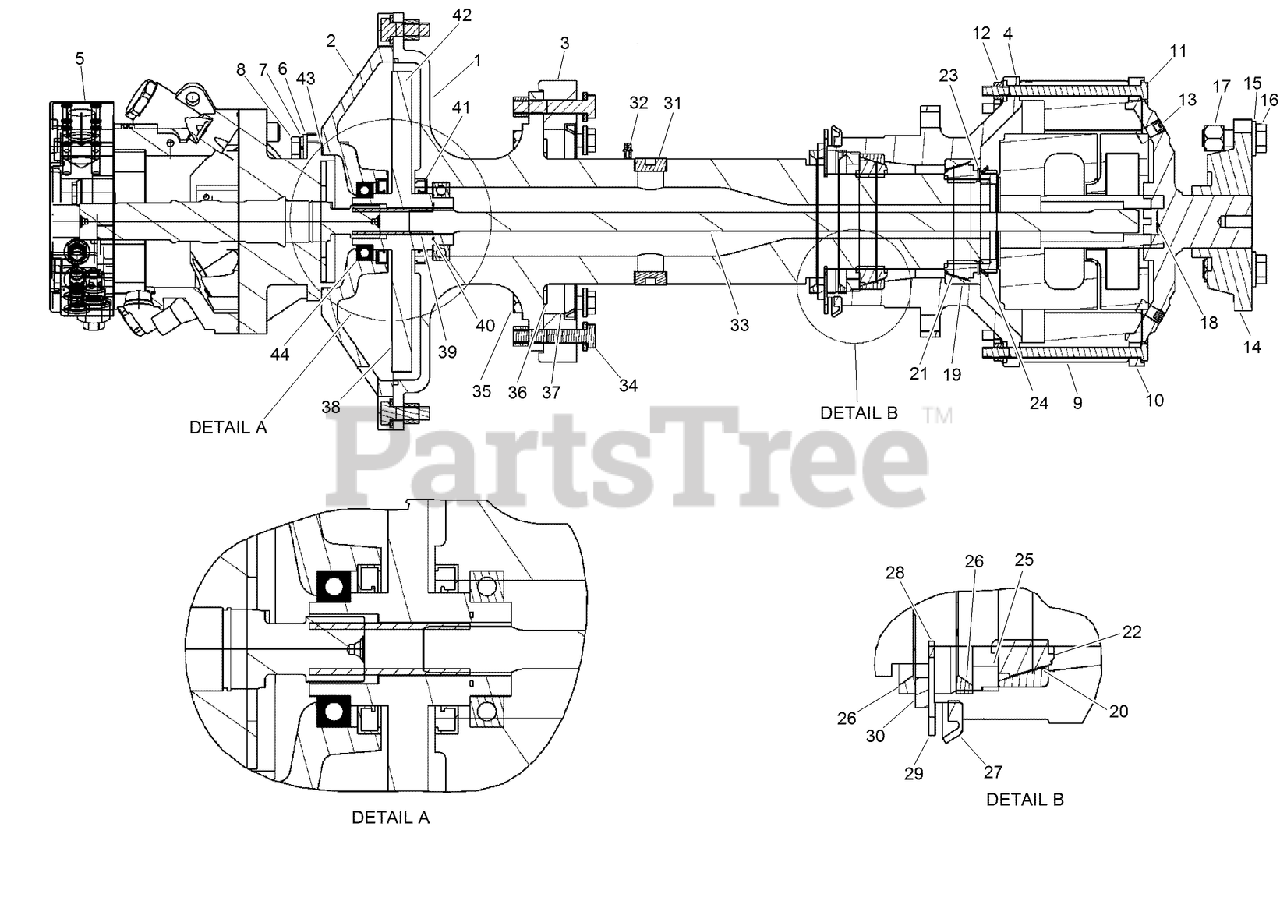

Trencher Drive Assembly Parts Diagram

  • Title

Toro AU108261

TRENCHER DRIVE

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH434813

PIVOT-BOOM

$

$

Not available

2

Toro AUH438702

COVER-FLYWHEEL

$786.99

$

Usually ships in 3-6 days

0

3

Toro AUH437580

SPACER-PIVOT, BOOM

$

$

Not available

4

Toro AUH437596

HUB-SPROCKET

$1447.99

$

Usually ships in 3-6 days

0

5

Toro AU108257

MOTOR-HYDRAULIC 75CC

$18632.99

$

Usually ships in 3-6 days

0

6

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

Usually ships in 3-6 days

0

8

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU108170

GEARBOX ASM

$

$

Not available

10

Toro AUH428714

See Supercession: AUH428714-03
(Superseded to AUH428714-03)

$583.99

$

Usually ships in 3-6 days

0

11

Toro AU426-696

BOLT

$

$

Not available

12

Toro AU231-5146

See Supercession: 3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

13

Toro AU221-675

PLUG-PIPE

$18.99

$

Usually ships in 3-6 days

0

14

Toro AUH758292

BEARING

$634.99

$

Usually ships in 3-6 days

0

15

Toro AUH426809

WASHER-FLAT

$23.99

$

Usually ships in 3-6 days

0

16

Toro AU426-1032

BOLT-5/8-11 X 2 GRADE 8 ZND

$3.49

$

Usually ships in 3-6 days

0

17

Toro AU232-41110

NUT-LOCK, HEX

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU100-2175

RING-RETAINING, BASIC INT #75 PLN

$0.99

$

Usually ships in 3-6 days

0

19

Toro AUA67327

CUP-BEARING

$95.99

$

Usually ships in 3-6 days

0

20

Toro AUA63171

BEARING

$93.99

$

Usually ships in 3-6 days

0

21

Toro AUA67328

BEARING-CONE

$226.99

$

Usually ships in 3-6 days

0

22

Toro AUA63185

BEARING

$169.99

$

Usually ships in 3-6 days

0

23

Toro AUL112617

WASHER-SHIM

$37.99

$

Usually ships in 3-6 days

0

24

Toro AU55-1015

WASHER-LOCK, BEARING

$18.99

$

Usually ships in 3-6 days

0

25

Toro AUH428839

SEAL

$123.99

$

Usually ships in 3-6 days

0

26

Toro AUH437505

SEAL-URETHANE

$94.99

$

Usually ships in 3-6 days

0

27

Toro AUH433852

SEAL-PLANETARY, URETHANE

$118.99

$

Usually ships in 3-6 days

0

28

Toro AUS64875

RING-RETAINING, EXTERNAL

$22.99

$

Usually ships in 3-6 days

0

29

Toro AU103885A1

RING-WEAR

$131.99

$

Usually ships in 3-6 days

0

30

Toro AUH437582

WASHER-THRUST, THICK

$40.99

$

Usually ships in 3-6 days

0

31

Toro AU41-1020

PLUG-FREEZE

$6.49

$

Usually ships in 3-6 days

0

32

Toro AU219-86

FITTING-LUBE 1/8 PIPE SELF-TA

$0.99

$

Usually ships in 3-6 days

0

33

Toro AUH434946

SHAFT-DRIVE

$1572.99

$

Usually ships in 3-6 days

0

34

Toro AU426-844

BOLT-1/2-13 X 2-3/4 GR 8 ZND

$2.49

$

Usually ships in 3-6 days

0

35

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

36

Toro AUH437581

WASHER-THRUST, THIN

$62.99

$

Usually ships in 3-6 days

0

37

Toro AUH437506

SEAL-URETHANE

$215.99

$

Usually ships in 3-6 days

0

38

Toro AUH674887

DISCONTINUED

$

$

Not available

39

Toro AUH435520

BUSHING-SPLINED

$272.99

$

Usually ships in 3-6 days

0

40

Toro AU100-21131

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

41

Toro AUH438061

SEAL-FLYWHEEL

$73.99

$

Usually ships in 3-6 days

0

42

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

43

Toro AU238-5049

O-RING

$12.99

$

Usually ships in 3-6 days

0

44

Toro AUG13075

BEARING-BALL

$148.99

$

Usually ships in 3-6 days

0

45

Toro AU331-70

FLUID-1 lb SAE 90 EP Transmission Oil

Note: Not illustrated

$

$

Currently unavailable
