RT 600 - Toro Riding Trencher Traction Unit (2012) Backhoe Control Valve Inlet Section HD125 Backhoe Parts Diagram

Riding Trencher Traction Unit

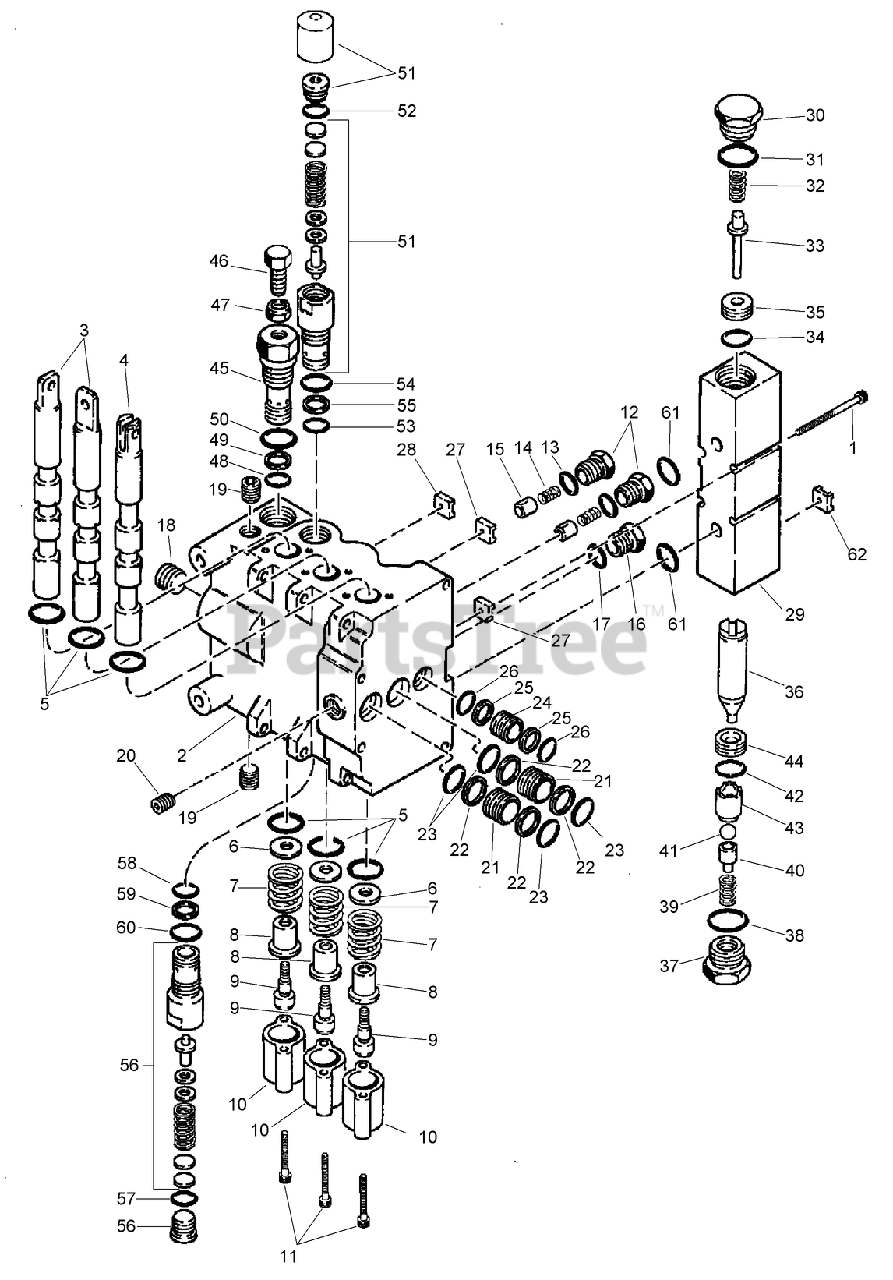

Backhoe Control Valve Inlet Section HD125 Backhoe Parts Diagram

  • Title

Toro AU87400034

HYD CONTROL VALVE ASM

Note: Not illustrated

$

$

Not available

1

Toro AU62-31040

SCREW

$

$

Currently unavailable

Toro AU87407874

SECTION ASM-inlet

Note: Not illustrated

$

$

Not available

2

BODY-inlet section

Note: Not serviced separately

$

$

Not available

3

SPOOL-dual control

Note: Not serviced separately

$

$

Not available

4

SPOOL-stabilizer

Note: Not serviced separately

$

$

Not available

5

Toro AUH438030

DISCONTINUED

$

$

Not available

Toro AUH438021

KIT-CENTER, SPRING

Note: Not illustrated

$193.99

$

Usually ships in 3-6 days

0

6

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro AUN9539

SPRING-RETURN

$

$

Currently unavailable

8

SPACER-spring

Note: Not serviced separately

$

$

Not available

9

BOLT-shoulder, special

Note: Not serviced separately

$

$

Not available

10

Cap-End

Note: Not serviced separately

$

$

Not available

11

Toro AU62-31024

SCREW

$0.99

$

Usually ships in 3-6 days

0

Toro AU87407876

KIT-load check

Note: Not illustrated

$

$

Currently unavailable

12

Toro AUH438231

PLUG ASM

$26.99

$

Usually ships in 3-6 days

0

13

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

14

SPRING-poppet

Note: Not serviced separately

$

$

Not available

15

Poppet-Load Check

Note: Not serviced separately

$

$

Not available

16

Toro AUH438024

LOAD CHECK KIT

$88.99

$

Usually ships in 3-6 days

0

17

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU217-436

PLUG-HEX SOCKET, PIPE

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU217-433

PLUG
(Superseded to AU217-504)

$0.99

$

Usually ships in 3-6 days

0

20

Toro AUH438960

PLUG-SEAL

$33.99

$

Usually ships in 3-6 days

0

21

Toro AUH438028

TUBE

$194.99

$

Usually ships in 3-6 days

0

22

RING-backup, sleeve O-ring

Note: Not serviced separately

$

$

Not available

23

Toro AU238-6211

O-RING

$

$

Not available

24

Toro AUH438029

TUBE

$48.99

$

Usually ships in 3-6 days

0

25

Toro AUH438044

RING-BACKUP

$24.99

$

Usually ships in 3-6 days

0

26

Toro AU238-6015

See Supercession: AU165212

$

$

Not available

27

Toro AU100403A1

PLATE

$

$

Currently unavailable

28

Toro AUH438041

PLATE

$52.99

$

Usually ships in 3-6 days

0

Toro AU87400034

HYD CONTROL VALVE ASM

Note: Not illustrated

$

$

Not available

Toro AU100405A2

VALVE ASM-pilot check

Note: Not illustrated

$

$

Not available

29

BODY-pilot check

Note: Not serviced separately

$

$

Not available

30

Toro AU113751A1

PLUG

$

$

Currently unavailable

31

Toro AU237-6010

O-RING
(Superseded to 237-80)

Note: Included in a service kit or in an assembly

$7.49

$

In Stock, Qty 7

0

32

Toro AU113747A1

SPRING

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

33

Toro AUH438334

POPPET

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

34

Toro AU238-6016

O-RING

Note: Included in a service kit or in an assembly

$0.99

$

Usually ships in 3-6 days

0

35

Toro AU113750A1

SEAT-PILOT

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

36

Toro AU113749A1

PLUNGER

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

37

Toro AUH438031

PLUG

$

$

Currently unavailable

38

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

39

Toro AU102712A1

SPRING

$

$

Not available

40

Toro AUH438032

SLEEVE

$

$

Currently unavailable

41

Toro AU113748A1

BALL-STEEL

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

42

Toro AU238-6016

O-RING

$0.99

$

Usually ships in 3-6 days

0

43

Toro AUH438033

RETAINER

$

$

Currently unavailable

44

Toro AU113746A1

SEAT-PILOT

$

$

Currently unavailable

Toro AUH438940

VALVE ASM-relief

Note: Not illustrated

$

$

Currently unavailable

45

Valve-Relief

Note: Not serviced separately

$

$

Not available

Toro AUH674535

KIT-seal, main relief valve

Note: Not illustrated

$

$

Currently unavailable

46

Toro AUH438229

BOLT

$

$

Currently unavailable

47

Toro AUH438228

NUT

$

$

Currently unavailable

48

Toro AU238-6015

See Supercession: AU165212

$

$

Not available

49

Toro AUH438044

RING-BACKUP

$24.99

$

Usually ships in 3-6 days

0

50

Toro AU238-6017

O-RING

$

$

Not available

Toro AUH438952

VALVE ASM-circuit relief, 1800-1900 psi

Note: Not illustrated

$

$

Currently unavailable

51

Valve-Relief

Note: Not serviced separately

$

$

Not available

Toro AUH674536

KIT-seal, circuit relief valve

Note: Not illustrated

$

$

Currently unavailable

52

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

53

Toro AU238-6014

See Supercession: AU9992298

$

$

Not available

54

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

55

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

Toro AUH438947

VALVE ASM-circuit relief, 4500-4600 psi

Note: Not illustrated

$

$

Currently unavailable

56

Valve-Relief

Note: Not serviced separately

$

$

Not available

Toro AUH674536

KIT-seal, circuit relief valve

Note: Not illustrated

$

$

Currently unavailable

57

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

58

Toro AU238-6014

See Supercession: AU9992298

$

$

Not available

59

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

60

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

61

Toro AU238-6113

See Supercession: AU229317

$

$

Not available

62

Toro AUH438941

ORIFICE

$

$

Currently unavailable
