RT 600 - Toro Riding Trencher Traction Unit (2012) D100 Backhoe Assembly No. 2 Parts Diagram

Riding Trencher Traction Unit

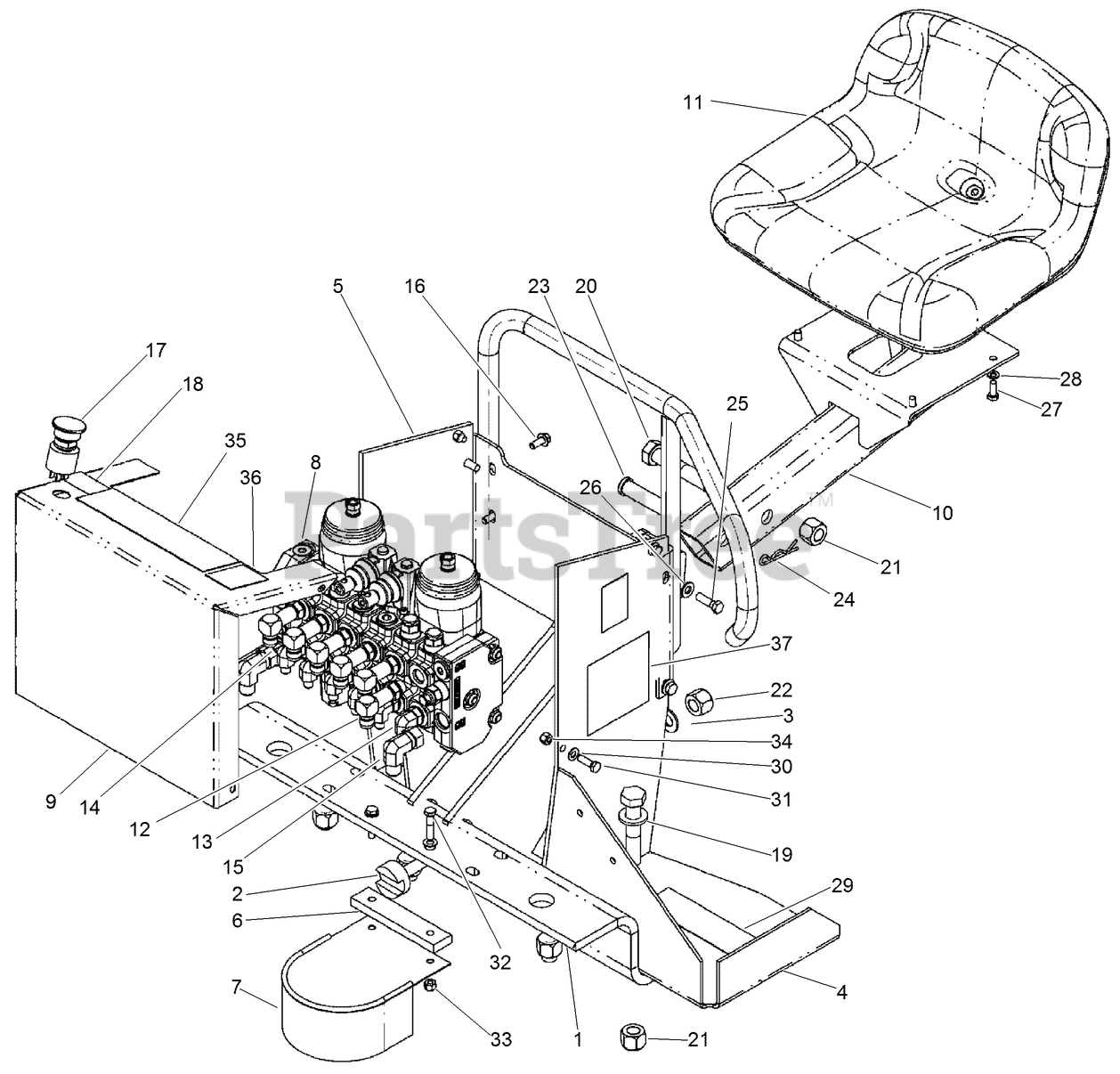

D100 Backhoe Assembly No. 2 Parts Diagram

  • Title

Toro AU125584

ASM-Basic Backhoe, D100

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125585

WELDMENT-Angle, Swg Cyl Mtg

$

$

Currently unavailable

2

Toro AUH434525

GUIDE-Rack.

$

$

Currently unavailable

3

Toro AU495-11066

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

4

Toro AU116164A1

WELDMENT-Guard, LH Foot

$

$

Currently unavailable

5

Toro AU116165A1

WELDMENT-Guard, RH Foot

$

$

Currently unavailable

6

Toro AU139121A1

BAR-Spacer

$

$

Currently unavailable

7

Toro AUH672647

WELDMENT-Cover, Swing Gear

$

$

Currently unavailable

8

Toro AU125583

VALVE-Backhoe, w/Special Low Leak Spools

$

$

Currently unavailable

9

Toro AU125588

COVER-Valve

$

$

Currently unavailable

10

Toro AU121896

POST-Seat, Backhoe

$

$

Not available

11

Toro AU116536

SEAT-BLACK, LOW-BACK
(Superseded to 144-2554)

$251.99

$

Usually ships in 3-6 days

0

12

Toro AU700701358

ELBOW

$17.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

15

Toro AU218-5232

ELBOW-90 SWVL 37FL 5/8 TUBE

$29.99

$

Usually ships in 3-6 days

0

16

Toro AU100872

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU445945A1

BUTTON-E-STOP

$150.99

$

Usually ships in 3-6 days

0

18

Toro AU429180A1

DECAL-Engine Shut-Off

$

$

Currently unavailable

19

Toro AUH426817

WASHER-FLAT

$13.99

$

Usually ships in 3-6 days

0

20

Toro AU426-1260

BOLT-Hex Hd 0.750 x 3.75 GR8 ZND

$

$

Not available

21

Toro AU232-41112

NUT-HEX LOCK 3/4-10 CAD GRD C

$2.49

$

Usually ships in 3-6 days

0

22

Toro AU230-47110

NUT-Hex Lock 5/8-18 CAD GRD A

$

$

Currently unavailable

23

Toro AUS010839

PIN-Seat Lock
(Superseded to AUS10839)

$

$

Not available

24

Toro AU136-164

PIN-HAIR COTTER, INT
(Superseded to 3290-355)

$2.99

$

In Stock, Qty 20+

0

25

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

26

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

27

Toro AU426-512

BOLT

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU492-11031

WASHER-LOCK, 5/16 REG. ZND

$

$

Not available

29

Toro AUH386334

STRIP-Anti-skid, Backhoe Access Steps

$

$

Currently unavailable

30

Toro AUH426775

SEE NOTES - FORWARD TO PARTS REP

$

$

Not available

31

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU426-524

See Supercession: 5-1470
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 9

0

33

Toro AU230-4215

NUT-5/16-18 P/T LOCK GRD A CA

$

$

Not available

34

Toro AU232-4115

NUT-HEX

$

$

Not available

35

Toro AU179079A1

DECAL-Backhoe Control Pattern

$

$

Currently unavailable

36

Toro AU391265A1

DECAL-WARNING, MISUSE HAZARD

$

$

Not available

37

Toro AU419487A1

DECAL-Warning, Lifting with Backhoe

$

$

Currently unavailable
