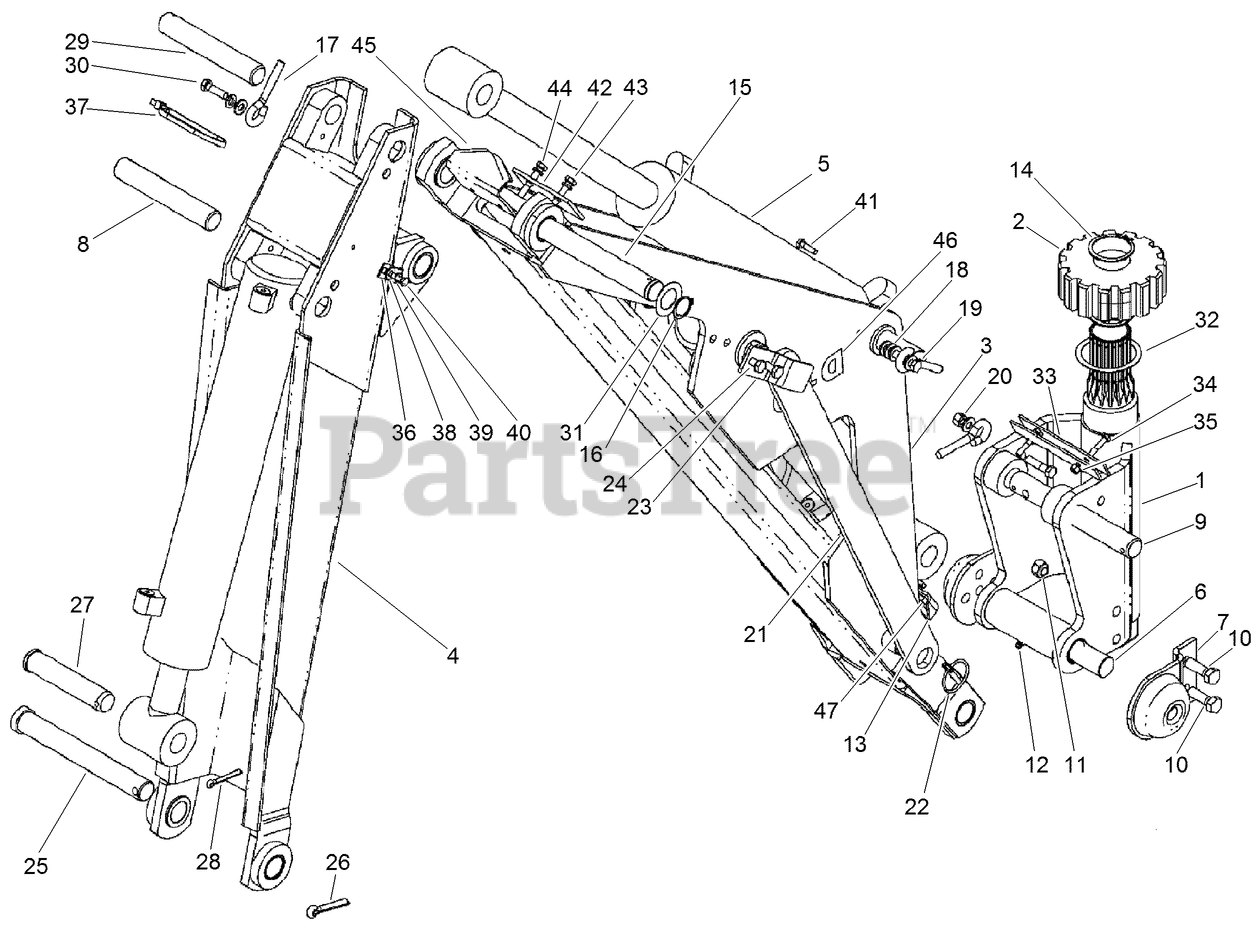

  • Title

Toro AU125584

ASM-Basic Backhoe, D100

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH672641

WELDMENT-Backhoe King Post

$

$

Currently unavailable

2

Toro AUH434489

GEAR-Driven

$

$

Currently unavailable

3

Toro AU102024

See Supercession: AU102024-03
(Superseded to AU102024-03)

$

$

Not available

4

Toro AUH514687

WELDMENT-Dipper Stick

$

$

Not available

5

Toro AUG100936

CYLINDER

$

$

Not available

6

Toro AUH50526

PIN

$106.99

$

Usually ships in 3-6 days

0

7

Toro AUH625756

BUMPER-Rubber, Swing

$

$

Not available

8

Toro AUH50690

PIN

$92.99

$

Usually ships in 3-6 days

0

9

Toro AUH56945

PIN

$139.99

$

Usually ships in 3-6 days

0

10

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

11

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

12

Toro AU219-8

See Supercession: 302-57
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU105441

BRACKET-HOSE RETAINER

$29.99

$

Usually ships in 3-6 days

0

14

Toro AU100-11212

RING-Retainer

$

$

Not available

15

Toro AUH50658

PIN-Dipper Pivot

$

$

Currently unavailable

16

Toro AU103-11112

RING-RETAINING, #112 EXT PLTD

$3.49

$

Usually ships in 3-6 days

0

17

Toro AUH313981

PIN-RETAINER

$77.99

$

Usually ships in 3-6 days

0

18

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU426-624

BOLT-3/8-16 X 1-1/2 GR 8 ZND
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

21

Toro AUH56952

LINK-TRANSPORT

$288.99

$

Usually ships in 3-6 days

0

22

Toro AUA30338

See Supercession: 107-3039
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

23

Toro AU102103

BRACKET-Pin Retainer

$

$

Not available

24

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

25

Toro AUH50682

PIN-CLEVIS

$254.99

$

Usually ships in 3-6 days

0

26

Toro AU432-2432

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

27

Toro AUH257048

PIN

$146.99

$

Usually ships in 3-6 days

0

28

Toro AU432-1628

PIN-COTTER

$3.99

$

Usually ships in 3-6 days

0

29

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

30

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

31

Toro AU195-81016

WASHER-FLAT, 1-9/64 CAD

$26.99

$

Usually ships in 3-6 days

0

32

Toro AUH434429

SHIM-Kingpost

$

$

Currently unavailable

33

Toro AUH434415

BRACKET-Hose Mtg

$

$

Currently unavailable

34

Toro AU426-424

BOLT-Hex Hd 0.250 x 1.50 GR8 ZND

$

$

Not available

35

Toro AU230-4214

NUT-1/4-20 PREV-TORQ LOCK CAD

$

$

Not available

36

Toro AUH51763

CLAMP FLAT, 1-9/64 CAD

$6.49

$

Usually ships in 3-6 days

0

37

Toro AUL18331

STRAP-TIE

$2.99

$

Usually ships in 3-6 days

0

38

Toro AU495-11028

WASHER-FLAT

$

$

Not available

39

Toro AU492-11025

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

40

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

41

Toro AU426-416

BOLT-1/4-20 X 1 GR 8 ZND

$0.99

$

Usually ships in 3-6 days

0

42

Toro AUH61069

FLAP

$14.99

$

Usually ships in 3-6 days

0

43

Toro AU492-11031

WASHER-LOCK, 5/16 REG. ZND

$

$

Not available

44

Toro AU426-532

BOLT-5/16-18 X 2 GR 8 ZND

$0.99

$

Usually ships in 3-6 days

0

45

Toro AUH051755

CLAMP-Tube

$

$

Currently unavailable

46

Toro AU103190

DECAL-D100 BACKHOE-Model Number

$

$

Not available

47

Toro AUH051748

CLAMP-Tube

$

$

Currently unavailable
