RT 600 - Toro Riding Trencher Traction Unit (2012) Intake and Exhaust Assembly Parts Diagram

Riding Trencher Traction Unit

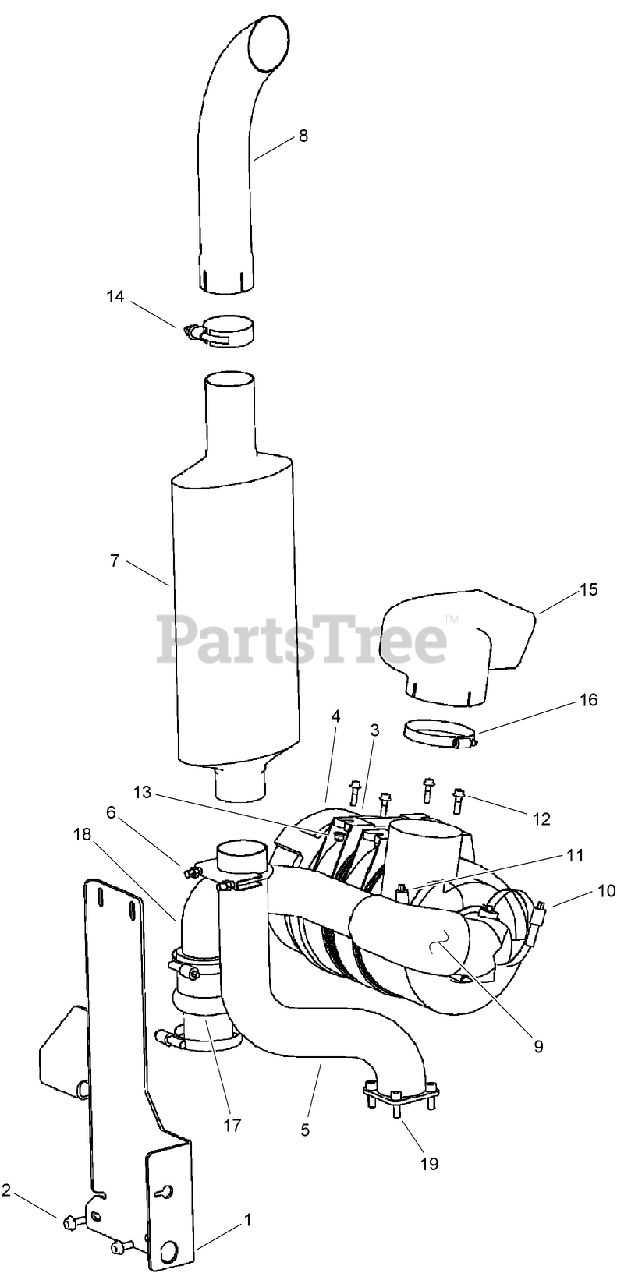

Intake and Exhaust Assembly Parts Diagram

  • Title

Toro AU125338

ASM-Engine and Cooling

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125421

SUPPORT-Muffler Mount

$

$

Currently unavailable

2

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

3

Toro AU8NG10018-07

MOUNT-Air Cleaner
(Superseded to 112-7340)

$107.99

$

Usually ships in 3-6 days

0

4

Toro AU8NG10018-03

ASM-Air Cleaner

$

$

Currently unavailable

5

Toro AU125242

TUBE-EXHAUST

$

$

Currently unavailable

6

Toro AU111840

BOLT-U, CLAMP

$

$

Currently unavailable

7

Toro AU129272A1

MUFFLER-VERTICAL, OVAL

$

$

Not available

8

Toro AU115334

EXHAUST-STACK

$

$

Currently unavailable

9

Toro AU125249

CONNECTOR-AIR INTAKE

$

$

Currently unavailable

10

Toro AU102427

CLAMP-TORQUE, CONSTANT

$18.99

$

Usually ships in 3-6 days

0

11

Toro AU102431

CLAMP-TORQUE, CONSTANT

$43.99

$

Usually ships in 3-6 days

0

12

Toro AU100398

SCREW-FLANGE

$2.99

$

Usually ships in 3-6 days

0

13

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU106185

CLAMP-MUFFLER

$52.99

$

Usually ships in 3-6 days

0

15

Toro AU125498

INTAKE-Air

$

$

Currently unavailable

16

Toro AU214-3180

CLAMP-HOSE, WORM GEAR (HEAVY DUTY)

$

$

Currently unavailable

17

Toro AU125250

CONNECTOR-INTAKE, AIR

$

$

Currently unavailable

18

Toro AU125248

TUBE-INTAKE, AIR

$

$

Currently unavailable

19

Toro AU864-10030

See Supercession: AU862-10030
(Superseded to AU862-10030)

$1.99

$

Usually ships in 3-6 days

0
