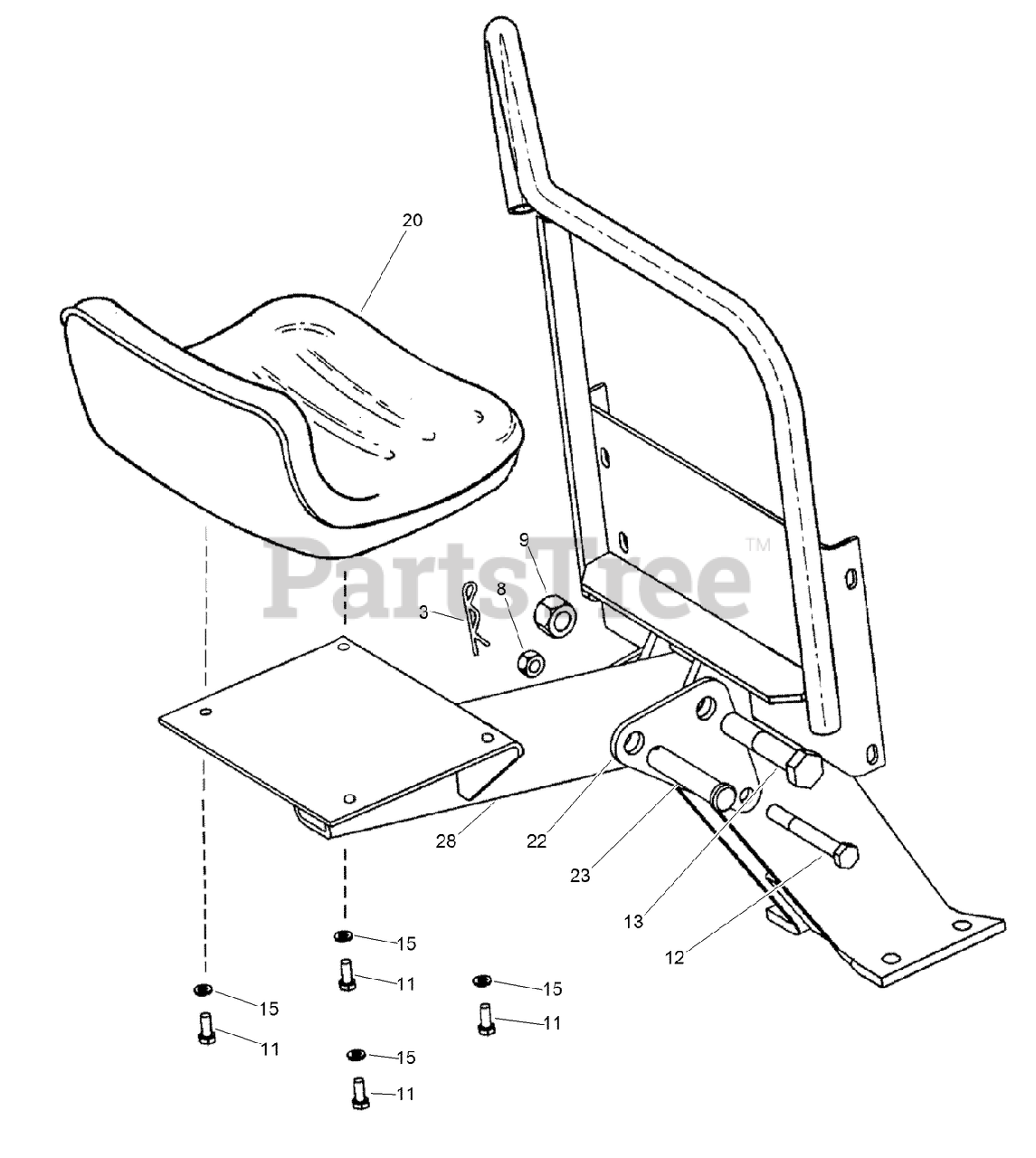

RT 600 - Toro Riding Trencher Traction Unit (2012) Kit - HD125 Seat and Bucket Attach Parts Diagram

Riding Trencher Traction Unit

Kit - HD125 Seat and Bucket Attach Parts Diagram

  • Title

Toro AU102457

KIT-HD125 ATTACH-SEAT/BUCKET

Note: Not illustrated

$

$

Currently unavailable

Toro AU102457

KIT-HD125 ATTACH-SEAT/BUCKET

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100-16150

RING-Retaining
(Superseded to 32151-44)

Note: Not illustrated

$4.99

$

Usually ships in 3-6 days

0

2

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

3

Toro AU136-164

PIN-HAIR COTTER, INT
(Superseded to 3290-355)

$2.99

$

In Stock, Qty 20+

0

4

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5058

CONNECTOR

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

6

Toro AU219-1

See Supercession: 302-2
(Superseded to 302-2)

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

7

Toro AU230-4216

See Supercession: 125-5069
(Superseded to 603773)

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

8

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

9

Toro AU230-42112

NUT-HEX LOCK

$

$

Not available

10

Toro AU231-4146

NUT-Lock 3/8-16 GRD B ZND

Note: Not illustrated

$

$

Currently unavailable

11

Toro AU426-514

BOLT

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU426-864

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

13

Toro AU426-1264

BOLT

$8.49

$

Usually ships in 3-6 days

0

14

Toro AU426-628

See Supercession: 323-52
(Superseded to 323-52)

Note: Not illustrated

$4.99

$

In Stock, Qty 12

0

15

Toro AU492-11031

WASHER-LOCK, 5/16 REG. ZND

$

$

Not available

16

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

Note: Not illustrated

$0.99

$

In Stock, only 4 left!

0

17

Toro AU496-41041

WASHER

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0

18

Toro AU349180A1

PIN

Note: Not illustrated

$218.99

$

Usually ships in 3-6 days

0

19

Toro AU349192A1

SPACER

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

20

Toro AU116536

SEAT-BLACK, LOW-BACK
(Superseded to 144-2554)

$251.99

$

Usually ships in 3-6 days

0

22

Toro AU102292

PLATE-Seat Mounting

$

$

Currently unavailable

23

Toro AU102336

PIN-MOUNT, SEAT

$

$

Currently unavailable

24

Toro AUD25279

RING

Note: Not illustrated

$24.99

$

Usually ships in 3-6 days

0

25

Toro AUH434381

PIN-STABILIZER CYLINDER TO ARM

Note: Not illustrated

$

$

Currently unavailable

26

Toro AUH434382

PIN-Stabilizer Arm

Note: Not illustrated

$

$

Currently unavailable

27

Toro AUH437316

SPACER-Bucket Links

Note: Not illustrated

$

$

Currently unavailable

28

Toro AU121896

POST-Seat, Backhoe

$

$

Not available

29

Toro AU120837A1

ASM-Hose

Note: Not illustrated

$

$

Currently unavailable

30

Toro AU218-736

FITTING-UNION

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0
