RT 600 - Toro Riding Trencher Traction Unit (2012) Kit, Trencher Attachment - Rear Centerline Heavy Duty Trencher Parts Diagram

Riding Trencher Traction Unit

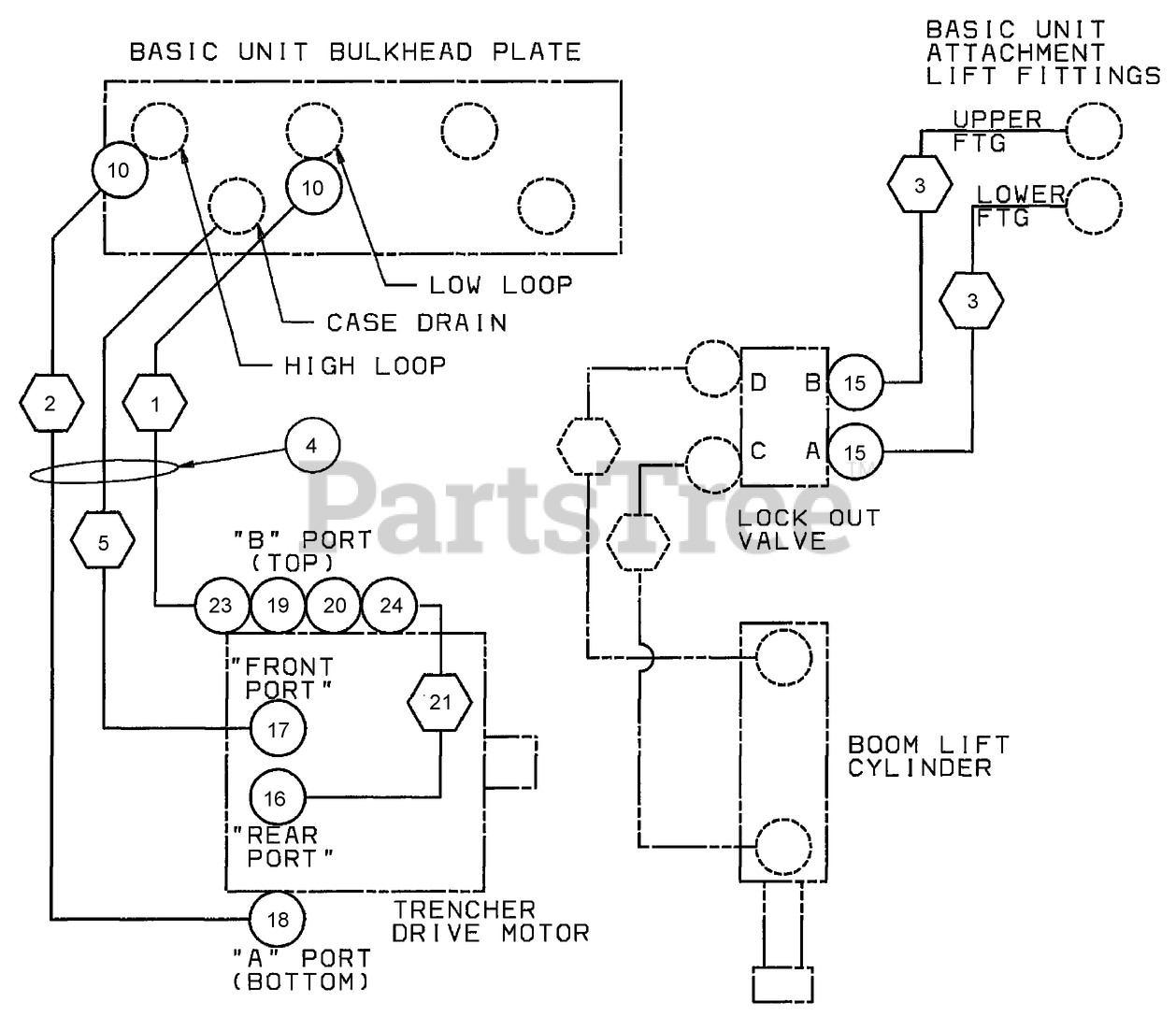

Kit, Trencher Attachment - Rear Centerline Heavy Duty Trencher Parts Diagram

  • Title

Toro AU109609A1

KIT-Heavy Duty Trencher Attachment, Rear Centerline

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU109608A1

HOSE ASM-HYDRAULIC

$212.99

$

Usually ships in 3-6 days

0

2

Toro AU109607A1

HOSE ASM-HYDRAULIC

$401.99

$

Usually ships in 3-6 days

0

3

Toro AU109605A1

HOSE ASM-HYDRAULIC

$92.99

$

Usually ships in 3-6 days

0

4

Toro AUL18331

STRAP-TIE

$2.99

$

Usually ships in 3-6 days

0

5

Toro AU109606A1

HOSE ASM-HYDRAULIC

$83.99

$

Usually ships in 3-6 days

0

6

Toro AU426-1240

BOLT

Note: Not illustrated

$4.99

$

Usually ships in 3-6 days

0

7

Toro AU426-1236

SCREW-HH

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41112

NUT-HEX LOCK 3/4-10 CAD GRD C

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

9

Toro AUH426817

WASHER-FLAT

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

10

Toro AU201-147

REDUCER-16FF-12MF

$

$

Not available

12

Toro AU426-12104

SCREW-HH

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0

13

Toro AU426-1632

BOLT

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

0

14

Toro AUH426833

WASHER

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

16

Toro AU218-5121

ELBOW-1/2 TO 5/8 90 DEG.

$21.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

18

Toro AU218-5064

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

19

Toro AU91-203003-12-16S

ADAPTER-Tee, ORB / JIC

$

$

Not available

20

Toro AUH439323

FITTING-Restrictor

$

$

Currently unavailable

21

Toro AUH437953

HOSE-3/4-16 JIC FM SW

$121.99

$

Usually ships in 3-6 days

0

22

Toro AU7-47343

INSTRUCTIONS-Installation

Note: Not illustrated

$

$

Currently unavailable

23

Toro AU218-5382

ELBOW-SWIVEL, 90 DEG

$62.99

$

Usually ships in 3-6 days

0

24

Toro AU218-5230

ELBOW-90 Swivel 37FL 1/2 Tube

$

$

Not available
