RT 600 - Toro Riding Trencher Traction Unit (2012) Lockout Valve Assembly Parts Diagram

Riding Trencher Traction Unit

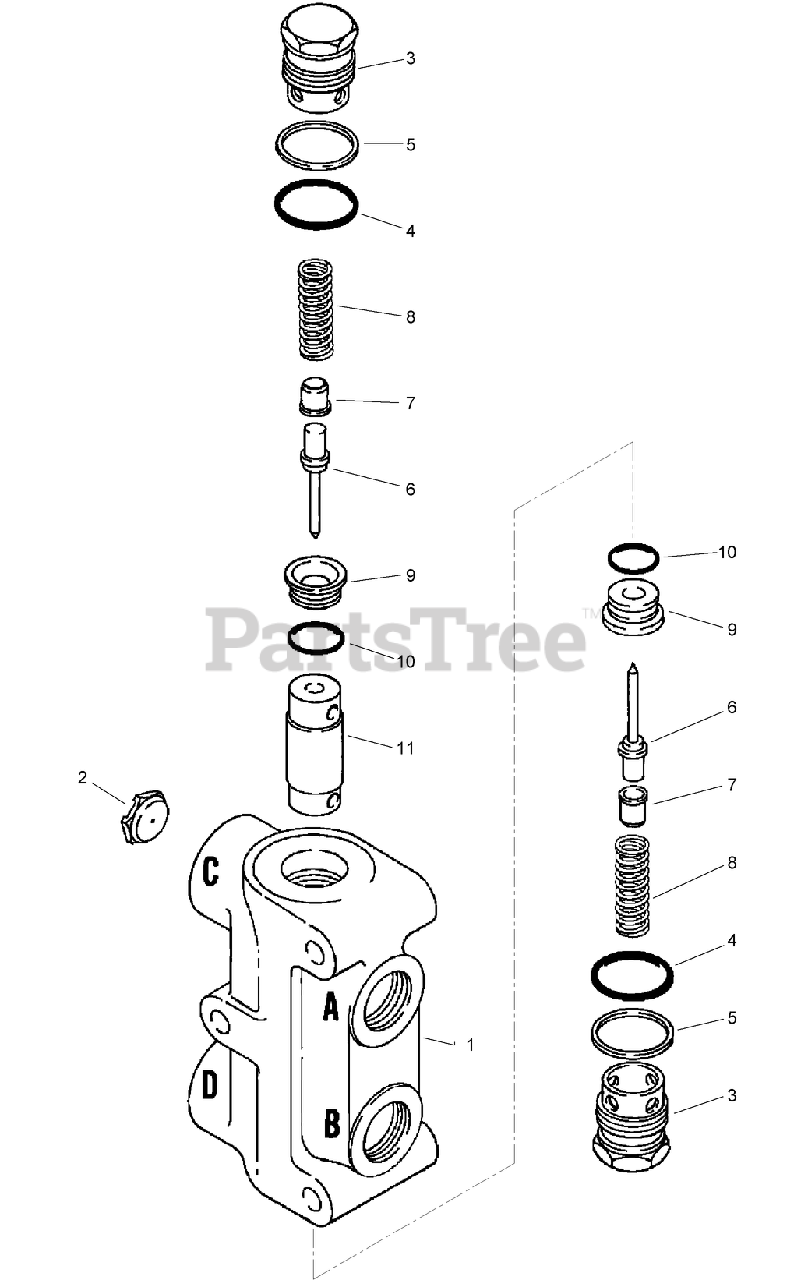

Lockout Valve Assembly Parts Diagram

  • Title

Toro AUH672547

HYD LOCKOUT VALVE ASM

Note: Not illustrated

$

$

Not available

1

Toro AUH267948

DISCONTINUED

$

$

Not available

2

Toro AUH270603

PLATE-ORIFICE

$39.99

$

Usually ships in 3-6 days

0

Toro AUA43525

PLUG ASM

Note: Not illustrated

$85.99

$

Usually ships in 3-6 days

0

3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

4

Toro AU238-6116

See Supercession: AU122057
(Superseded to AU122057)

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUS302062

DISCONTINUED

$

$

Not available

6

Toro AUF88777

See Supercession: 58-6290
(Superseded to 58-6290)

$75.99

$

Usually ships in 3-6 days

0

7

Toro AUN13488

EYELET-POPPET

$

$

Currently unavailable

8

Toro AUA43533

SPRING
(Superseded to AU85069C1)

$

$

Not available

Toro AUN13369

SEAT ASM

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

9

Seat

Note: Not serviced separately

$

$

Not available

10

Toro AU238-6016

O-RING

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUN13489

PLUNGER

$

$

Currently unavailable
