RT 600 - Toro Riding Trencher Traction Unit (2012) Operator's Seat and Control Assembly Parts Diagram

Riding Trencher Traction Unit

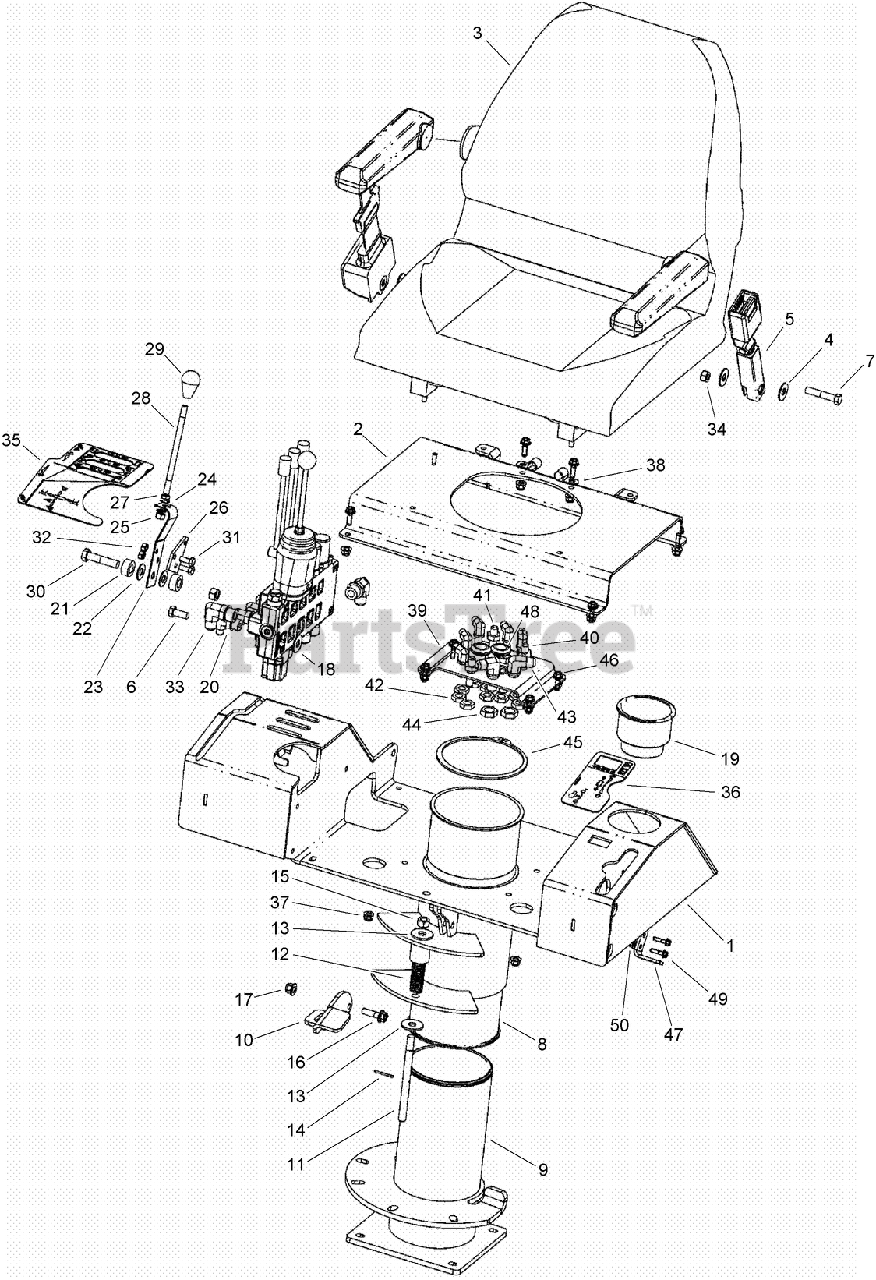

Operator's Seat and Control Assembly Parts Diagram

  • Title

Toro AU125344

ASM-Seat

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125347

WELDMENT-Seat Mount

$

$

Currently unavailable

2

Toro AU126446

WELDMENT-Seat Mount

$

$

Currently unavailable

3

Toro AU126597

SEAT ASM

$

$

Currently unavailable

4

Toro AU495-21050

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU249116A1

SEAT BELT ASM

$290.99

$

Usually ships in 3-6 days

0

6

Toro AU428-716

SCREW-HH

$

$

Not available

7

Toro AU428-736

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

8

Toro AU125246

BEARING-SEAT PIVOT BUSHING

$

$

Currently unavailable

9

Toro AU125352

MOUNT-SEAT

$

$

Currently unavailable

10

Toro AU124119

PLATE-Seat Latch
(Superseded to AU124119-03)

$

$

Not available

11

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

12

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

13

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU432-816

See Supercession: 3272-11
(Superseded to 3272-11)

$1.49

$

In Stock, only 3 left!

0

15

Toro AU425-108

NUT-HEX 1/2-13 GR 5 ZND

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU125537

HYD CONTROL VALVE ASM

$5448.99

$

Usually ships in 3-6 days

0

19

Toro AU8EO24121

CUP-HOLDER

$4.49

$

Usually ships in 3-6 days

0

20

Toro AU218-5128

See Supercession: 353-537
(Superseded to 353-537)

$15.99

$

Usually ships in 3-6 days

0

21

Toro AUH428284

SPACER-GEARBOX

$48.99

$

Usually ships in 3-6 days

0

22

Toro AUH256305

WASHER-FRICTION

$

$

Not available

23

Toro AUH434691

See Supercession: 127-1285
(Superseded to 127-1285)

$77.99

$

Usually ships in 3-6 days

0

24

Toro AU196-1

WASHER-3/8 HT

$

$

Currently unavailable

25

Toro AU425-106

NUT-HEX 3/8-16 GR 5 ZND

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU125544

PLATE-Cable Mtg

$

$

Currently unavailable

27

Toro AU425-146

NUT-HEX JAM 3/8-16 GRD 5 ZINC

$

$

Not available

28

Toro AU114524A1

ROD-LINKAGE

$59.99

$

Usually ships in 3-6 days

0

29

Toro AUA14051

KNOB-CONTROL

$42.99

$

Usually ships in 3-6 days

0

30

Toro AU426-836

See Supercession: 60-9870
(Superseded to 60-9870)

$22.99

$

Usually ships in 3-6 days

0

31

Toro AU413-512

BOLT-5/16-18 X 3/4 GR 5 ZND

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU425-105

NUT-HEX 5/16-18 GR 5 ZND

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU218-5107

ELBOW-90 ADJ 5/8 TUBE

$10.99

$

Usually ships in 3-6 days

0

34

Toro AU425-117

NUT-Hex 0.438-20 UNF GR5 ZND

$

$

Not available

35

Toro AU125589

DECAL-Controls, RH

$

$

Currently unavailable

36

Toro AU125590

DECAL-Controls, LH

$

$

Currently unavailable

37

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU515-23159

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

39

Toro AU126022

PLATE-Seat Bulkhead

$

$

Currently unavailable

40

Toro AU218-693

ELBOW

$28.99

$

Usually ships in 3-6 days

0

41

Toro AU218-673

UNION-BULKHEAD

$8.49

$

Usually ships in 3-6 days

0

42

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.99

$

Usually ships in 3-6 days

0

43

Toro AU218-694

ELBOW

$30.99

$

Usually ships in 3-6 days

0

44

Toro AU218-1255

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

45

Toro AU126291

RING-RETAINING

$

$

Currently unavailable

46

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

47

Toro AU126427

PLATE-Mount

$

$

Currently unavailable

48

Toro AU126438

GROMMET-Rubber

$

$

Currently unavailable

49

Toro AU100870

SCREW-METRIC FLNG W/BDY M6X25

$1.49

$

Usually ships in 3-6 days

0

50

Toro AU100525

NUT-FLNG PREV. TRQ., M6, ZND

$1.49

$

Usually ships in 3-6 days

0
