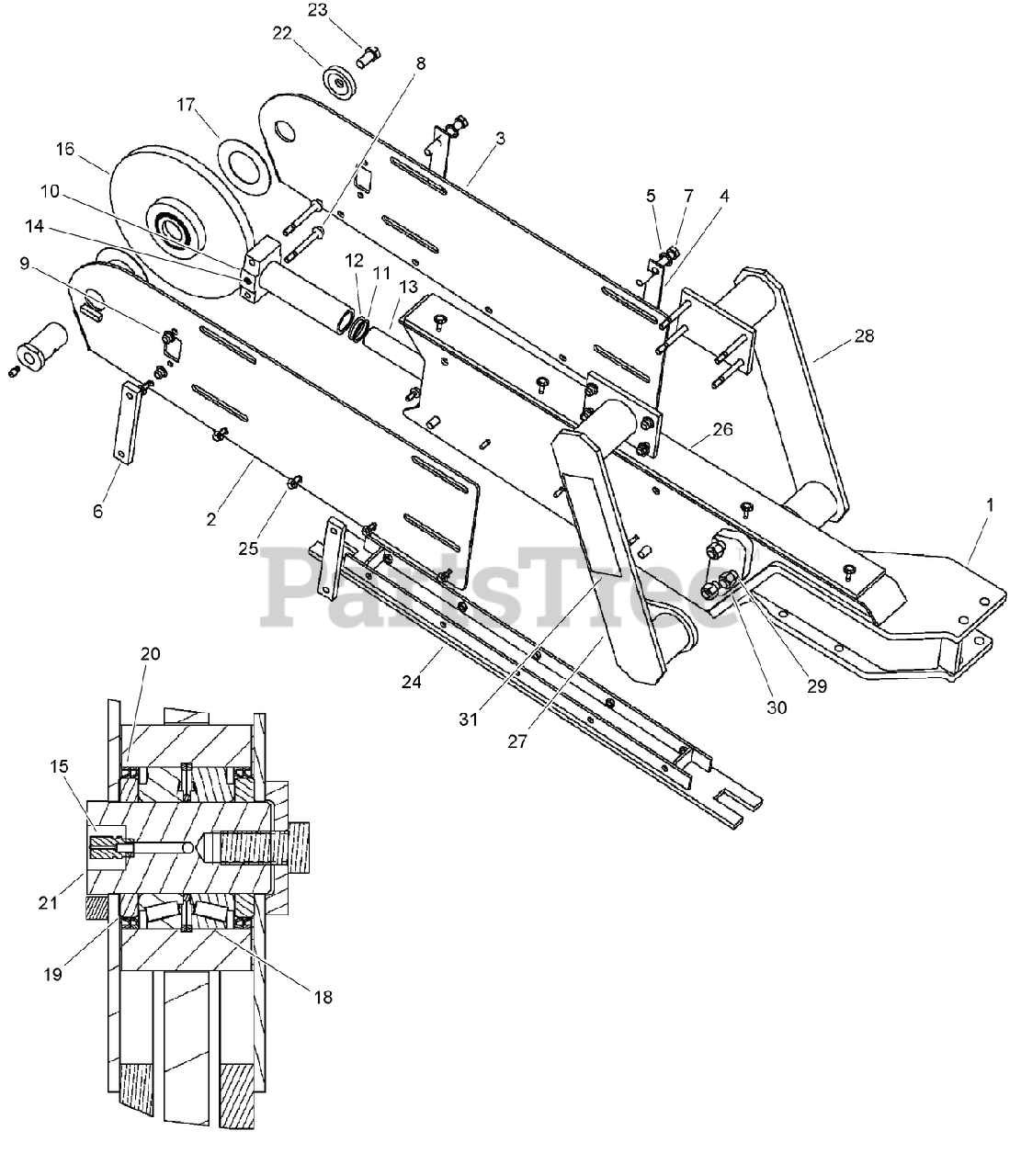

RT 600 - Toro Riding Trencher Traction Unit (2012) Trencher Boom and Mounting Assembly Rock Boom - 4 Foot Integral Quad Trencher Parts Diagram

Riding Trencher Traction Unit

Trencher Boom and Mounting Assembly Rock Boom - 4 Foot Integral Quad Trencher Parts Diagram

  • Title

Toro AU126223

KIT-Rock Boom 4\

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU126224

BOOM-Rock, 4\

$

$

Currently unavailable

2

Toro AU112665A1

PLATE-Boom End (RH)

$

$

Not available

3

Toro AU121502A1

PLATE-Boom End (LH)

$

$

Not available

4

Toro AU101563A1

BAR-Clamp
(Superseded to AU101563A1-03)

$

$

Not available

5

Toro AUH434670

WASHER-LOCK

$

$

Not available

6

Toro AU101562A1

BAR-Tapped
(Superseded to AU101562A1-03)

$

$

Not available

7

Toro AU426-1072

BOLT

$5.49

$

Usually ships in 3-6 days

0

8

Toro AU100356

BOLT-HHF

$

$

Currently unavailable

9

Toro AU100528

NUT-HHF, LOCK

$2.99

$

Usually ships in 3-6 days

0

10

Toro AUH674743

CYLINDER-Boom End
(Superseded to AUH674743-03)

$

$

Not available

11

Toro AUH755009

WASHER-BACKUP

$8.49

$

Usually ships in 3-6 days

0

12

Toro AU238-6327

O-RING

$13.99

$

Usually ships in 3-6 days

0

13

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

14

Toro AUH114728

PLUG-BLEED

$24.99

$

Usually ships in 3-6 days

0

15

Toro AU219-66

FITTING-LUBE, STRAIGHT

$18.99

$

Usually ships in 3-6 days

0

16

Toro AUH675070

BOLLER-Boom End
(Superseded to AUH675070-03)

$

$

Not available

17

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

18

Toro AUH759118

BEARING KIT

$

$

Currently unavailable

19

Toro AUH438569

SPACER-bearing

$

$

Currently unavailable

20

Toro AUH435218

SEAL-ROLLER

$

$

Currently unavailable

21

Toro AUH438570

PIN-BOOM

$

$

Currently unavailable

22

Toro AU139027A1

WASHER

$

$

Not available

23

Toro AU426-1224

BOLT

$

$

Not available

24

Toro AU126640

CHANNEL-Wear Pad, 4\ Boom

$

$

Currently unavailable

25

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU117591A1

BAR-Wear Pad, Upper, 4\ Boom
(Superseded to AU117591A1-03)

$

$

Not available

27

Toro AU117778A1

MOUNT-Crumber RH
(Superseded to AU117778A1-03)

$

$

Not available

28

Toro AU117777A1

MOUNT-Crumber LH
(Superseded to AU117777A1-03)

$

$

Not available

29

Toro AU426-12112

BOLT

$

$

Not available

30

Toro AU232-41112

NUT-HEX LOCK 3/4-10 CAD GRD C

$2.49

$

Usually ships in 3-6 days

0

31

Toro AU419475A1

DECAL-CHAIN ENTANGLE HRZ, IS0

$

$

Not available
