RT 900 (960920030-01) - Poulan Pro Rear-Tine Tiller (2013-07) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

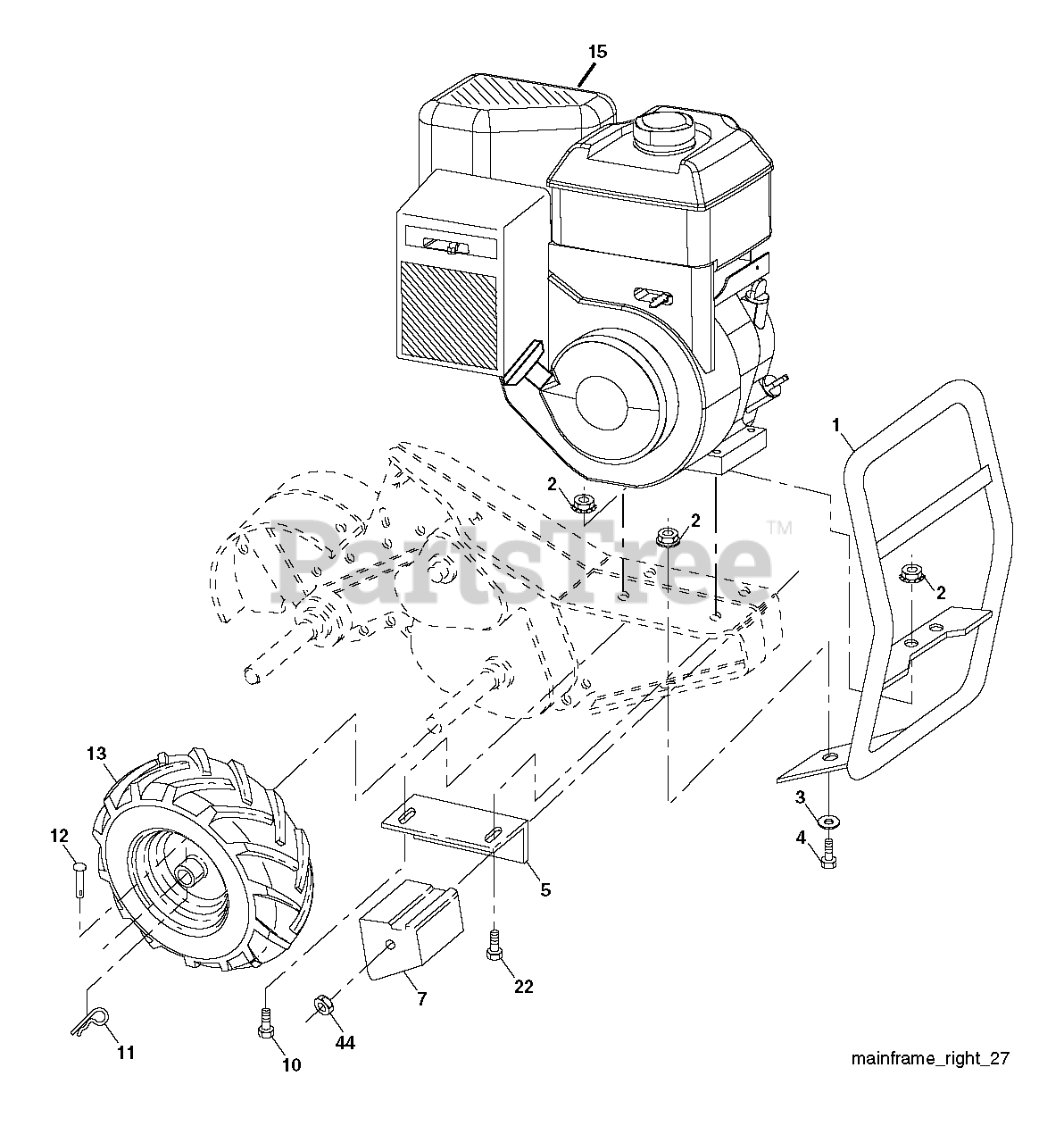

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Poulan 583879301

BUMPER.ASM.TILLER.BLACK

$

$

Not available

2

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

7

Poulan 581010601

COUNTERWEIGHT.LH

Note: RH

$119.99

$

Usually ships in 3-10 days

0

10

Poulan 874760524

BOLT
(Superseded to 539976935)

$3.99

$

In Stock, only 2 left!

0

11

Poulan 532124788

(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

12

Poulan 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

13

Poulan 586532601

$

$

Currently unavailable

--

Poulan 532441869

$

$

Not available

--

Poulan 532124718

(Superseded to 532065139)

$4.99

$

In Stock, Qty 14

0

15

Poulan 000000000

Note: ENGINE B S 12T402-1613-F8 (446085)

$

$

Not available

22

Poulan 874760524

BOLT
(Superseded to 539976935)

$3.99

$

In Stock, only 2 left!

0

44

Poulan 819132012

WASHER

$

$

Not available
