RZ 3016 (966612301-04) - Husqvarna 30" Zero-Turn Mower (2015-04) IGNITION SYSTEM Parts Diagram

30" Zero-Turn Mower

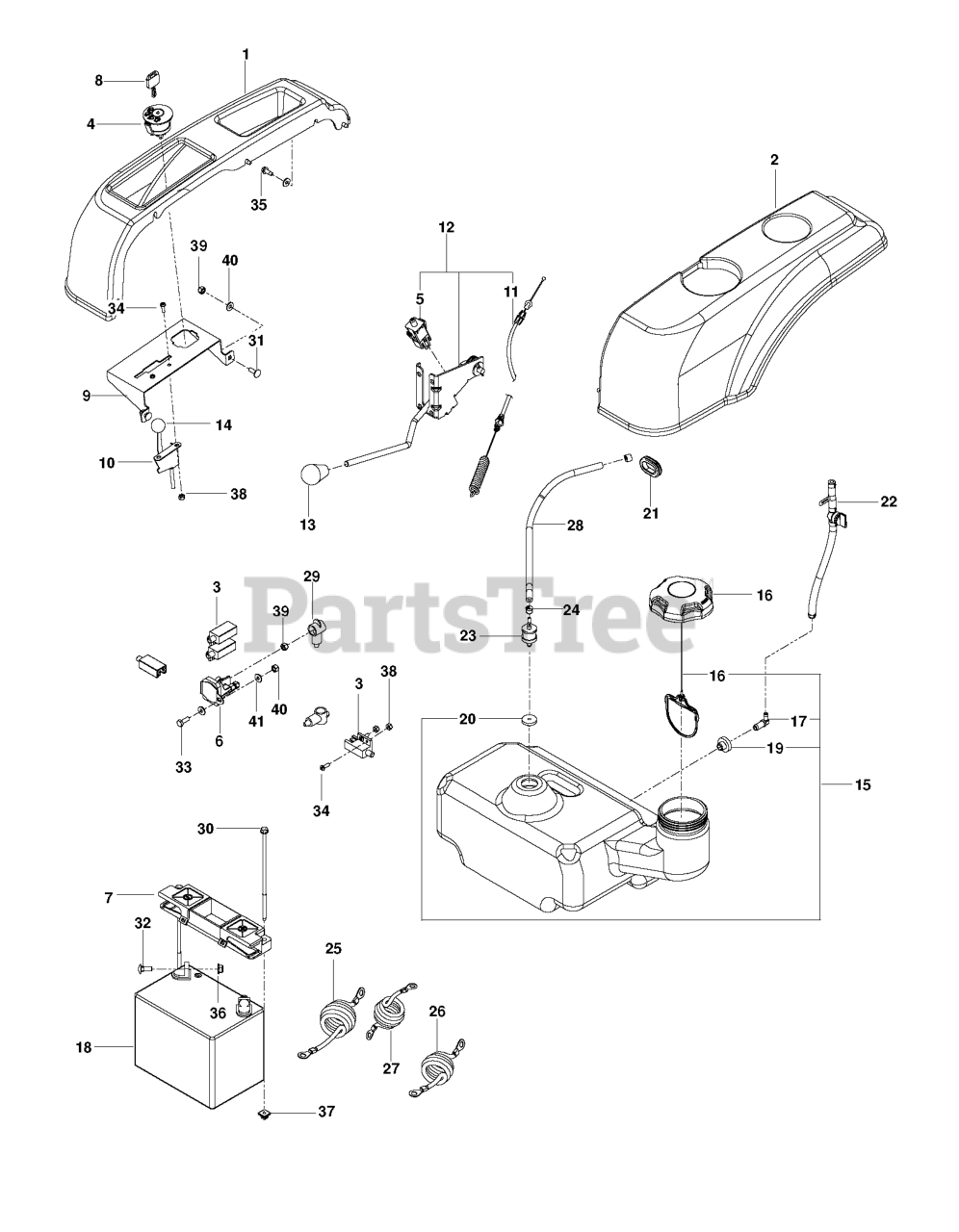

IGNITION SYSTEM Parts Diagram

  • Title

34

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 576646403

FUEL TANK ASM SMALL

$275.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, Qty 6

0

23

Husqvarna 576618101

VALVE.FUEL.CHECK

$30.99

$

In Stock, only 2 left!

0

21

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

11

Husqvarna 585053801

CABLE-CLUTCH ENGAGE

$43.99

$

In Stock, only 2 left!

0

22

Husqvarna 586123907

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 7

0

5

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

12

Husqvarna 585057901

CLUTCH.ENGAGE.ASSEM.W/CABLE

$71.99

$

In Stock, only 2 left!

0

7

Husqvarna 539107628

BATTERY HOLD DOWN

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 575436501

CLAMP, HOSE

$3.99

$

In Stock, only 4 left!

0

2

Husqvarna 525594702

FENDER, RZ 30/38 LT

$

$

Not available

32

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

8

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 585974901

CABLE.THROTTLE.20"

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

37

Husqvarna 539107629

PUSH NUT-NYLON

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$35.99

$

In Stock, Qty 20+

0

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$39.99

$

In Stock, only 2 left!

0

31

Husqvarna 872110406

BOLT
(Superseded to 582735501)

$3.99

$

In Stock, only 4 left!

0

Husqvarna 585507101

HARNESS.WIRING.30/38

$

$

Not available

40

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 596031501)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

9

Husqvarna 525598601

MOUNT, CONTROLS, BLK

$

$

Not available

20

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

6

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

33

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$23.99

$

In Stock, Qty 20+

0

28

Husqvarna 587044564

HOSE.3/16".VAPOR.LINE.64"LGTH

Note: CUT TO LENGTH

$9.99

$

Usually ships in 3-10 days

0

1

Husqvarna 525594701

FENDER, RZ 30/38 RT

$

$

Not available

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

27

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$13.99

$

Usually ships in 3-10 days

0
