SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS730V (SN: 312000000 - 312999999) (2012) Main Frame Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS730V

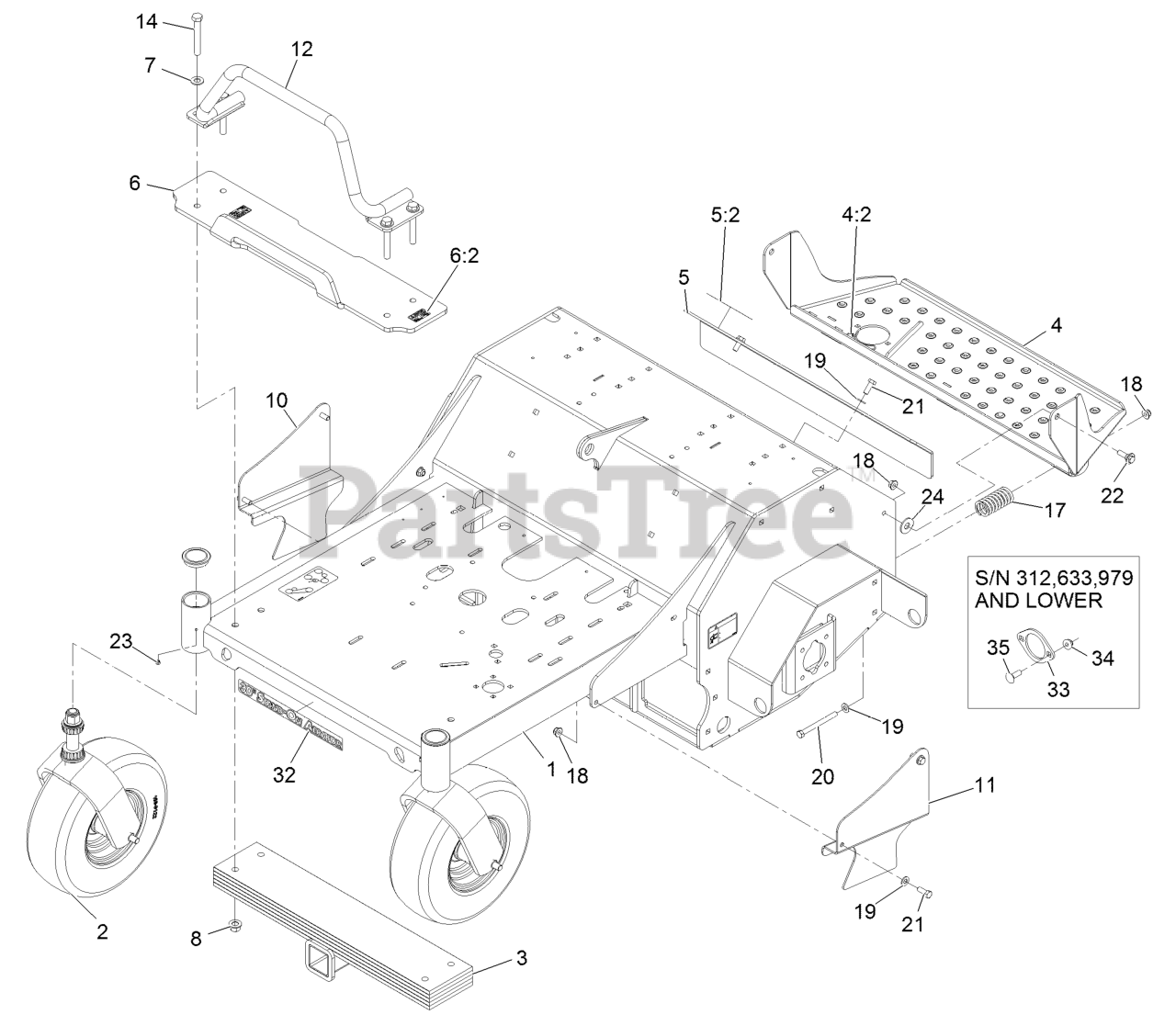

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-6938

Main Frame And Decal Asm

$

$

Currently unavailable

2

Front Caster Asm W/Fork

Note: Not serviced separately

$

$

Not available

3

Exmark 116-6536-01

WEIGHT

$679.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6940

PLATFORM ASM W/DECALS

$

$

Not available

4:2

Exmark 116-6460

DECAL-TINE GROUND ENGAGEM

$

$

Not available

5

Exmark 116-6939

116-7300
(Superseded to 116-7300)

$145.99

$

Usually ships in 3-6 days

0

5:2

Exmark 116-6459

DECAL-TINE GROUND OPERATI
(Superseded to 121-6163)

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 116-6968

WEIGHT MOUNT PLATE ASM

$

$

Not available

6:2

Exmark 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

7

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

10

Exmark 116-6612-01

GUARD-CHAIN, RH

$70.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6611-01

GUARD-CHAIN, LH

$70.99

$

Usually ships in 3-6 days

0

12

Exmark 116-6763-03

GUARD-MUFFLER

$

$

Not available

14

Exmark 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

17

Exmark 116-6767

SPRING-COMPRESSION

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Exmark 614672

SCREW-SHOULDER, HWH

$3.49

$

In Stock, only 3 left!

0

23

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

24

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

32

Exmark 116-6952

DECAL-STAND-ON AERATOR 30

$27.99

$

Usually ships in 3-6 days

0

33

Exmark 116-6605

RETAINER-SPRING

$

$

Not available

34

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0
