SB-826 (31AE6C0F382) - White Outdoor Snow Boss Snow Thrower (1999) Gear Assembly Parts Diagram

Snow Boss Snow Thrower

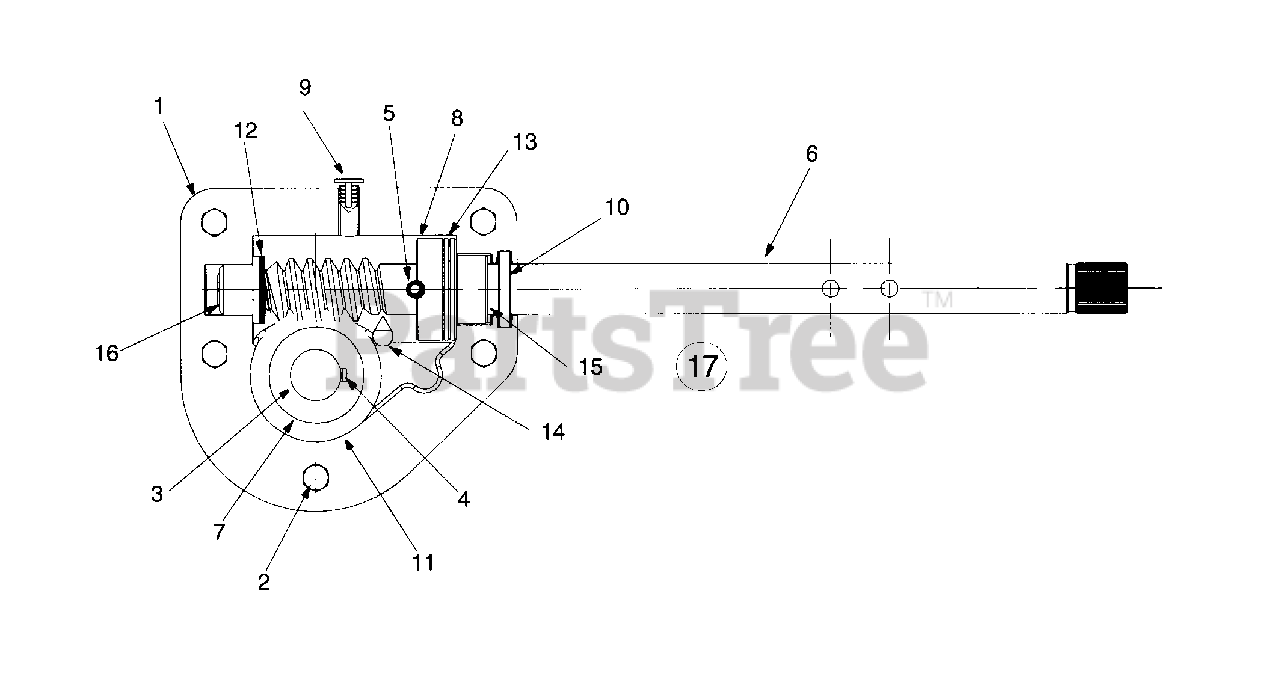

Gear Assembly Parts Diagram

  • Title

1

MTD 918-0123A

Housing - L.H.

$55.99

$

In Stock, only 2 left!

0

1

MTD 918-0124A

Housing - R.H.

$55.99

$

In Stock, only 3 left!

0

2

MTD 710-0642

Hex Screw 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

3

MTD 711-0908A

Spiral Axle 24"

Note: For model 524

$

$

Not available

3

MTD 711-0909A

Spiral Axle 26"

Note: For model 826

$

$

Not available

4

MTD 914-0161

Key

$4.99

$

In Stock, only 1 left!

0

5

MTD 915-0143

Pin-Spiral
(Superseded to 715-0143)

$

$

Not available

6

MTD 717-0526

Shaft-Worm
(Superseded to 717P0526)

$115.99

$

In Stock, only 2 left!

0

7

MTD 917-0528A

Gear-Worm
(Superseded to 917-04861)

$45.99

$

In Stock, only 4 left!

0

8

MTD 718-0186

Collar-Thrust

$8.99

$

In Stock, only 2 left!

0

9

MTD 721-0325

Plug

$4.99

$

In Stock, only 2 left!

0

10

MTD 721-0327

Seal-Oil

$6.99

$

In Stock, Qty 5

0

11

MTD 936-0351

Washer-Flat
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0369

Washer-Flat
(Superseded to 736-0369)

$4.99

$

In Stock, only 4 left!

0

13

MTD 936-0445

Washer-Flat
(Superseded to 736-0445)

$

$

Not available

14

MTD 737-0168A

Grease

$32.99

$

In Stock, Qty 13

0

15

MTD 741-0662

Bearing-Flange

$10.99

$

In Stock, only 3 left!

0

16

MTD 741-0663

Bearing-Flange

$10.99

$

In Stock, only 2 left!

0

17

MTD 918-0414B

Ass'y. Complete 24"

Note: For model 524

$

$

Not available

17

MTD 918-0415B

Ass'y. Complete 26"

Note: For model 826

$

$

Not available
