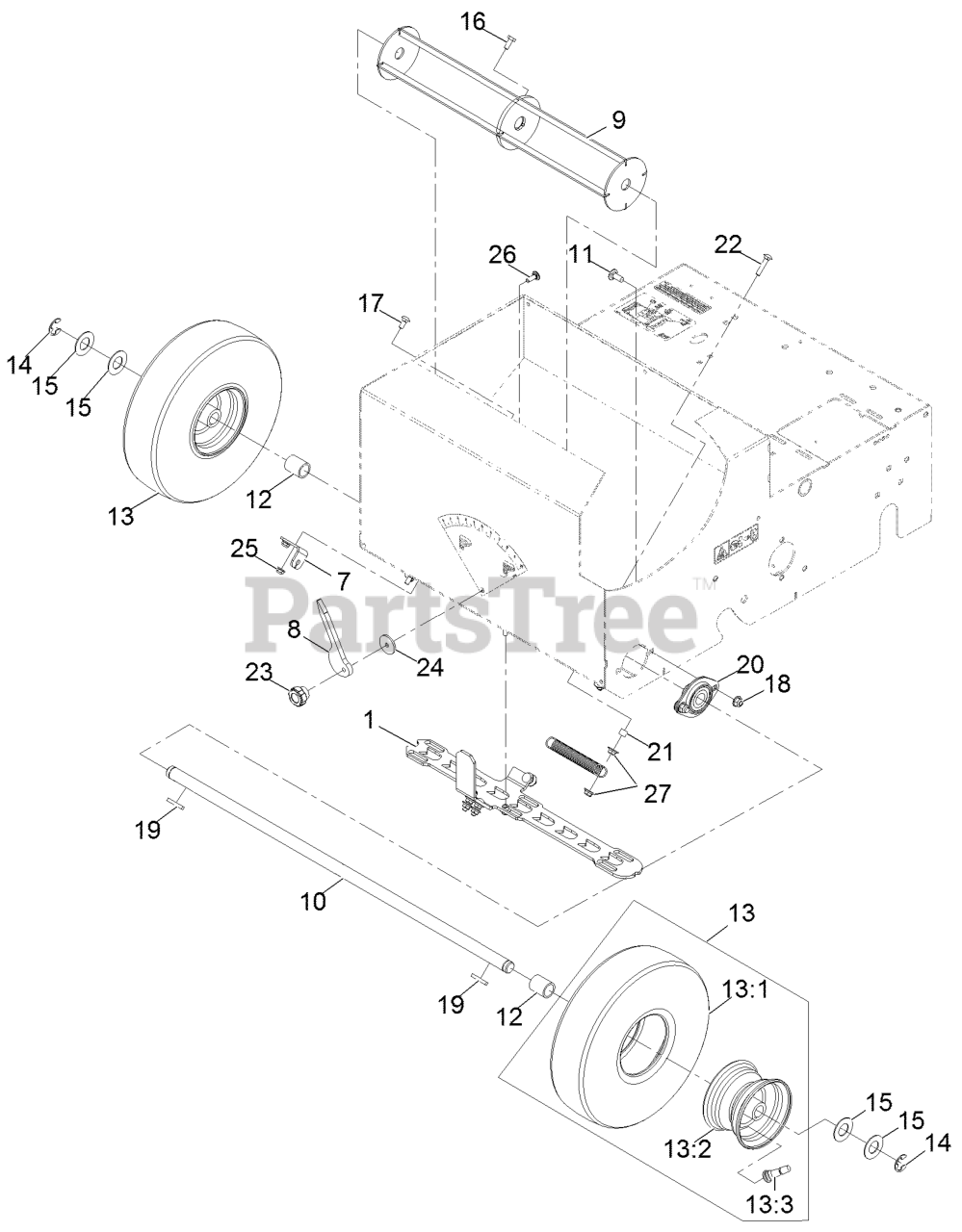

SD270SB20 - Exmark 20" Slicer Seeder (SN: 314000000 - 314999999) (2014) Seed Gate Assembly Parts Diagram

20" Slicer Seeder

Seed Gate Assembly Parts Diagram

  • Title

1

Exmark 126-0815

SEED GATE KIT

$159.99

$

Usually ships in 3-6 days

0

7

Exmark 121-1907

BRACKET-FLOW, SEED

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 121-1912

GAUGE-FLOW, SEED

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 125-3782-03

MIXER

$130.99

$

Usually ships in 3-6 days

0

10

Exmark 121-1929

AXLE-FRONT

Note: Apply anti-seize compound to axle ends before installing tires.

$121.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Exmark 105-3838

SPACER

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 120-3550

WHEEL ASM

$133.99

$

In Stock, only 1 left!

0

13:1

Exmark 121-6081

TIRE

$90.99

$

Usually ships in 3-6 days

0

13:2

Exmark 121-6082

WHEEL-RIM

$60.99

$

Usually ships in 3-6 days

0

13:3

Exmark 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

15

Exmark 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

16

Exmark 321-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 92-0049

KEY-SQUARE

$3.99

$

In Stock, Qty 10

0

20

Exmark 121-1961

BEARING

$43.99

$

In Stock, only 4 left!

0

21

Exmark 66-8010

SPACER

$4.99

$

In Stock, only 3 left!

0

22

Exmark 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 233-67

KNOB-CHUTE

$10.99

$

In Stock, only 2 left!

0

24

Exmark 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

25

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

27

Exmark 114-3778

NUT-HF

$1.49

$

In Stock, Qty 17

0
