SDS270CSB20000 - Exmark 20" Slicer Seeder (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

20" Slicer Seeder

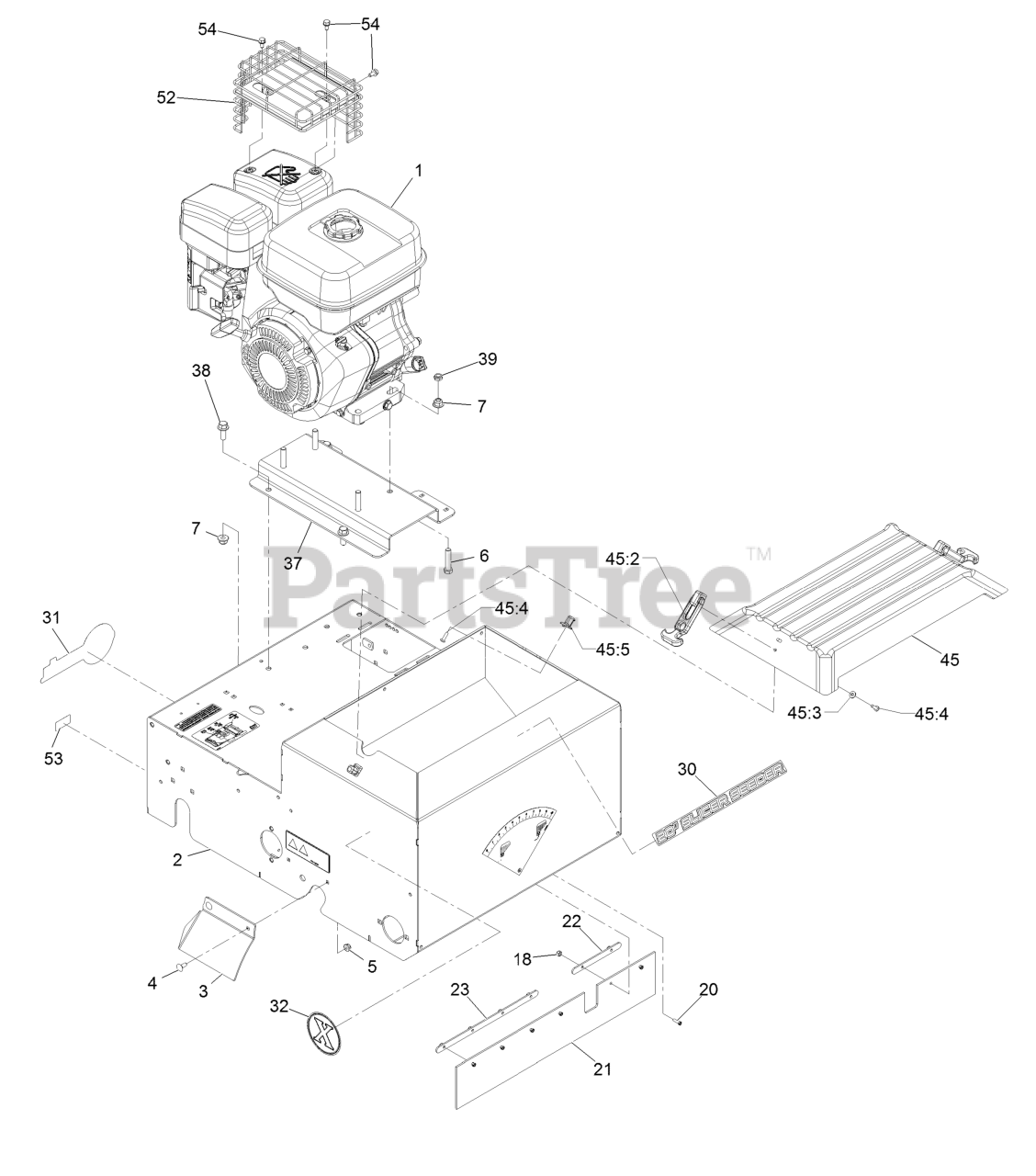

Main Frame Assembly Parts Diagram

  • Title

1

Engine-Subaru, Ex27

$

$

Not available

2

Exmark 121-6196

Frame ASM

$1137.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1896-01

Guard-RH

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 3229-11

Bolt-Carriage 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

5

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3296-1

Nut-Nyloc #8-32

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 3290-392

Screw-SHH #8-32 X 5/8

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 121-1990

Guard-Dust

$38.99

$

Usually ships in 3-6 days

0

22

Exmark 121-1991

Plate-Retainer

$16.99

$

Usually ships in 3-6 days

0

23

Exmark 121-1992

Plate-Retainer

$21.99

$

Usually ships in 3-6 days

0

30

Exmark 126-7031

Decal-Slicer Seeder Logo

$39.99

$

Usually ships in 3-6 days

0

31

Exmark 126-6877

Decal, Exmark Logo

$8.99

$

In Stock, only 2 left!

0

32

Exmark 126-7194

Decal-X-Logo

$13.99

$

Usually ships in 3-6 days

0

37

Exmark 116-9524-01

Plate-Engine

$75.99

$

Usually ships in 3-6 days

0

38

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

39

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

45

Exmark 126-1665

Seeder Cover Kit

$177.99

$

Usually ships in 3-6 days

0

45:2

Exmark 103-4080

Latch-Rubber

$39.99

$

In Stock, only 3 left!

0

45:3

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

45:4

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

45:5

Exmark 103-4081

Latch-Keeper

$15.99

$

Usually ships in 3-6 days

0

52

Exmark 126-4255

Guard, Muffler

$128.99

$

Usually ships in 3-6 days

0

53

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

54

Exmark 104-2628

Screw-HWH M6-1 X 12Mm Tf

$1.99

$

Usually ships in 3-6 days

0
