SRM-1501 - Echo String Trimmer (SN: 0017001 - 0039000) Fuel System Parts Diagram

String Trimmer

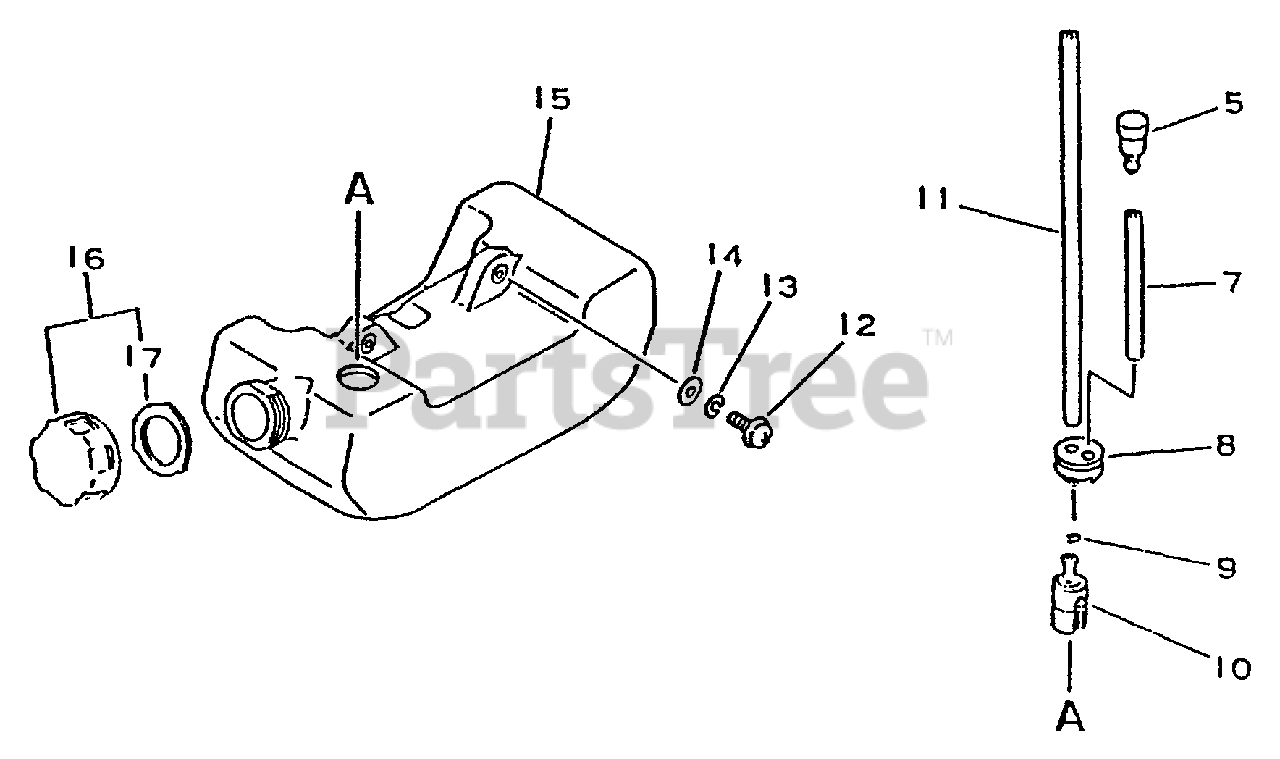

Fuel System Parts Diagram

  • Title

5

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 20+

0

7

Echo 13201044330

PIPE
(Superseded to 13271750430)

Note: 3=5= 70

$2.49

$

In Stock, Qty 17

0

8

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

9

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

10

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

11

Echo 13201013930

PIPE, FUEL
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 90022005016

SCREW 5×16

$0.99

$

In Stock, Qty 6

0

13

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 8

0

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 9

0

16

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes Item 17

$

$

Not available

17

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

Usually ships in 2-4 days

0
