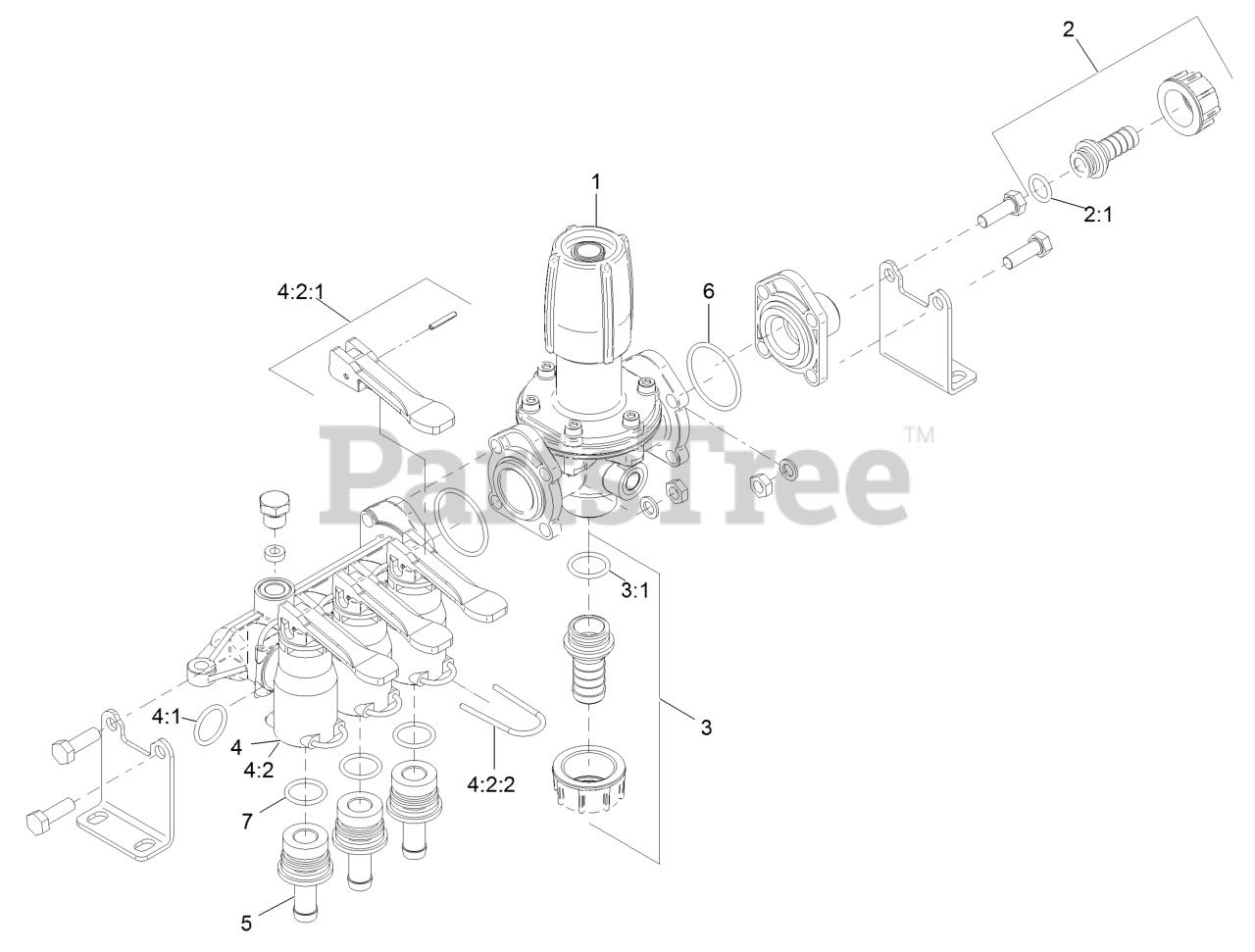

SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Control Valve Manifold Assembly (cont.) Parts Diagram

Spreader Sprayer

Control Valve Manifold Assembly (cont.) Parts Diagram

  • Title

1

Exmark 126-6303

REGULATOR

$392.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6304

FLYNUT ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

2:1

Exmark 126-6322

O-RING KIT, REGULATOR INL

$61.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6317

FLYNUT ASSEMBLY

$13.99

$

In Stock, only 2 left!

0

3:1

Exmark 126-6323

O-RING KIT, REGULATOR OUT

$

$

Not available

4

Valve Assembly W/ O-Ring

Note: Not serviced separately

$

$

Not available

4:1

Exmark 126-6328

O-RING KIT, VALVE INLET

$65.99

$

Usually ships in 3-6 days

0

4:2

Exmark 126-6318

126-7641
(Superseded to 126-7641)

$98.99

$

In Stock, only 2 left!

0

4:2:1

Exmark 126-6319

LEVER AND PIN ASSEMBLY
(Superseded to 126-7641)

$98.99

$

In Stock, only 2 left!

0

4:2:2

Exmark 126-6332

WIREFORM RETAINER KIT

$

$

Not available

5

Exmark 126-6321

HOSE BARB

$28.99

$

In Stock, only 2 left!

0

6

Exmark 126-6326

O-RING KIT, REGULATOR FLA

$89.99

$

Usually ships in 3-6 days

0

7

Exmark 126-6327

O-RING KIT, VALVE OUTLET
(Superseded to 146-6179)

$17.99

$

Usually ships in 3-6 days

0
