SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Ground Drive Assembly Parts Diagram

Spreader Sprayer

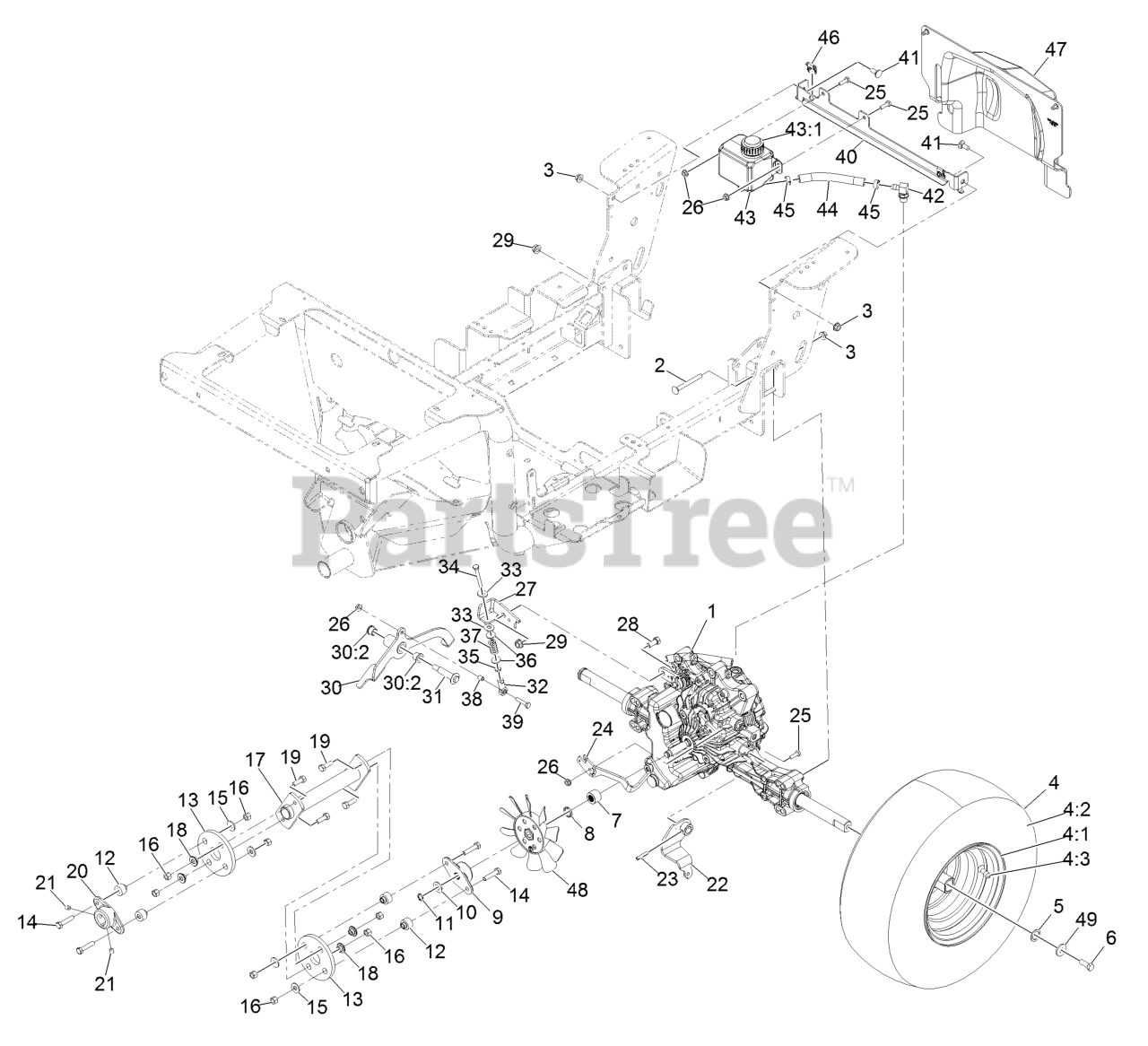

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-2814

TRANSAXLE

$2626.99

$

Usually ships in 3-6 days

0

2

Exmark 126-0703

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 126-2232

135-2881
(Superseded to 135-2881)

$1.99

$

In Stock, only 1 left!

0

4

Exmark 126-1616

135-2520
(Superseded to 135-2520)

$269.99

$

In Stock, only 1 left!

0

4:1

Exmark 126-1617

126-7266
(Superseded to 126-7266)

$

$

Not available

4:2

Exmark 126-1618

TIRE

$140.99

$

Usually ships in 3-6 days

0

4:3

Exmark 232-27

Stem-Valve

$

$

Not available

5

Exmark 47-7510

WASHER-NYLON

$1.49

$

In Stock, Qty 6

0

6

Exmark 126-4246

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 126-2983

SPACER-SHAFT, INPUT

$40.99

$

In Stock, only 1 left!

0

8

Exmark 3290-317

WASHER-SPRING

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 116-9787

HUB-SHAFT, TRANSAXLE

$95.99

$

Usually ships in 3-6 days

0

10

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

11

Exmark 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

12

Exmark 27-6590

SPACER-COUPLING, RUBBER

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 115-4523

COUPLING-RUBBER

$61.99

$

In Stock, Qty 13

0

14

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

15

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32152-5

NUT-HEX

$3.99

$

In Stock, only 2 left!

0

17

Exmark 126-3838-03

SHAFT-DRIVE

$68.99

$

Usually ships in 3-6 days

0

18

Exmark 125-9249

SPACER-COUPLER, RUBBER

$3.49

$

In Stock, only 1 left!

0

19

Exmark 3210-5

SCREW-HH

$4.49

$

In Stock, only 4 left!

0

20

Exmark 116-9788

HUB-SHAFT, ENGINE

$109.99

$

Usually ships in 3-6 days

0

21

Exmark 3246-18

SETSCREW

$5.99

$

Usually ships in 3-6 days

0

22

Exmark 126-6243-03

ARM-MOTION

$65.99

$

Usually ships in 3-6 days

0

23

Exmark 126-4295

PIN-SPIRAL

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-2811-03

ARM-RELEASE

$23.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, Qty 6

0

26

Exmark 126-2231

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 17

0

27

Exmark 126-3937-03

ARM-BRAKE

$21.99

$

Usually ships in 3-6 days

0

28

Exmark 126-0520

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 126-2233

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 17

0

30

Exmark 126-0433

BRAKE LEVER ASM

$106.99

$

Usually ships in 3-6 days

0

30:2

Exmark 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

31

Exmark 92-1057

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

32

Exmark 2411-41

ROD END-BALL JOINT

$47.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

34

Exmark 126-4009

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

38

Exmark 612503

SPACER

$5.99

$

In Stock, only 2 left!

0

39

Exmark 321-8

SCREW-HH

$4.49

$

In Stock, only 1 left!

0

40

Exmark 126-4423-03

BRACKET-MOUNT, TANK

$36.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 126-2927

FITTING-90 DEG

$29.99

$

Usually ships in 3-6 days

0

43

Exmark 126-2578

TANK ASM

$115.99

$

Usually ships in 3-6 days

0

43:1

Exmark 126-2579

CAP-TANK

$13.99

$

Usually ships in 3-6 days

0

44

Exmark 126-2842

HOSE-EXPANSION

$5.99

$

Usually ships in 3-6 days

0

45

Exmark 126-3749

CLAMP

$1.49

$

In Stock, Qty 5

0

46

Exmark 119-1730

RECEPTACLE-CLIP, MINI

$2.99

$

Usually ships in 3-6 days

0

47

Exmark 126-1462

TRANSAXLE COVER ASM

$245.99

$

Usually ships in 3-6 days

0

48

Exmark 126-2980

FAN-7 INCH

$25.99

$

Usually ships in 3-6 days

0

49

Exmark 126-4332

SPACER

$19.99

$

Usually ships in 3-6 days

0
