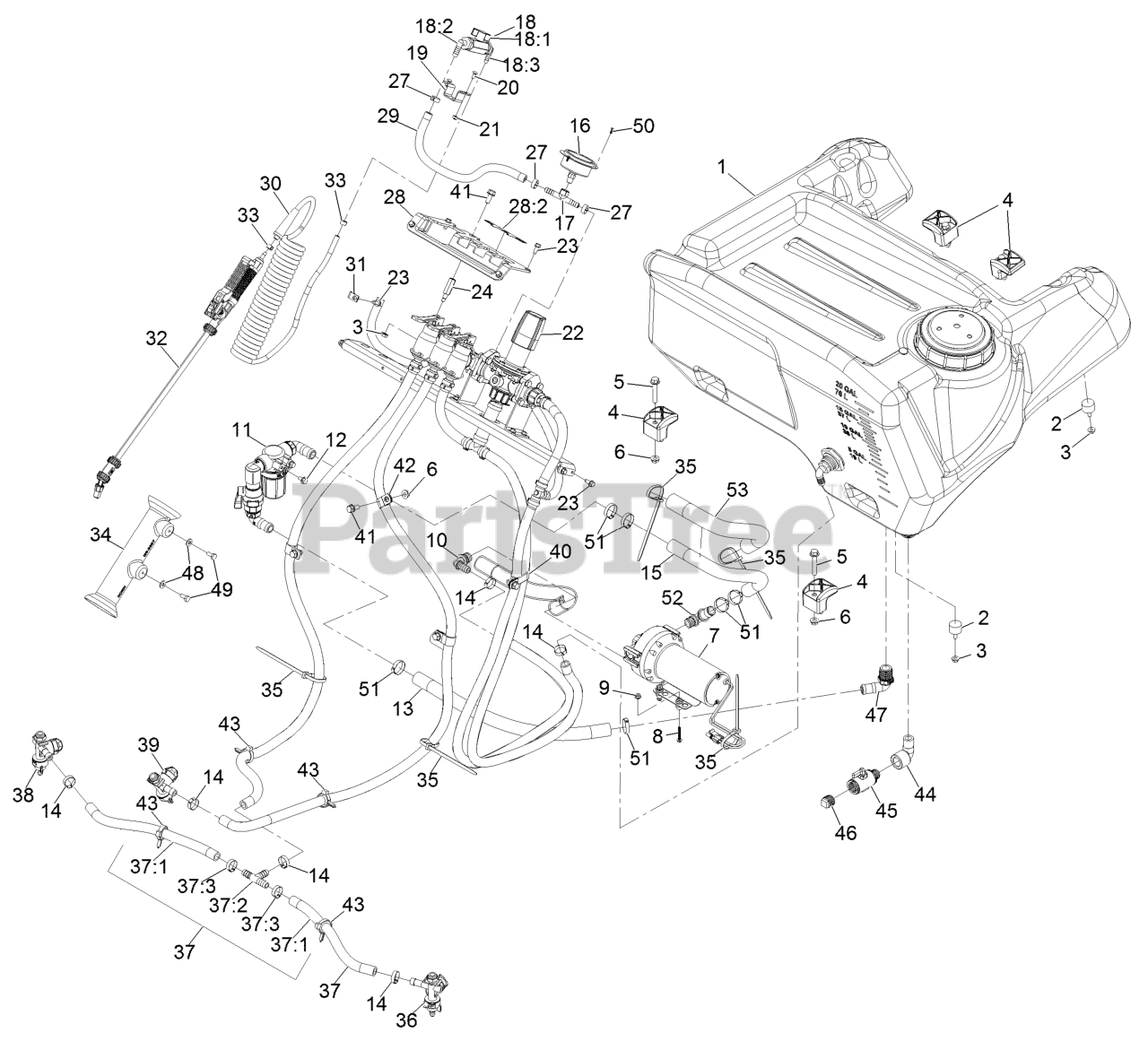

SSS270CSB00000 - Exmark Spreader Sprayer (SN: 315000000 - 315999999) (2015) Spray System Assembly Parts Diagram

Spreader Sprayer

Spray System Assembly Parts Diagram

  • Title

1

Exmark 126-0286

TANK-SPRAYER

$845.99

$

Usually ships in 3-6 days

0

2

Exmark 116-6380

1-523420
(Superseded to 1-523420)

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 126-2231

135-2882
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 17

0

4

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2711

SCREW-HHF

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 126-2232

135-2881
(Superseded to 135-2881)

$1.99

$

In Stock, only 1 left!

0

7

Exmark 126-4839

PUMP-DIAPHRAGM, 3.8 GPM
(Superseded to 142-2301)

$532.99

$

In Stock, only 3 left!

0

8

Exmark 692501

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 126-2645

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

10

Exmark 126-0961

FITTING-ELBOW, BARBED

$11.99

$

In Stock, only 3 left!

0

11

Exmark 126-4358

STRAINER ASM

$179.99

$

In Stock, only 1 left!

0

12

Exmark 126-2713

SCREW-HHF

$5.99

$

In Stock, only 4 left!

0

13

Exmark 126-4422

HOSE-WATER

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 126-4778

CLAMP

$2.99

$

In Stock, Qty 9

0

15

Exmark 126-4637

HOSE-WATER

$39.99

$

Usually ships in 3-6 days

0

16

Exmark 126-4110

GAUGE-PRESSURE

$212.99

$

In Stock, only 1 left!

0

17

Exmark 126-2348

FITTING-TEE

$18.99

$

Usually ships in 3-6 days

0

18

Wand Control ASM

Note: Not serviced separately

$

$

Not available

18:1

Exmark 126-0242

VALVE-BALL

$69.99

$

In Stock, only 3 left!

0

18:2

Exmark 126-4992

FITTING-ELBOW-90
(Superseded to 135-8341)

$1.99

$

In Stock, Qty 20+

0

18:3

Exmark 126-4993

FITTING-ELBOW-90

$5.99

$

In Stock, Qty 15

0

19

Exmark 126-0239-03

BRACKET-VALVE

$20.99

$

Usually ships in 3-6 days

0

20

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Exmark 126-2249

CONTROL VALVE MANIFOLD AS

$1018.99

$

Usually ships in 3-6 days

0

23

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

24

Exmark 126-4914

SPACER-MOUNT, MANIFOLD

$32.99

$

Usually ships in 3-6 days

0

27

Exmark 126-3749

CLAMP

$1.49

$

In Stock, Qty 5

0

28

Exmark 126-4180

COVER-CONTROLS

$143.99

$

Usually ships in 3-6 days

0

28:2

Exmark 126-4161

DECAL-CONTROL, LEVER

$7.49

$

Usually ships in 3-6 days

0

29

Exmark 126-5847

HOSE-WATER, 3/8 PVC RED

$8.99

$

Usually ships in 3-6 days

0

30

Exmark 126-1493

HOSE-COILED

$91.99

$

In Stock, Qty 9

0

31

Exmark 2412-89

CLAMP-R

$2.99

$

In Stock, only 2 left!

0

32

Exmark 126-3944

SPRAY WAND ASM

$158.99

$

In Stock, only 1 left!

0

33

Exmark 126-2707

CLAMP

$1.49

$

In Stock, Qty 20+

0

34

Exmark 126-3987

HOLDER-WAND

$85.99

$

Usually ships in 3-6 days

0

35

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Exmark 126-3667

LEFT NOZZLE SUB ASM

$92.99

$

Usually ships in 3-6 days

0

37

Exmark 126-2252

HOSE ASM

$29.99

$

Usually ships in 3-6 days

0

37:1

Exmark 126-2264

HOSE-WATER

$9.49

$

Usually ships in 3-6 days

0

37:2

Exmark 126-0968

FITTING-TEE

$5.99

$

Usually ships in 3-6 days

0

37:3

Exmark 126-4778

CLAMP

$2.99

$

In Stock, Qty 9

0

38

Exmark 126-3669

RIGHT NOZZLE SUB ASM

$92.99

$

In Stock, only 1 left!

0

39

Exmark 126-3668

CENTER NOZZLE SUB ASM

$92.99

$

Usually ships in 3-6 days

0

40

Exmark 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

41

Exmark 126-2712

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

42

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

43

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

44

Exmark 108-3573

ELBOW-90 DEG

$17.99

$

Usually ships in 3-6 days

0

45

Exmark 126-1494

MICROVALVE

$69.99

$

Usually ships in 3-6 days

0

46

Exmark 363-3125

PLUG

$2.99

$

In Stock, only 2 left!

0

47

Exmark 119-0490

ELBOW-HOSEBARB

$5.99

$

In Stock, only 2 left!

0

48

Exmark 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

49

Exmark 126-1290

SCREW-HH

$1.49

$

In Stock, Qty 7

0

50

Exmark 363-8552

SCREW-TAP

$0.99

$

Usually ships in 3-6 days

0

51

Exmark 126-4779

CLAMP

$2.99

$

In Stock, only 4 left!

0

52

Exmark 126-4420

FITTING-ELBOW

$17.99

$

In Stock, only 2 left!

0

53

Exmark 126-5065

SLEEVE-CORRUGATED, SPLIT

$15.99

$

Usually ships in 3-6 days

0
