SSS270CSB00000 - Exmark Spreader Sprayer (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

Spreader Sprayer

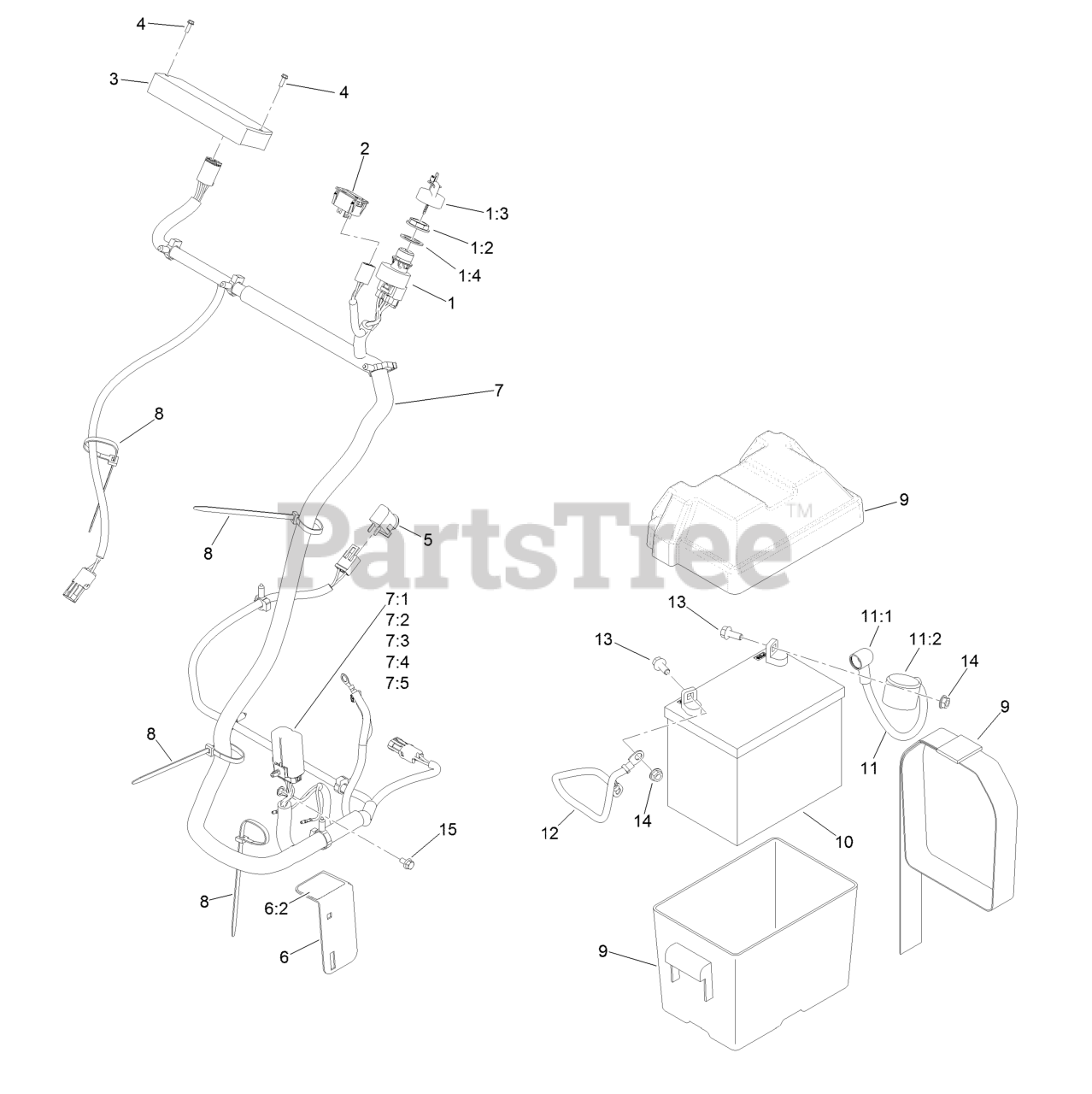

Electrical Assembly Parts Diagram

  • Title

1

Exmark 120-3956

Ignition Switch ASM

$96.99

$

In Stock, only 2 left!

0

1:2

Exmark 108-8660

Nut-Mounting

$38.99

$

Usually ships in 3-6 days

0

1:3

Exmark 106-5270

Ignition Key Set

$25.99

$

In Stock, only 1 left!

0

1:4

Exmark 108-8659

Washer-Backup

$16.99

$

Usually ships in 3-6 days

0

2

Exmark 126-3931

Hour Meter

$81.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6622

Controller-Dc

$1039.99

$

Usually ships in 3-6 days

0

4

Exmark 32144-87

Screw-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

Switch

$15.99

$

In Stock, Qty 20+

0

6

Exmark 126-4656

Fuse Bracket ASM

$66.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-4122

Decal-Fuse

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 126-3458

Harness-Wire

$439.99

$

Usually ships in 3-6 days

0

7:1

Exmark 121-8868

Fuse-Mini Blade, 20 Amp

$6.49

$

Usually ships in 3-6 days

0

7:2

Exmark 126-3991

Relay-Micro

$44.99

$

In Stock, Qty 18

0

7:3

Exmark 126-4101

Cap-Power Distribution Module

$32.99

$

Usually ships in 3-6 days

0

7:4

Exmark 126-4102

Clip-Power Distribution Module

$15.99

$

Usually ships in 3-6 days

0

7:5

Exmark 126-6343

Block-Foam

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Exmark 126-1424

Battery Box

$54.99

$

In Stock, only 1 left!

0

10

Battery (300 CCA, Wet)

$

$

Not available

11

Exmark 116-4730

Cable-Battery, Positive

$22.99

$

Usually ships in 3-6 days

0

11:1

Exmark 1-543393

Insulator-Solenoid

$5.99

$

Usually ships in 3-6 days

0

11:2

Exmark 109-2407

Insulator-Battery

$5.99

$

In Stock, only 2 left!

0

12

Exmark 114-9715

Cable-Battery, Negative

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2712

Screw-HHF 5/16-18 X 3/4 SS

$5.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2881

Nut-Hex Flg

$1.99

$

In Stock, only 1 left!

0

15

Exmark 33103-012

Screw-HHF

$5.99

$

In Stock, only 1 left!

0
