ST 430 - Husqvarna 30" Snow Blower CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

30" Snow Blower

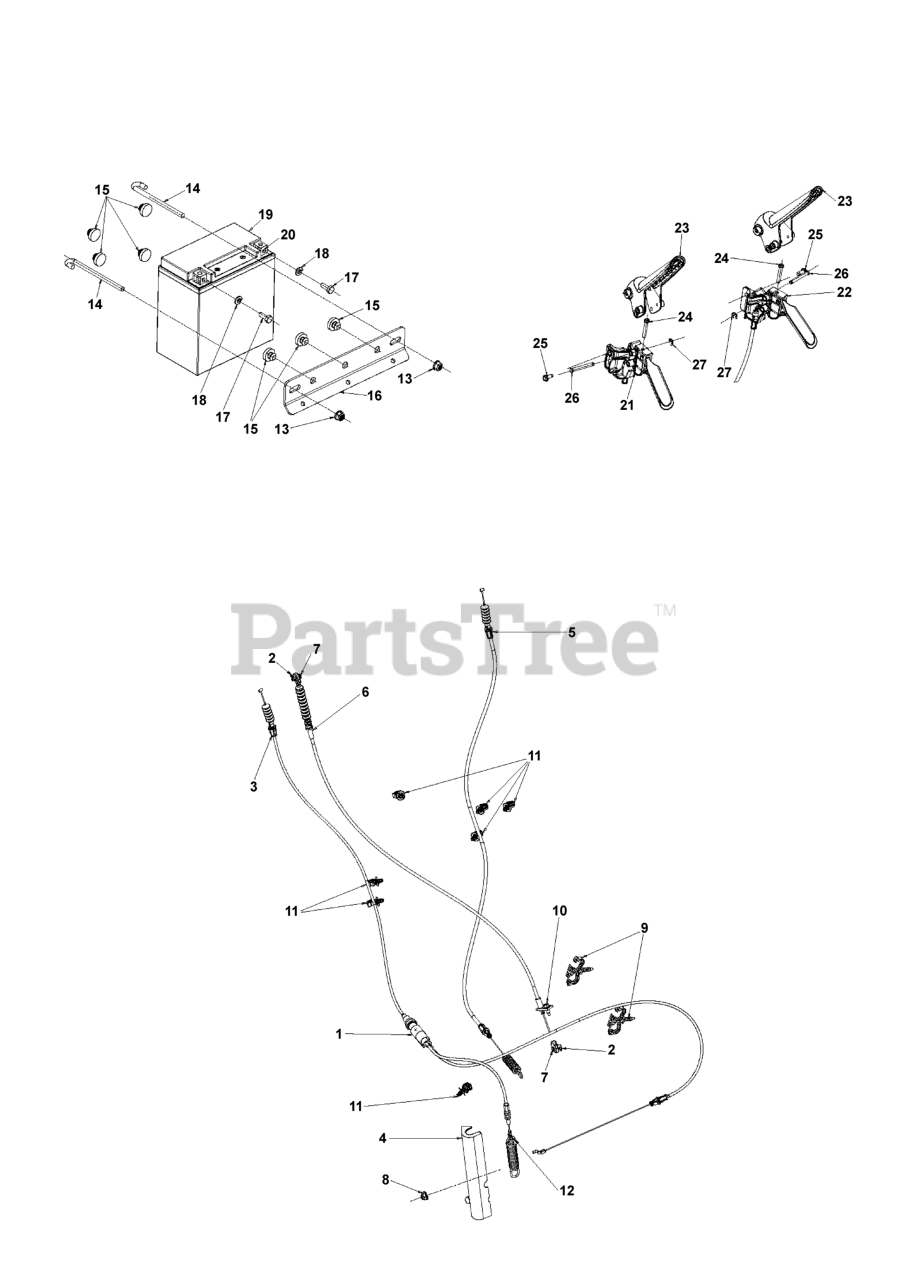

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

13

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.99

$

In Stock, Qty 5

0

21

Husqvarna 589289503

Cables

Note: LH

$33.99

$

Usually ships in 3-10 days

0

8

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 592857401

CABLE, 1/4 BLACK FIR TREE

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589289801

CABLE ASSY DRIVE

$27.99

$

In Stock, only 4 left!

0

16

Husqvarna 590942902

Strap

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, Qty 9

0

12

Husqvarna 594716501

SPRING EXTENSION; AUGER EXTENS

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590026601

CABLE HYDRO SPEED

$39.99

$

In Stock, only 2 left!

0

19

Husqvarna 532437157

BATTERY BATTERY 14AH 12V LEOC
(Superseded to 536147701)

Note: For 96193010400

$167.99

$

Usually ships in 3-10 days

0

20

Husqvarna 594086501

NUT SQUARE M6, 11X8.5 ZPB

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 589803801

Levers

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 17

0

18

Husqvarna 539990053

WASHER 1/4 INT TOOTH

Note: For 96193013101, 97052960100

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 581329501

SCREW HEX_WASH_13-16 X 1.50_H

$5.99

$

In Stock, Qty 9

0

26

Husqvarna 532431762

PIN.GROOVED
(Superseded to 583473901)

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 589289504

Cables

Note: RH

$33.99

$

Usually ships in 3-10 days

0

9

Husqvarna 584652201

CLIP.CONDUIT.DOUBLE LOOP

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 590800901

PIN CLEVIS .25 X ..4375

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 532438039

BOLT.M6-1.0X16MM

Note: For 96193010400

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 589819503

Batteries

Note: For 96193013101, 97052960100

$179.99

$

Usually ships in 3-10 days

0

18

Husqvarna 596029801

WASHER SPRING LOCK WASHER WITH

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 596320101

Bolts

Note: For 96193013101, 97052960100

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 589265201

COVER AUGER CABLE

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 812000014

E-RING

$3.49

$

In Stock, only 1 left!

0

3

Husqvarna 579763601

CABLE IMPELLER

$41.99

$

In Stock, only 2 left!

0

15

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 588839401

HOOK.J.BATTERY

$3.99

$

In Stock, Qty 9

0
