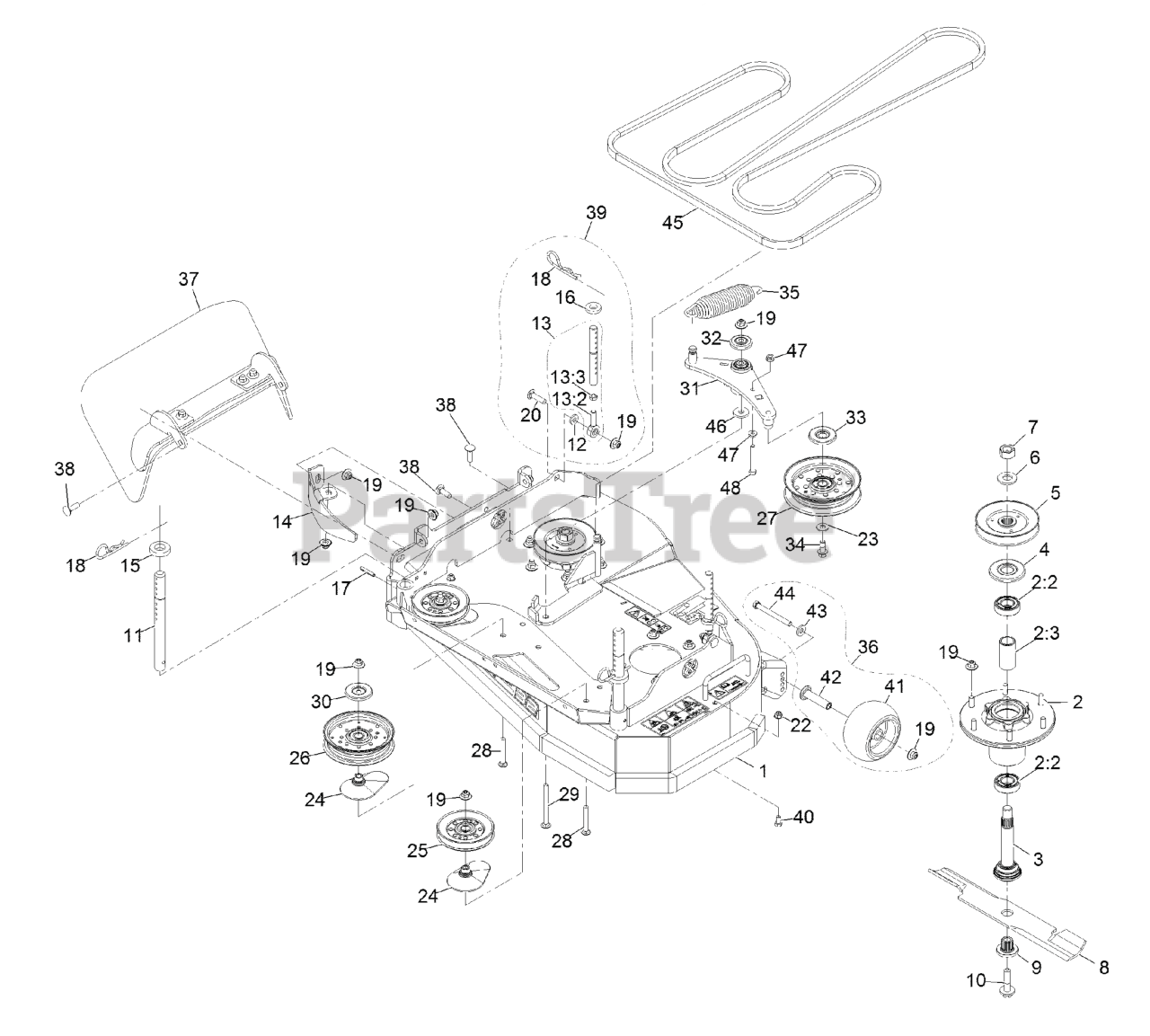

STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Deck Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-1315

ASM-DECK DECALS 32

$1801.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 116-3342

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, only 2 left!

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

5

Exmark 135-4808

SHEAVE-BLADE DRIVE

$36.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

7

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

8

Exmark 116-5177

USE 116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$35.99

$

In Stock, Qty 20+

0

8

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

$34.99

$

In Stock, Qty 20+

0

8

Exmark 103-6391

USE 103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$35.99

$

In Stock, Qty 20+

0

8

Exmark 103-6386

USE 103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$37.99

$

In Stock, only 4 left!

0

8

Exmark 103-6381

USE 103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$37.99

$

In Stock, only 3 left!

0

9

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

10

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

11

Exmark 135-2208

ROD, DECK SUPPORT

$31.99

$

Usually ships in 3-6 days

0

12

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

13

ASM, Support Link

Note: Not serviced separately

$

$

Not available

13:2

Exmark 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

13:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 126-2783-01

BAFFLE, DOGLEG

$55.99

$

Usually ships in 3-6 days

0

15

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 20+

0

16

Exmark 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Exmark 1-806332

USE 32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

18

Exmark 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, Qty 10

0

19

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3231-26

SCREW-CARR

$5.99

$

In Stock, only 4 left!

0

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

25

Exmark 135-4398

Idler - V 4.13 Eod-A

$37.99

$

In Stock, only 2 left!

0

26

Exmark 126-9187

PULLEY-IDLER, FLAT

$66.99

$

In Stock, only 2 left!

0

27

Exmark 126-9196

IDLER-PULLEY, FLAT

$67.99

$

In Stock, Qty 11

0

28

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

29

Exmark 135-0313

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

31

Exmark 135-1679

ASM.-ARM, IDLER

$136.99

$

In Stock, only 1 left!

0

32

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

33

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

34

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 18

0

35

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

36

Exmark 126-7840

KIT-ANTISCALP ROLLER

$54.99

$

Usually ships in 3-6 days

0

37

Exmark 135-2160

RUBBER DEFLECTOR ASM

$197.99

$

Usually ships in 3-6 days

0

38

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

39

Exmark 135-2738

KIT-SUPPORT LINK SVC

$61.99

$

Usually ships in 3-6 days

0

40

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

42

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

43

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

44

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

45

Exmark 135-7353

USE 135-7353-SL
(Superseded to 135-7353-SL)

$166.99

$

In Stock, only 4 left!

0

46

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

47

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

48

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0
