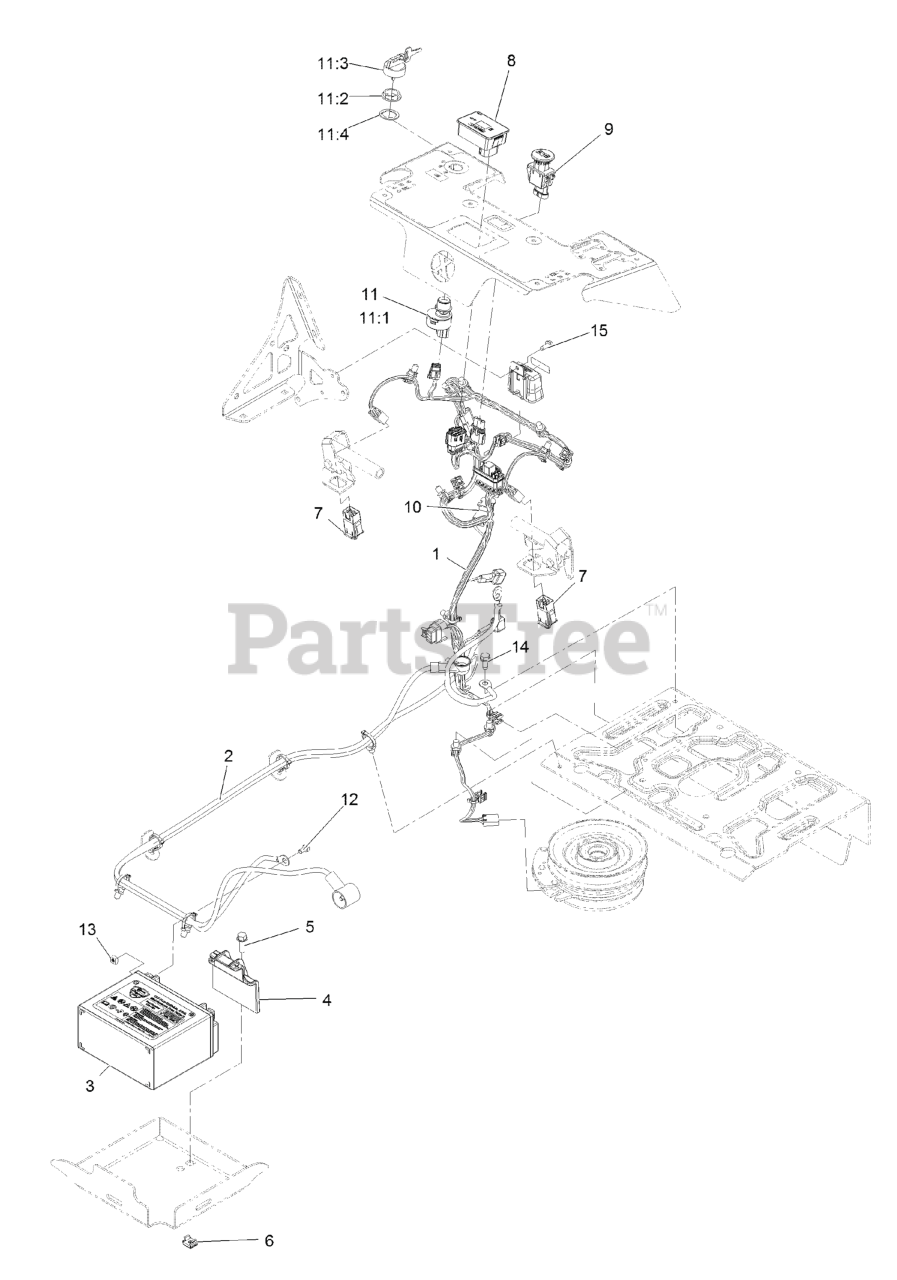

STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-2249

USE 142-2947
(Superseded to 142-2947)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$397.99

$

In Stock, only 1 left!

0

2

Exmark 135-2255

HARNESS-BATTERY

$128.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4421

BATTERY, AGM, NON-SPILLABLE
(Superseded to 142-7345)

$

$

Not available

4

Exmark 135-4422

HOLD DOWN, BATTERY

$8.49

$

In Stock, Qty 5

0

5

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

6

Exmark 135-4473

NUT, SNAP

$3.49

$

In Stock, only 3 left!

0

7

Exmark 104-3338

SWITCH-DELTA

$59.99

$

In Stock, Qty 8

0

8

Exmark 135-7189

Module-Hour Meter

$232.99

$

In Stock, only 1 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

10

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

11

Exmark 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

11:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

11:2

Exmark 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

11:3

Exmark 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 1 left!

0

11:4

Exmark 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

16

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

99

Exmark 135-7732

HARDWARE KIT, BATTERY

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0
