STE600CKA36300 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

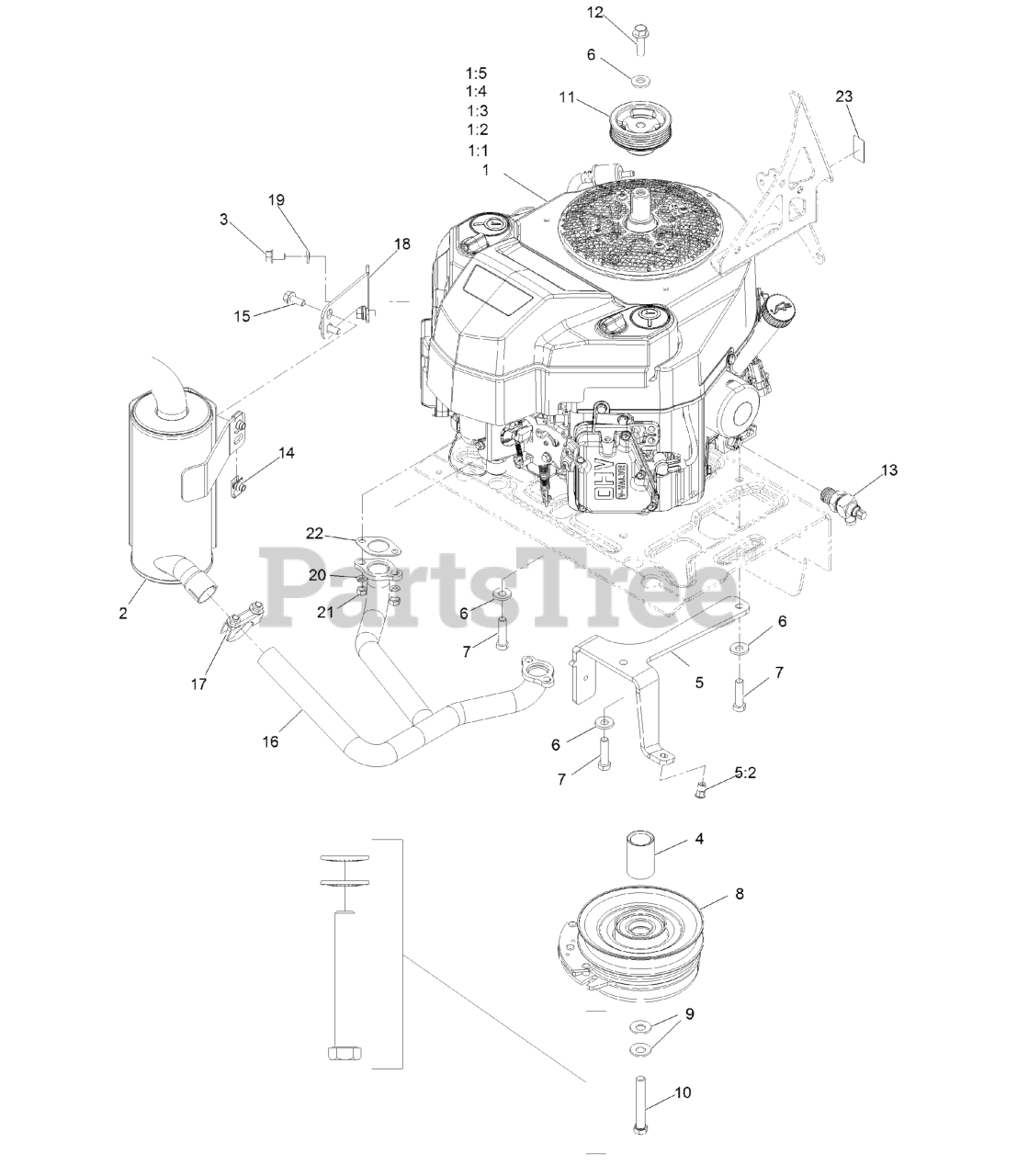

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki Fs600

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Kawasaki 49065-7007Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:2

Kawasaki 49019-0027 Fuel Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:3

Kawasaki 92070-7004 Plug-Spark Bpr4ES

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:4

Kawasaki 11013-7046 Foam Pre-Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:5

Kawasaki 11013-0752 Air Filter

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 135-5025

MUFFLER-VERTICAL KA

$242.99

$

Usually ships in 3-6 days

0

3

Exmark 33104-016

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 135-5028

SPACER-CLUTCH

$8.99

$

In Stock, only 1 left!

0

5

Exmark 135-6711

ASM-CLUTCH ANCHOR W/INSERT

$72.99

$

Usually ships in 3-6 days

0

5:2

Exmark 138-2758

NUT-CLINCH,HEX

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 135-2498

CLUTCH 105

$408.99

$

Usually ships in 3-6 days

0

9

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

10

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 2 left!

0

11

Exmark 135-1198

PULLEY, CRANK

$43.99

$

Usually ships in 3-6 days

0

12

Exmark 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

13

Exmark 135-2660

DRAIN-OIL VALVE

Note: Torque to 23-29 ft-lb

$61.99

$

Usually ships in 3-6 days

0

14

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 104-4090

CLAMP-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

17

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

18

Exmark 135-3828-03

BRACKET-MUFFLER VERTICAL

$16.99

$

Usually ships in 3-6 days

0

19

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

20

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

22

Exmark 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 135-6844

DECAL-10W-50 OIL

$3.49

$

Usually ships in 3-6 days

0
