STE600CKA363H1 - Exmark 36" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Deck Lift Assembly Parts Diagram

36" Staris E-Series Stand-On Mower, Kaw

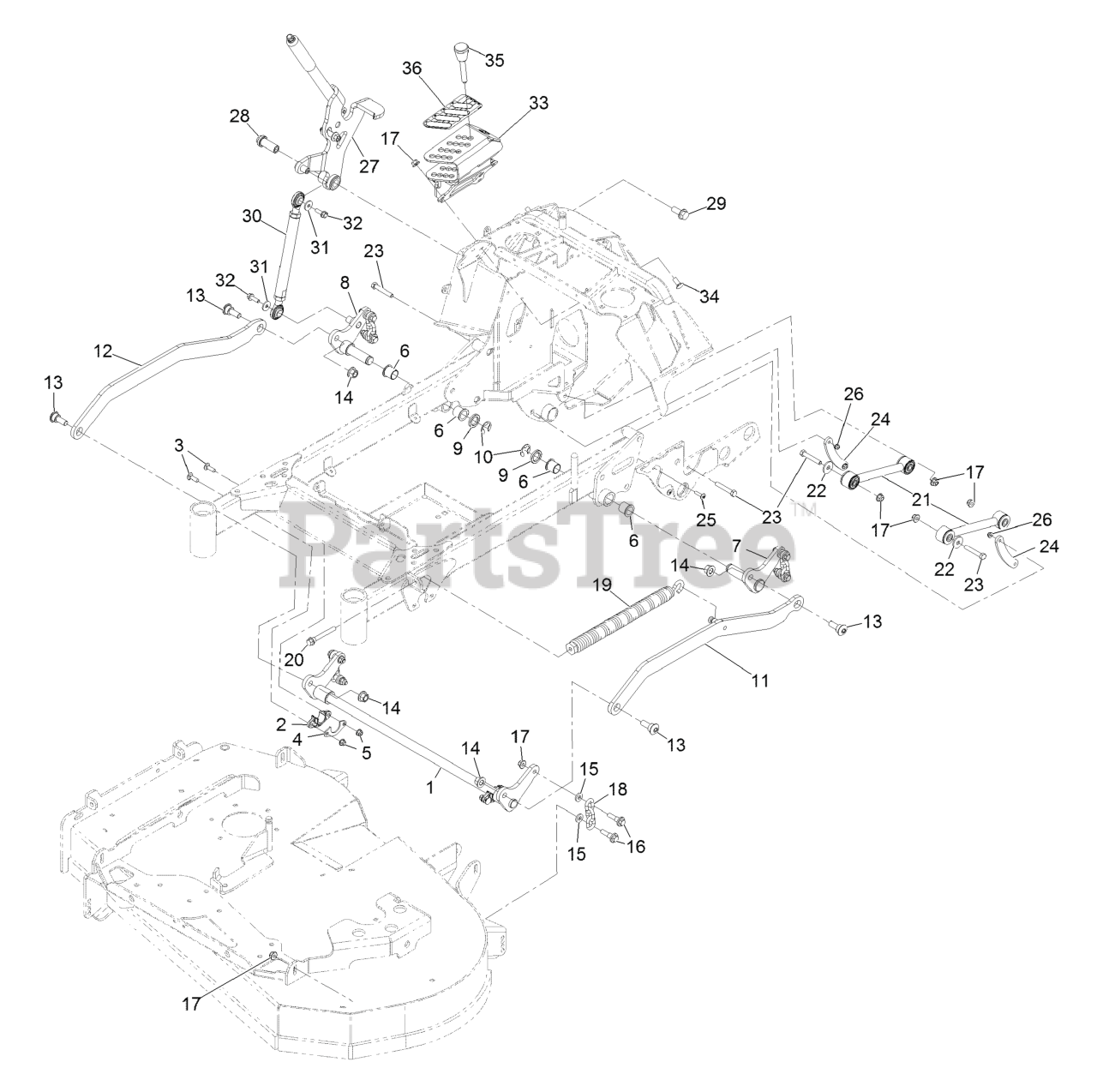

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 142-2566-03

WELD, HOC LIFT SHAFT

$213.99

$

Usually ships in 3-6 days

0

2

Exmark 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, Qty 20+

0

3

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 116-2887

GUSSET-LIFT, DECK

$5.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 135-1248

BUSHING, IGUS

$5.99

$

In Stock, Qty 15

0

7

Exmark 142-2567-03

USE 142-4524-03
(Superseded to 142-4524-03)

$142.99

$

Usually ships in 3-6 days

0

8

Exmark 142-2570-03

WELD, BELLCRANK, RT RR

$156.99

$

Usually ships in 3-6 days

0

9

Exmark 142-3444

SPACER, HOC PIVOT

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

11

Exmark 142-2572-03

WELD, LIFT STRAP, LT

$86.99

$

Usually ships in 3-6 days

0

12

Exmark 142-2573-03

STRAP, LIFT, RT

$86.99

$

Usually ships in 3-6 days

0

13

Exmark 135-1259

BOLT, SHOULDER

$17.99

$

In Stock, Qty 6

0

14

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

15

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

16

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 18

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 103-9859

CHAIN-DECKLIFT

$7.99

$

In Stock, only 2 left!

0

19

Exmark 116-0886

SPRING-EXTENSION

$153.99

$

In Stock, only 1 left!

0

20

Exmark 92-7674

BOLT-SHOULDER

$3.49

$

In Stock, Qty 6

0

21

Exmark 142-2588

ASM, STRUT W/ BUSHINGS

$34.99

$

In Stock, Qty 5

0

22

Exmark 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

23

Exmark 104-3396

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

24

Exmark 142-2772

STRIP, RUB

$16.99

$

Usually ships in 3-6 days

0

25

Exmark 32105-32

SCREW-TTH

$1.49

$

In Stock, only 2 left!

0

26

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Exmark 142-2579

ASM, HOC LEVER

$149.99

$

Usually ships in 3-6 days

0

28

Exmark 142-2181

PIVOT, HOC LEVER

$16.99

$

Usually ships in 3-6 days

0

29

Exmark 3234-38

SCREW-HHF

$6.99

$

In Stock, only 3 left!

0

30

Exmark 142-2581

ASM, LIFT ROD

$130.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603716

WASHER-FRICTION

$5.99

$

In Stock, Qty 20+

0

32

Exmark 115-5142

Screw-HHF

$10.99

$

In Stock, only 2 left!

0

33

Exmark 142-2585-03

WELD, HOC INDEX

$186.99

$

Usually ships in 3-6 days

0

34

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

35

Exmark 126-5401

PIN-HOC

$25.99

$

In Stock, only 2 left!

0

36

Exmark 142-3087

DECAL-HEIGHT OF CUT

$16.99

$

Usually ships in 3-6 days

0
