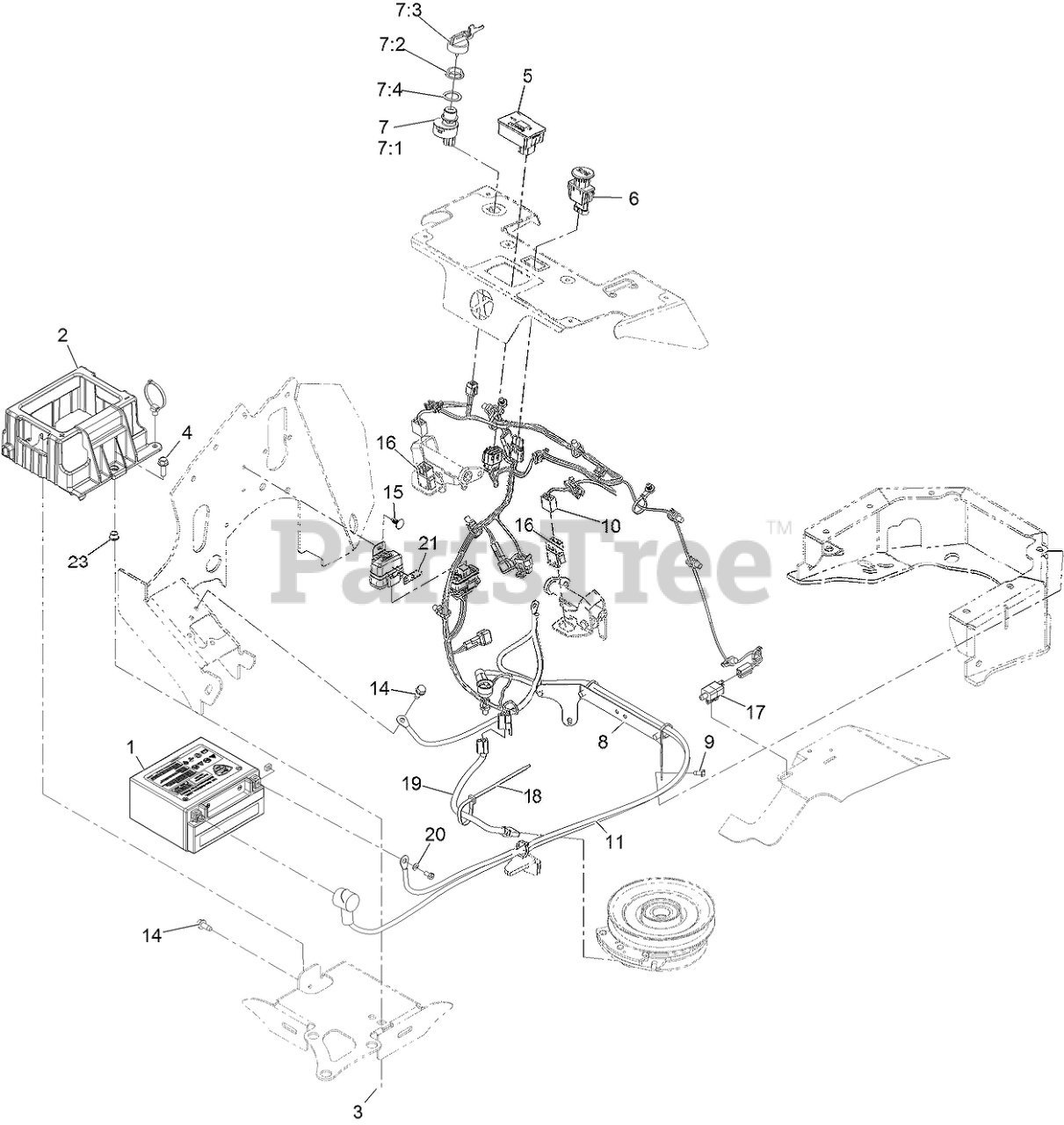

STS650AKC48400 - Exmark 48" Staris S-Series Stand-On Mower, Koh (SN: 406294345 - 408644345) (Rev A) (2020) Electrical Assembly Parts Diagram

48" Staris S-Series Stand-On Mower, Koh

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-4421

Battery, Agm
(Superseded to 142-7345)

$

$

Not available

2

Exmark 142-2450

Box, Battery

$21.99

$

Usually ships in 3-6 days

0

3

Exmark 135-4473

Nut, Snap

$3.49

$

In Stock, only 3 left!

0

4

Exmark 115-5142

Screw-HHF

$10.99

$

In Stock, only 2 left!

0

5

Exmark 135-7189

Module-Hour Meter

$232.99

$

In Stock, only 1 left!

0

6

Exmark 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

7

Exmark 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

7:1

Switch-Ignition

Note: Not serviced separately

$

$

Not available

7:2

Exmark 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

7:3

Exmark 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 2 left!

0

7:4

Exmark 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 135-1924-03

Support, Battery Cable

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

10

Exmark 142-2406

Harness-Wire

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$363.99

$

Usually ships in 3-6 days

0

11

Exmark 135-2126

Harness-Battery

$127.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

15

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

16

Exmark 104-3338

SWITCH-DELTA

$59.99

$

In Stock, Qty 8

0

17

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

18

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 109-9274

HARNESS-CLUTCH

$22.99

$

In Stock, only 2 left!

0

20

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

21

Exmark 126-7875

Decal-Fuse

$4.49

$

Usually ships in 3-6 days

0

23

Exmark 256-116

Bushing-Flange

$4.99

$

In Stock, Qty 6

0

99

Exmark 135-7732

Hardware Kit, Battery

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0
