STS730AKC52400 - Exmark 52" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (2019) Deck Assembly Parts Diagram

52" Staris S-Series Stand-On Mower, Koh

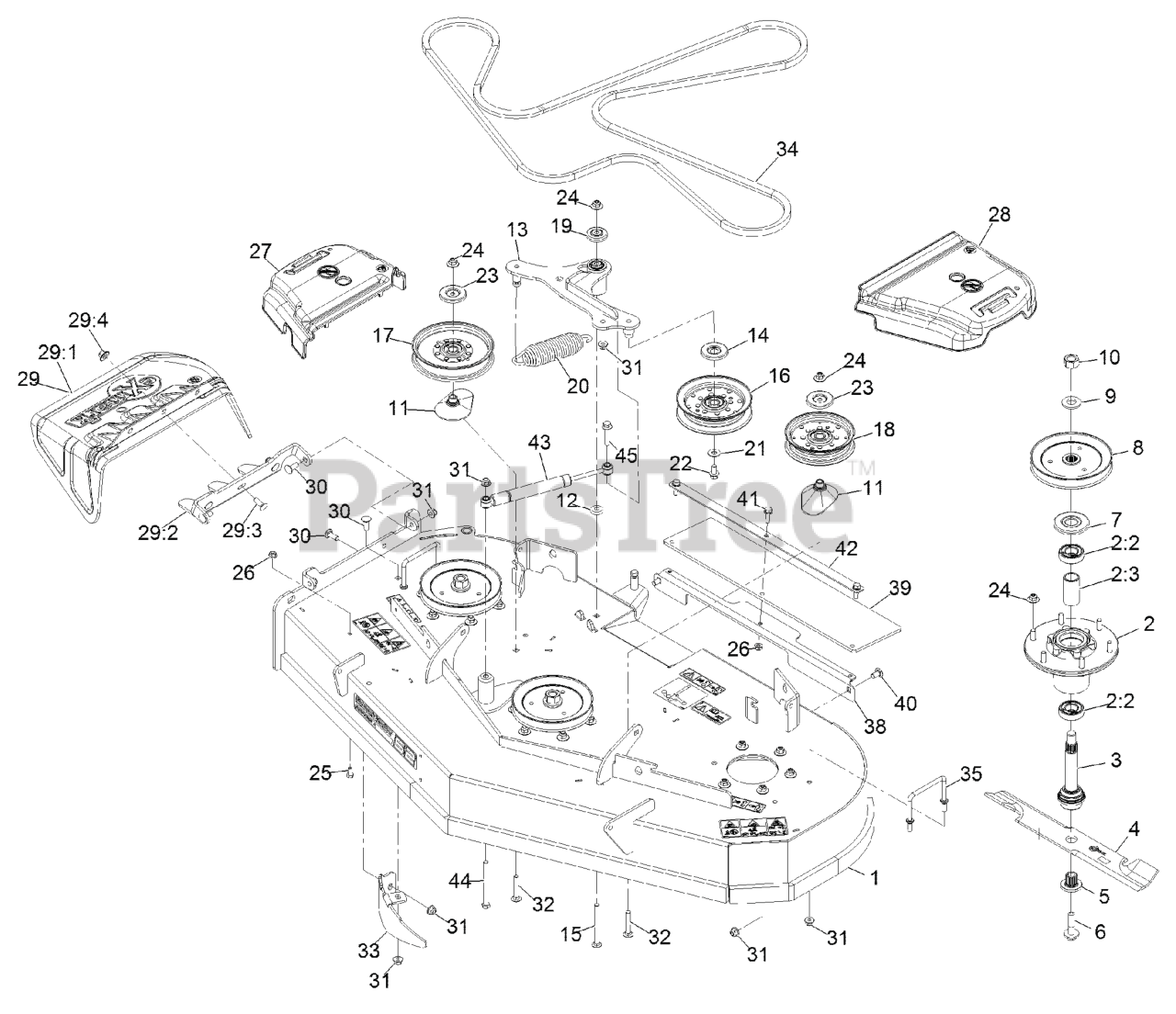

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-1908

ASM, DECK W/ DECALS, 52

$2453.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$172.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 8

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$98.99

$

In Stock, Qty 20+

0

4

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

4

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$39.99

$

In Stock, Qty 8

0

4

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$39.99

$

In Stock, only 4 left!

0

4

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

4

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$34.99

$

In Stock, Qty 20+

0

5

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

6

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

7

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

8

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$112.99

$

In Stock, Qty 11

0

9

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

10

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

11

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

12

Exmark 62-6660

SPACER

$0.99

$

In Stock, Qty 5

0

13

Exmark 135-7394

ASM-DECK IDLER

$279.99

$

Usually ships in 3-6 days

0

14

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

15

Exmark 3231-37

SCREW-CARR

$5.49

$

In Stock, only 1 left!

0

16

Exmark 126-9196

IDLER-PULLEY, FLAT

$67.99

$

In Stock, Qty 10

0

17

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$74.99

$

In Stock, Qty 16

0

18

Exmark 126-9187

PULLEY-IDLER, FLAT

$66.99

$

In Stock, only 1 left!

0

19

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

20

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 19

0

21

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Exmark 110-1718

SCREW-HHF

$2.49

$

In Stock, Qty 20+

0

23

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

24

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 17

0

28

Exmark 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

29

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 12

0

29:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

29:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

29:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

29:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

31

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.99

$

In Stock, Qty 20+

0

33

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$76.99

$

Usually ships in 3-6 days

0

34

Exmark 135-5078

BELT, 5V

$155.99

$

In Stock, only 3 left!

0

35

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

38

Exmark 135-6287-03

BRKT, HEAT DEFLECTOR

$42.99

$

Usually ships in 3-6 days

0

39

Exmark 135-6358

SHIELD, HEAT

$144.99

$

Usually ships in 3-6 days

0

40

Exmark 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

41

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

42

Exmark 135-7122-03

BRKT-HEAT DEFLECTOR, TOP

$17.99

$

Usually ships in 3-6 days

0

43

Exmark 135-7252

DAMPER

$145.99

$

Usually ships in 3-6 days

0

44

Exmark 323-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

45

Exmark 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 5

0
