STS730AKC52400 - Exmark 52" Staris S-Series Stand-On Mower, Koh (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

52" Staris S-Series Stand-On Mower, Koh

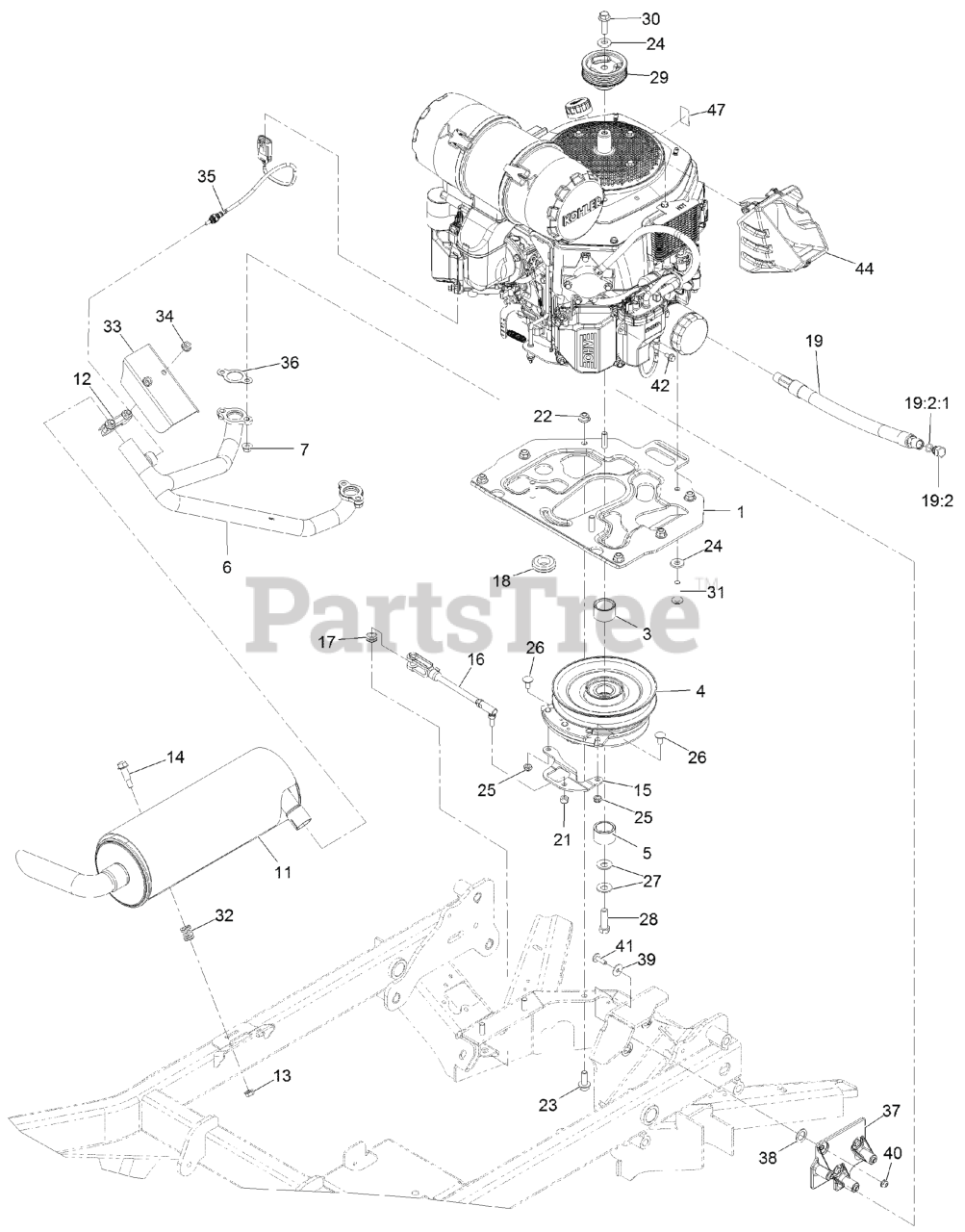

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-1615-03

PLATE, ENGINE

$224.99

$

Usually ships in 3-6 days

0

3

Exmark 135-1925

SPACER, CLUTCH

$7.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5267

USE 142-3587
(Superseded to 142-3587)

$539.99

$

In Stock, only 1 left!

0

5

Exmark 135-1308

SPACER, CLUTCH

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5095

HEADER, KOHLER

$174.99

$

Usually ships in 3-6 days

0

7

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

11

Exmark 135-5093

USE 142-3577
(Superseded to 142-3577)

$383.99

$

Usually ships in 3-6 days

0

12

Exmark 104-4090

CLAMP-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

13

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 8

0

14

Exmark 130-2344

Bolt-Shoulder
(Superseded to 140-3759)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 135-1589

STRAP, CLUTCH

$16.99

$

In Stock, only 3 left!

0

16

Exmark 126-0620

ASM, CLUTCH ANCHOR

$76.99

$

In Stock, only 2 left!

0

17

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

18

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 116-5108

OIL DRAIN HOSE ASM

$43.99

$

Usually ships in 3-6 days

0

19:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

19:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

21

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 6

0

22

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

25

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

26

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

27

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

28

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.99

$

In Stock, Qty 11

0

29

Exmark 135-1198

PULLEY, CRANK

$43.99

$

Usually ships in 3-6 days

0

30

Exmark 135-7890

Screw-HH, Patch

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 126-0983

SCREW-BHTF

$5.99

$

In Stock, only 3 left!

0

32

Exmark 135-6667

SPRING, COMPRESSION

$3.49

$

In Stock, only 2 left!

0

33

Exmark 135-6366

SHIELD, HEAT

$37.99

$

Usually ships in 3-6 days

0

34

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 8

0

35

Exmark 135-6594

SENSOR, MINI O2

$346.99

$

Usually ships in 3-6 days

0

36

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

37

Exmark 136-6346

Bracket-Pump, Fuel

$20.99

$

Usually ships in 3-6 days

0

38

Exmark 121-6840

Washer-Rubber

$1.49

$

In Stock, Qty 5

0

39

Exmark 3256-67

WASHER

$0.99

$

In Stock, only 4 left!

0

40

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Exmark 126-6269

SCREW-TRUSS

$1.99

$

Usually ships in 3-6 days

0

42

Exmark 33103-012

SCREW-HHF

$5.99

$

In Stock, only 1 left!

0

43

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

44

Exmark 135-7376

Duct Half, Rear

$

$

Currently unavailable

47

Exmark 135-6844

DECAL-10W-50 OIL

$3.49

$

Usually ships in 3-6 days

0
