TR40808R25E - Toro 8" x 48" Rock and Frost Chain, Utility Trencher 8 Inch x 48 Inch Rock and Frost Chain Assembly Parts Diagram

8" x 48" Rock and Frost Chain, Utility Trencher

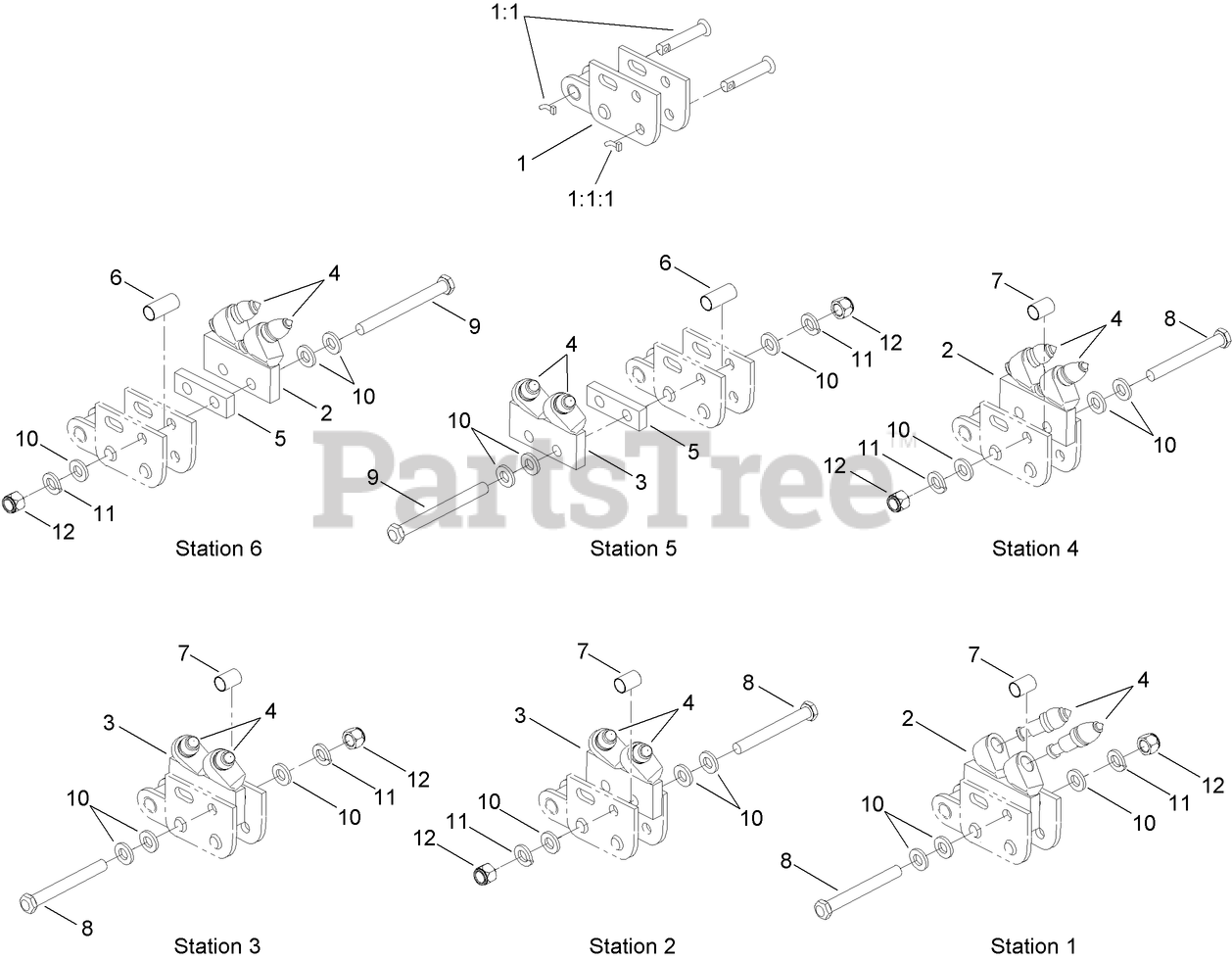

8 Inch x 48 Inch Rock and Frost Chain Assembly Parts Diagram

  • Title

1

Toro 131-6259

CHAIN REPAIR LINK ASM

$376.99

$

Usually ships in 3-6 days

0

1:1

Toro 131-6260

NOTCHED PIN AND KEEPER ASM

$50.99

$

Usually ships in 3-6 days

0

1:1:1

Toro 131-6261

PIN-KEEPER

$2.49

$

Usually ships in 3-6 days

0

2

Toro 131-1255

HOLDER-BIT, LH

$162.99

$

Usually ships in 3-6 days

0

3

Toro 131-1256

HOLDER-BIT, RH

$162.99

$

Usually ships in 3-6 days

0

4

Toro 131-1440

BIT-RETAINER, REAR

$

$

Currently unavailable

5

Toro 131-1260

SPACER-FLAT

$

$

Currently unavailable

6

Toro 131-1263

SPACER-TUBE, OUTSIDE MOUNT

$

$

Currently unavailable

7

Toro 131-1261

SPACER-TUBE, INSIDE ADAPTER, HD

$12.99

$

Usually ships in 3-6 days

0

8

Toro 131-1417

BOLT-HH

$16.99

$

Usually ships in 3-6 days

0

9

Toro 131-1419

BOLT-HH

$19.99

$

Usually ships in 3-6 days

0

10

Toro 131-1420

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 131-1422

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro 131-1421

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0
