TT-1800 - Exmark Turf Tracer 1800 Walk-Behind Mower, Kohler MV18S (1988) Upper Handle & Controls Group Parts Diagram

Turf Tracer 1800 Walk-Behind Mower, Kohler MV18S

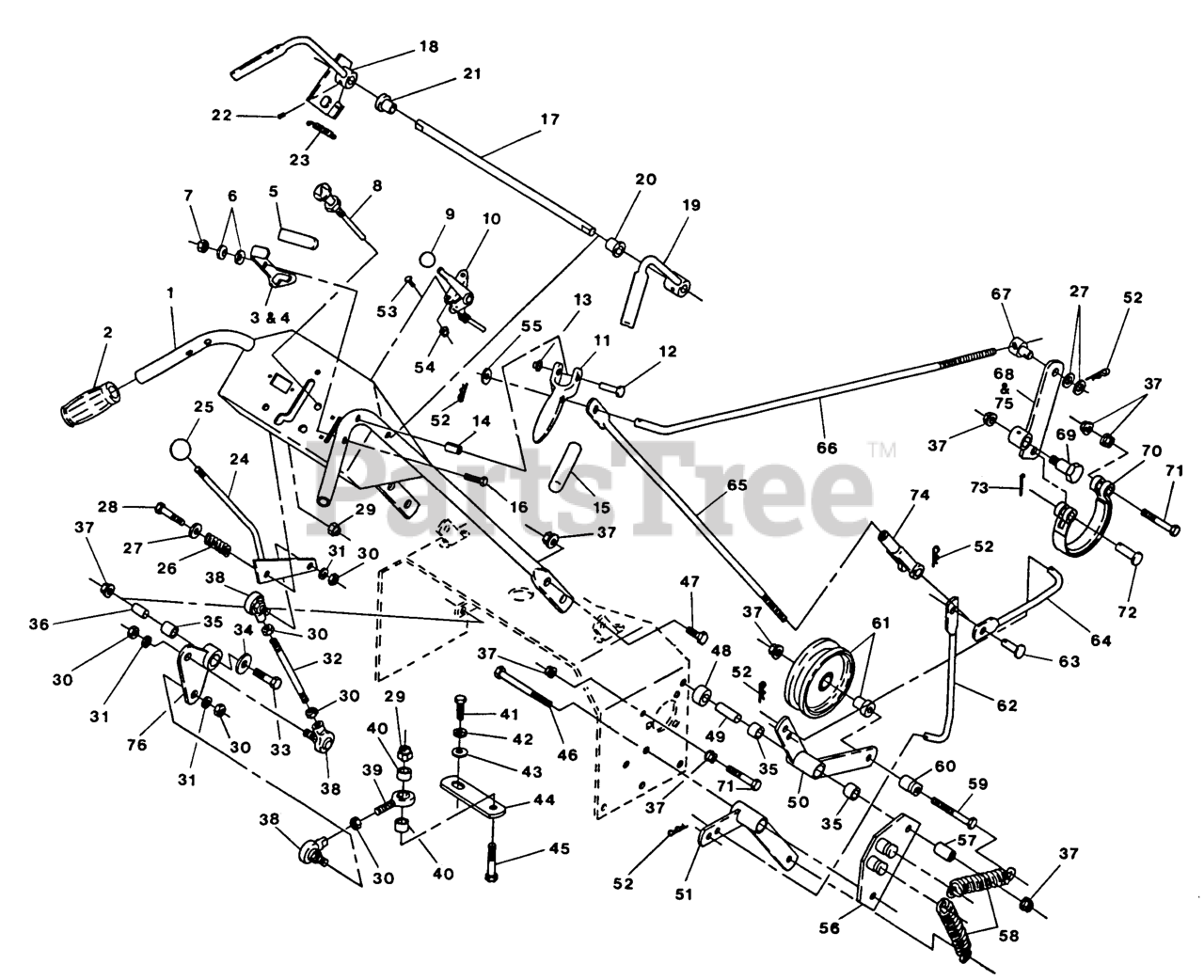

Upper Handle & Controls Group Parts Diagram

  • Title

1

Exmark 1-602462-03

103-0228
(Superseded to 103-0228)

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-303301

1-302005
(Superseded to 1-302005)

$

$

Not available

4

Exmark 1-303302

1-302007
(Superseded to 1-302007)

Note: (Not Shown)

$

$

Not available

5

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, only 2 left!

0

6

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

7

Exmark 1-803011

NUTTORQUE ZNKPLT

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 1-603336

CONTROL-CHOKE

$44.99

$

In Stock, Qty 13

0

9

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

10

Exmark 1-603199

1-613247
(Superseded to 1-613247)

$

$

Not available

11

Exmark 1-303176

1-302006
(Superseded to 1-302006)

$63.99

$

In Stock, Qty 7

0

12

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

13

Exmark 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-806340

PIN-ROLL
(Superseded to 1-806340)

$5.99

$

In Stock, Qty 8

0

15

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-800256

321-9
(Superseded to 321-9)

$5.49

$

In Stock, only 3 left!

0

17

Exmark 1-303364

ROD,CONNECTING

$

$

Not available

18

Exmark 1-602507-03

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-302138-03

1-412185-03
(Superseded to 1-412185-03)

$91.99

$

In Stock, only 3 left!

0

20

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

21

Exmark 1-303369

BUSHING,FLANGED

$

$

Not available

22

Exmark 1-803300

3245-35
(Superseded to 3245-35)

$0.99

$

In Stock, Qty 8

0

23

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

24

Exmark 1-602456

106-2748
(Superseded to 106-2748)

$127.99

$

In Stock, only 2 left!

0

25

Exmark 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

26

Exmark 1-603325

1-323245
(Superseded to 1-323245)

$7.49

$

In Stock, Qty 20+

0

27

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, only 4 left!

0

29

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

32

Exmark 1-603436

DISCONTINUED (EXMARK)

$

$

Not available

33

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

34

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

35

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

36

Exmark 1-603369

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-513132

BALLJOINT

$53.99

$

Usually ships in 3-6 days

0

39

Exmark 1-603372

2411-52
(Superseded to 2411-52)

$41.99

$

Usually ships in 3-6 days

0

40

Exmark 1-603500

SPACER-PLATED

$13.99

$

Usually ships in 3-6 days

0

41

Exmark 1-800504

DISCONTINUED

$

$

Not available

42

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

43

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

44

Exmark 1-603460

DISCONTINUED

$

$

Not available

45

Exmark 1-800276

322-9
(Superseded to 322-9)

$3.99

$

In Stock, Qty 20+

0

46

Exmark 1-800307

DISCONTINUED (EXMARK)

$

$

Not available

47

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

48

Exmark 1-603424

DISCONTINUED (EXMARK)

$

$

Not available

49

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

50

Exmark 1-602377-01

1-602517
(Superseded to 1-602517)

$

$

Not available

51

Exmark 1-602376-01

DISCONTINUED

$

$

Not available

52

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

53

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

55

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

56

Exmark 1-602450

$

$

Currently unavailable

57

Exmark 1-603401

SPACER

$7.49

$

In Stock, Qty 20+

0

58

Exmark 1-603402

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

59

Exmark 1-800300

323-14
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

60

Exmark 1-603422

ANCHOR-SPRING PLTD

$16.99

$

Usually ships in 3-6 days

0

61

Exmark 1-602501

KIT,48 RH IDLER/BUS

$

$

Not available

62

Exmark 1-603446

DISCONTINUED (EXMARK)

$

$

Not available

63

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

64

Exmark 1-603444

DISCONTINUED (EXMARK)

$

$

Not available

65

Exmark 1-603388

$

$

Currently unavailable

66

Exmark 1-323089

LINKAGE,BRAKE

$

$

Not available

67

Exmark 1-303168

SWIVEL,SHORT ADJUSTING

$

$

Not available

68

Exmark 1-602390-01

DISCONTINUED

$

$

Not available

69

Exmark 1-603403

BOLT-SHOULDER

$18.99

$

Usually ships in 3-6 days

0

70

Exmark 1-603150

DISCONTINUED

$

$

Not available

71

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

72

Exmark 1-603404

DISCONTINUED (EXMARK)

$

$

Not available

73

Exmark 1-806755

DISCONTINUED (EXMARK)

$

$

Not available

74

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

75

Exmark 1-602389-01

DISCONTINUED

Note: (Not Shown)

$

$

Not available

76

Exmark 1-602432

1-602522
(Superseded to 1-602522)

$

$

Not available
