TT3615KAC - Exmark 36" Turf Tracer HP Walk-Behind Mower, 15hp Kawasaki (SN: 370000 - 439999) (2003) Engine Deck Group (Cont.) Parts Diagram

36" Turf Tracer HP Walk-Behind Mower, 15hp Kawasaki

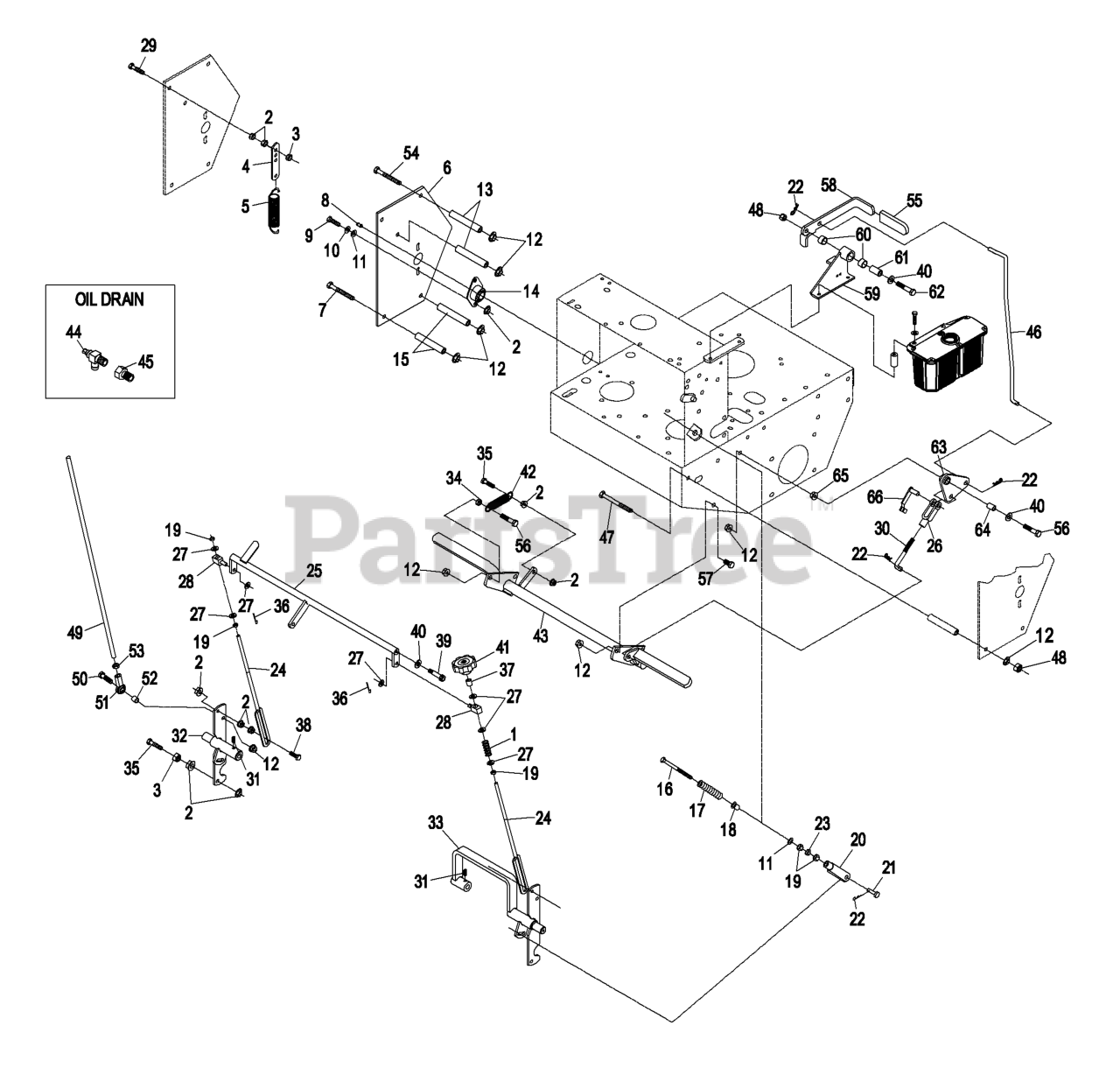

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-613089

TAB-SPRING, EXTENSION

$11.99

$

In Stock, Qty 5

0

5

Exmark 1-603693

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

6

Exmark 1-413201-01

110-4897-01
(Superseded to 110-4897-01)

$116.99

$

Usually ships in 3-6 days

0

7

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

11

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

12

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-323195-01

SPACER-SHIELD

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 1-633102

BEARING-FLANGE, SIDE

$21.99

$

In Stock, only 3 left!

0

15

Exmark 1-323197-01

SPACER-SHIELD

$8.99

$

In Stock, Qty 9

0

16

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, Qty 6

0

17

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$6.99

$

In Stock, only 2 left!

0

18

Exmark 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, only 2 left!

0

19

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, Qty 7

0

21

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

23

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 19

0

24

Exmark 1-413350

LINK-CONTROL, SPEED

$17.99

$

In Stock, Qty 6

0

25

Exmark 1-412203

1-412203-01
(Superseded to 1-412203-01)

$176.99

$

Usually ships in 3-6 days

0

30

Exmark 1-413489

LINKAGE-LOWER

$25.99

$

In Stock, only 3 left!

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.99

$

In Stock, Qty 14

0

29

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

31

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads.

$2.99

$

In Stock, Qty 20+

0

32

Exmark 103-1190-01

SHAFT-CONTROL, LH

$198.99

$

Usually ships in 3-6 days

0

33

Exmark 103-1191-01

DISCONTINUED

$

$

Not available

34

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

35

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

36

Exmark 3272-5

PIN-COTTER

$1.99

$

In Stock, Qty 11

0

37

Exmark 1-603903

SPACER

$5.99

$

In Stock, Qty 10

0

38

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads.

$8.49

$

In Stock, Qty 9

0

40

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-413151

KNOB-TRACKING

$9.99

$

In Stock, Qty 7

0

42

Exmark 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

0

43

Exmark 103-2085-03

126-1599
(Superseded to 126-1599)

$196.99

$

Usually ships in 3-6 days

0

Exmark 103-2004-03

116-9964
(Superseded to 116-9964)

$196.99

$

Usually ships in 3-6 days

0

44

Exmark 103-1965

VALVE-DRAIN, OIL

Note: Use Teflon Pipe Sealant or equivalent between oil drain valve and adapter.

$62.99

$

Usually ships in 3-6 days

0

45

Exmark 103-1966

ADAPTER

$19.99

$

In Stock, only 2 left!

0

46

Exmark 1-413492

LINKAGE,UPPER- TTHP

$71.99

$

In Stock, only 2 left!

0

47

Exmark 323-23

SCREW-HH

Note: Manual start only

$5.99

$

In Stock, Qty 20+

0

Exmark 323-16

SCREW-HH

Note: Electric start only

$3.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

Note: Manual start only

$2.99

$

In Stock, Qty 20+

0

Exmark 3296-39

NUT-LOCK, NI

Note: Electric start only

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-1148

LINK,DRIVE (PLTD)

$23.99

$

In Stock, only 1 left!

0

50

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Exmark 103-1167

JOINT-BALL END, LH

$36.99

$

In Stock, only 4 left!

0

52

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$7.49

$

In Stock, only 1 left!

0

53

Exmark 3220-16

NUT-HEX JAM, LH

$2.49

$

In Stock, only 2 left!

0

54

Exmark 323-16

SCREW-HH

Note: Manual start only

$3.49

$

In Stock, Qty 20+

0

Exmark 323-23

SCREW-HH

Note: Electric start only

$5.99

$

In Stock, Qty 20+

0

55

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

58

Exmark 1-412501-03

116-1725-03
(Superseded to 116-1725-03)

$28.99

$

Usually ships in 3-6 days

0

59

Exmark 1-414504

BRACKET ASM

$98.99

$

In Stock, only 1 left!

0

60

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 14

0

61

Exmark 1-413344

BUSHING-PIVOT

$21.99

$

In Stock, only 2 left!

0

62

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

63

Exmark 1-414508

BELLCRANK ASM

$70.99

$

Usually ships in 3-6 days

0

64

Exmark 1-303548

BUSHING-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

65

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

66

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.99

$

In Stock, Qty 20+

0
