TT3615KC - Exmark 36" Turf Tracer Hydro Walk-Behind Mower, 15hp Kohler (SN: 130000 - 149999) (1997) 48" Mower Deck Parts Diagram

36" Turf Tracer Hydro Walk-Behind Mower, 15hp Kohler

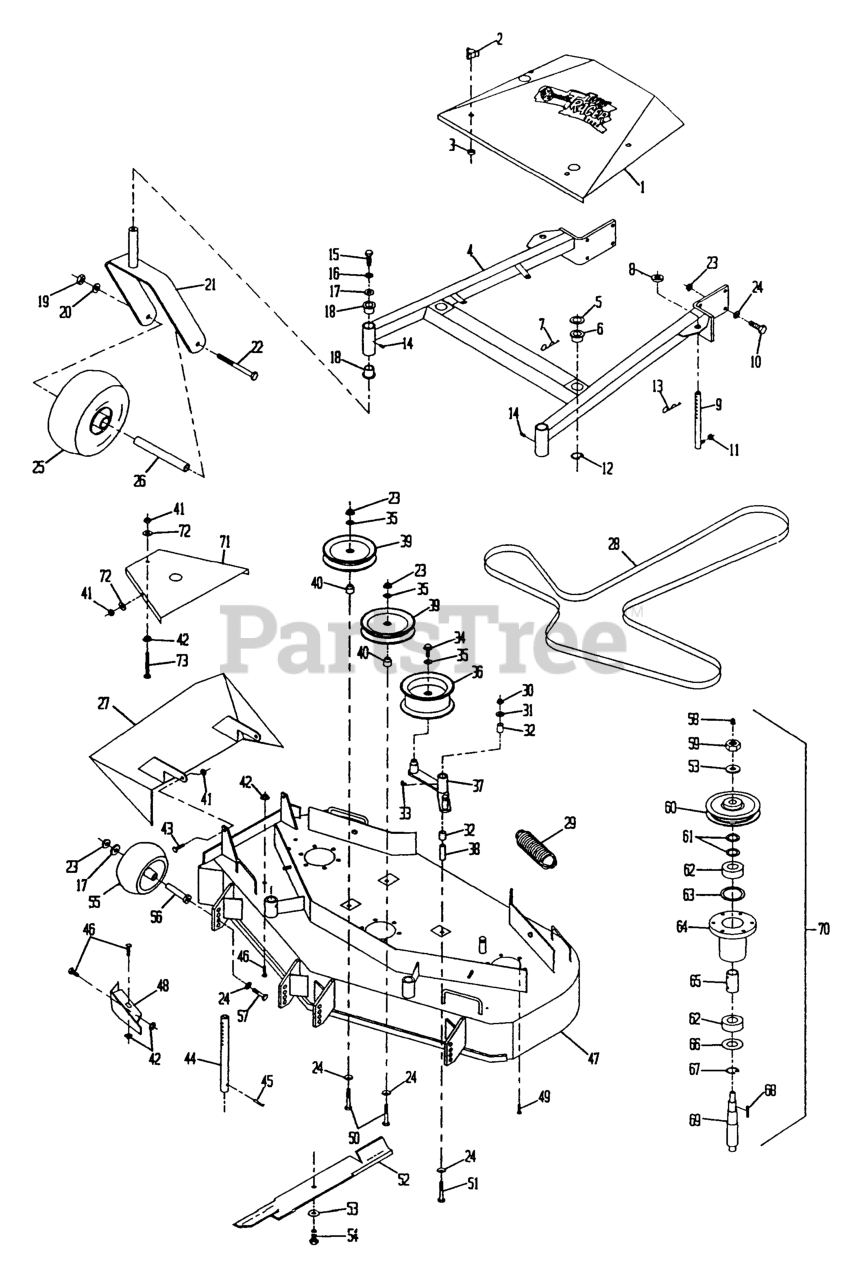

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-414387

116-2711
(Superseded to 116-2711)

$406.99

$

In Stock, only 1 left!

0

Exmark 1-413101

116-2711
(Superseded to 116-2711)

$406.99

$

In Stock, only 1 left!

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

4

Exmark 1-414310

DECK SUPPORT W/BSHGS 48"

$1427.99

$

Usually ships in 3-6 days

0

Exmark 1-412110

1-414310
(Superseded to 1-414310)

$1427.99

$

Usually ships in 3-6 days

0

5

Exmark 1-513338

WASHER-FLAT

$4.99

$

In Stock, Qty 20+

0

6

Exmark 1-513336

BUSHING-DECK

$27.99

$

In Stock, Qty 20+

0

7

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-603540

1-411532
(Superseded to 1-411532)

$173.99

$

In Stock, only 3 left!

0

10

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

11

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

12

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.99

$

In Stock, Qty 20+

0

13

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 1-811001

302-52
(Superseded to 302-52)

$7.49

$

In Stock, Qty 19

0

15

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 12

0

17

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

19

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$108.99

$

In Stock, only 2 left!

0

22

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 10

0

23

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

25

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$141.99

$

In Stock, Qty 18

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$141.99

$

In Stock, Qty 18

0

Exmark 1-513808

TIRE

$54.99

$

In Stock, only 1 left!

0

Exmark 1-513809

BEARING

$39.99

$

In Stock, Qty 13

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

26

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

27

Exmark 1-522478-01

103-2431-01
(Superseded to 103-2431-01)

$179.99

$

In Stock, only 1 left!

0

28

Exmark 1-413093

BELT - V, B

$157.99

$

In Stock, Qty 20+

0

29

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

30

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

33

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.99

$

In Stock, Qty 20+

0

34

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

35

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$75.99

$

In Stock, Qty 19

0

37

Exmark 1-412126

1-414398
(Superseded to 1-414398)

$

$

Not available

Exmark 1-414142

1-414398
(Superseded to 1-414398)

$

$

Not available

38

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

39

Exmark 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

40

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

41

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

42

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$55.99

$

In Stock, only 2 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

46

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

47

Exmark 1-414384

ASM,DECK W/DECALS TTHP/MH

$

$

Not available

48

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$33.99

$

In Stock, only 1 left!

0

49

Exmark 1-809035

SCRW,TPTTE HH
(Superseded to 126-1696)

$1.49

$

In Stock, only 3 left!

0

50

Exmark 1-800299

323-13
(Superseded to 323-13)

$4.49

$

In Stock, Qty 20+

0

51

Exmark 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

52

Exmark 1-323515

103-6583-S
(Superseded to 103-6583-S)

$35.99

$

In Stock, Qty 20+

0

Exmark 1-403148

103-6581-S
(Superseded to 103-6581-S)

Note: Requires Installation Of Micro-Mulch Accessory For Proper Mulching. Mulch Kit P/N Mk483 (48")

$37.99

$

In Stock, Qty 7

0

Exmark 1-403149

103-6738-S
(Superseded to 103-6738-S)

Note: Optional

$39.99

$

In Stock, only 4 left!

0

53

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

54

Exmark 1-800340

103-1026
(Superseded to 103-1026)

$5.99

$

In Stock, only 4 left!

0

55

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

56

Exmark 1-603602

BUSHING-ROLLER

$26.99

$

In Stock, Qty 20+

0

57

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.99

$

In Stock, Qty 20+

0

58

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

59

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

60

Exmark 1-413029

SHEAVE,W/HUB 5.72

$96.99

$

Usually ships in 3-6 days

0

61

Exmark 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

62

Exmark 1-303543

BEARING,HD SPINDLE

$46.99

$

In Stock, Qty 15

0

63

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 17

0

64

Exmark 1-413314

HOUSING,BEARING

$226.99

$

Usually ships in 3-6 days

0

65

Exmark 1-513188

SPACER,BEARING

$23.99

$

In Stock, Qty 6

0

66

Exmark 1-513193

SEAL,MECHANICAL DUST

$7.49

$

In Stock, Qty 16

0

67

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.99

$

In Stock, only 4 left!

0

68

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

0

69

Exmark 1-413035

DISCONTINUED

$

$

Not available

70

Exmark 1-414172

DISCONTINUED

$

$

Not available

71

Exmark 1-523471-01

103-2970-01
(Superseded to 103-2970-01)

$42.99

$

In Stock, only 1 left!

0

72

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

73

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 1 left!

0

Exmark MK483

Mulch Kit

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$37.99

$

In Stock, Qty 9

0
